A vintage DIY 6802 microcomputer system built by the 'hp Micro Computer Club' in the 1980-ies.
This was a gift from a friend. I got i running long time ago and until now it was collecting dust in the attic...
Maybe at some time i will get to revive it and get it running again. As a first step i looked what is there and took some photos.
Next step will be dedusting and cleaning it up ;-)

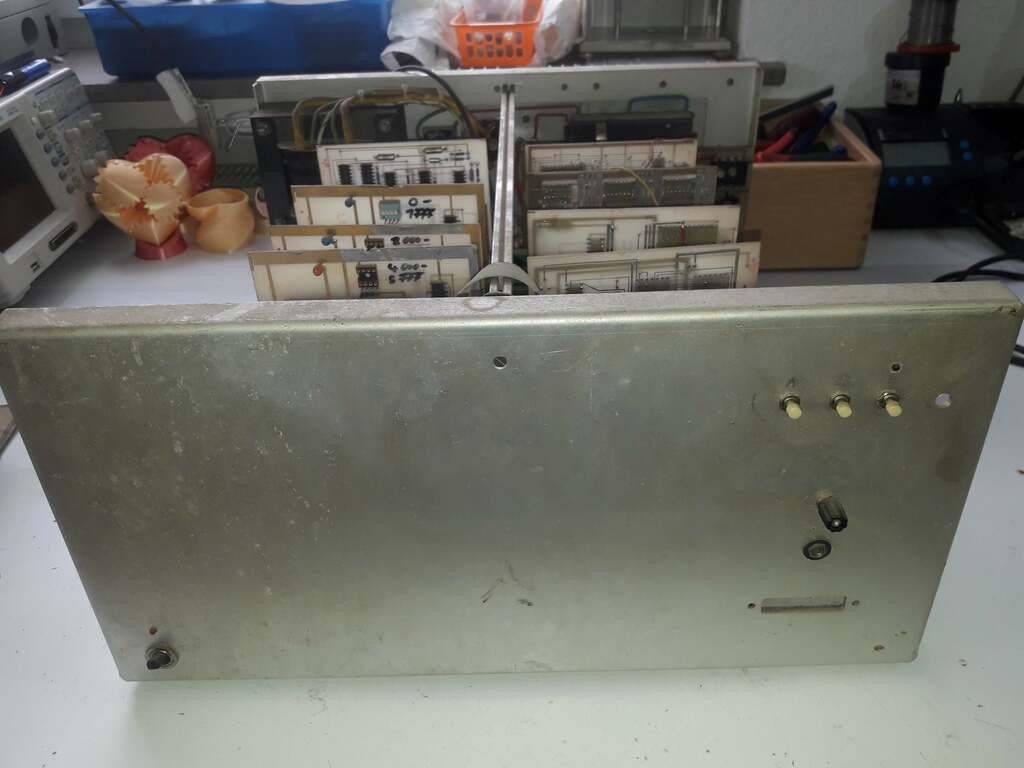

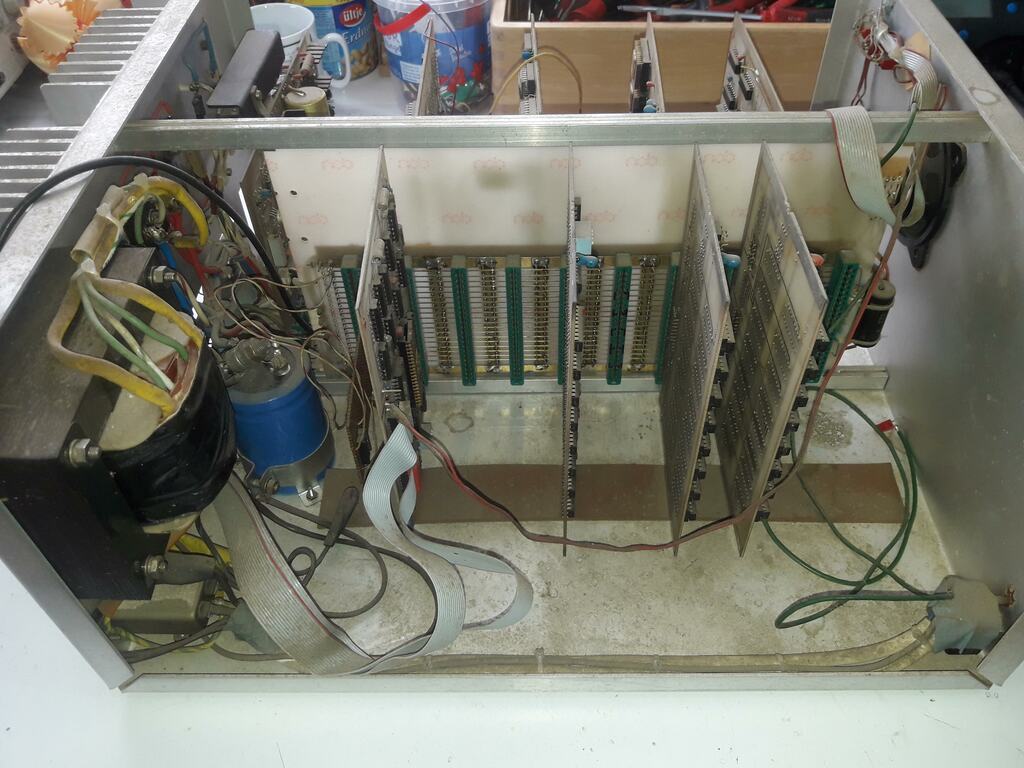

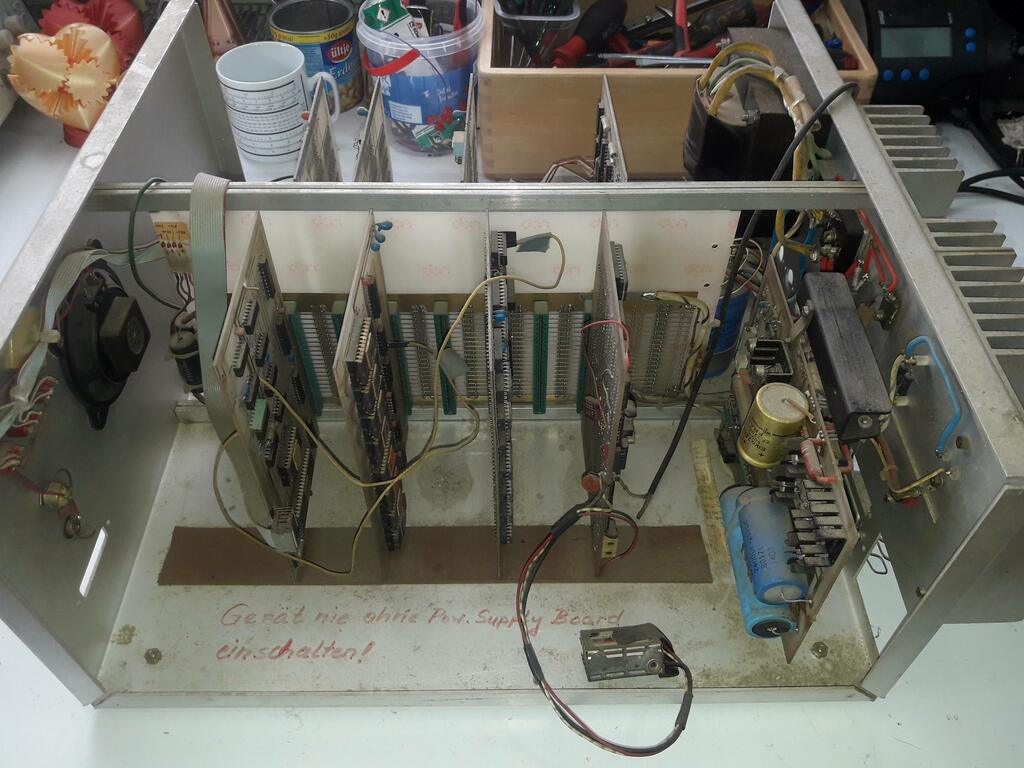

6802 computer club system, 1 MHz bus clock.

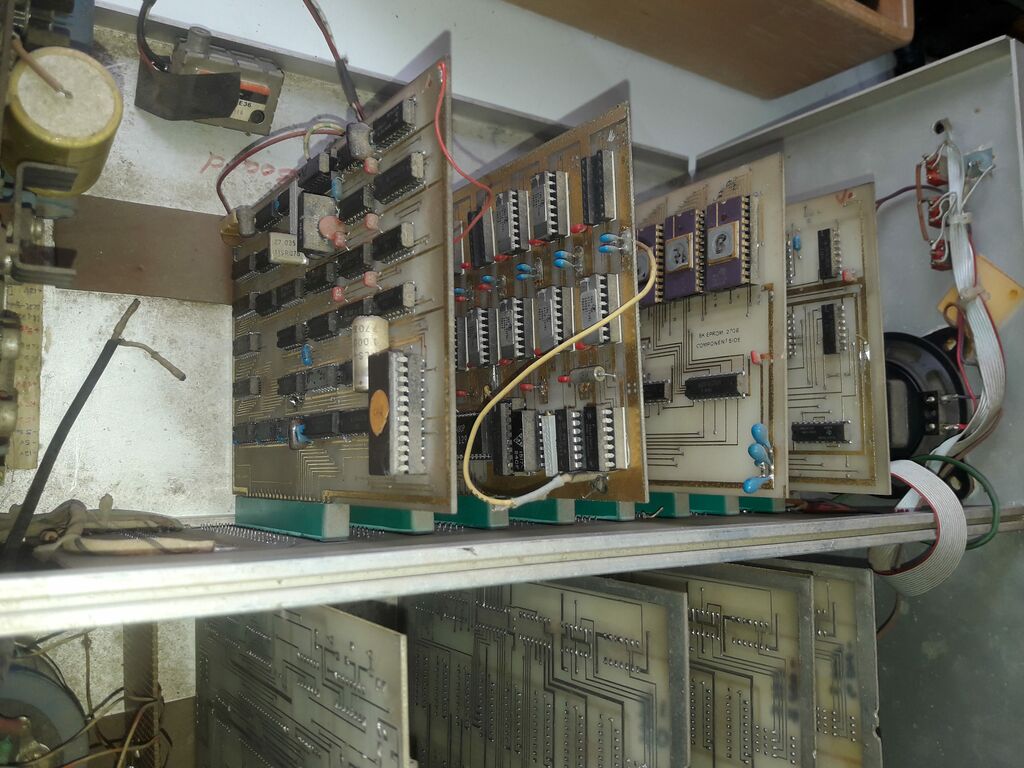

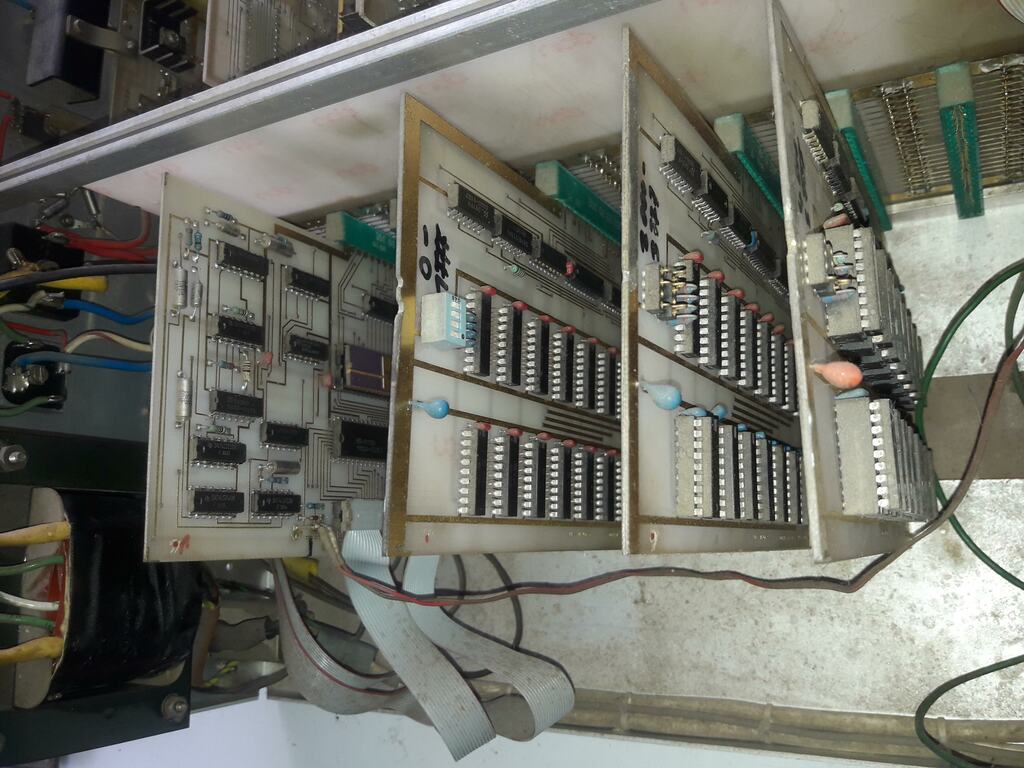

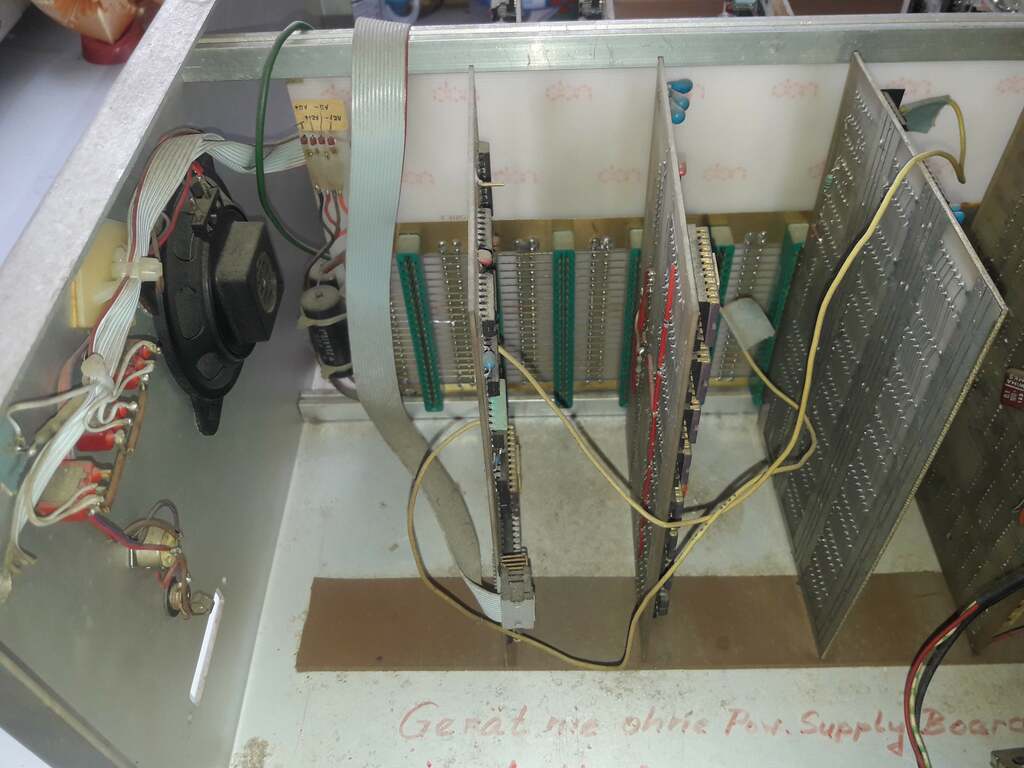

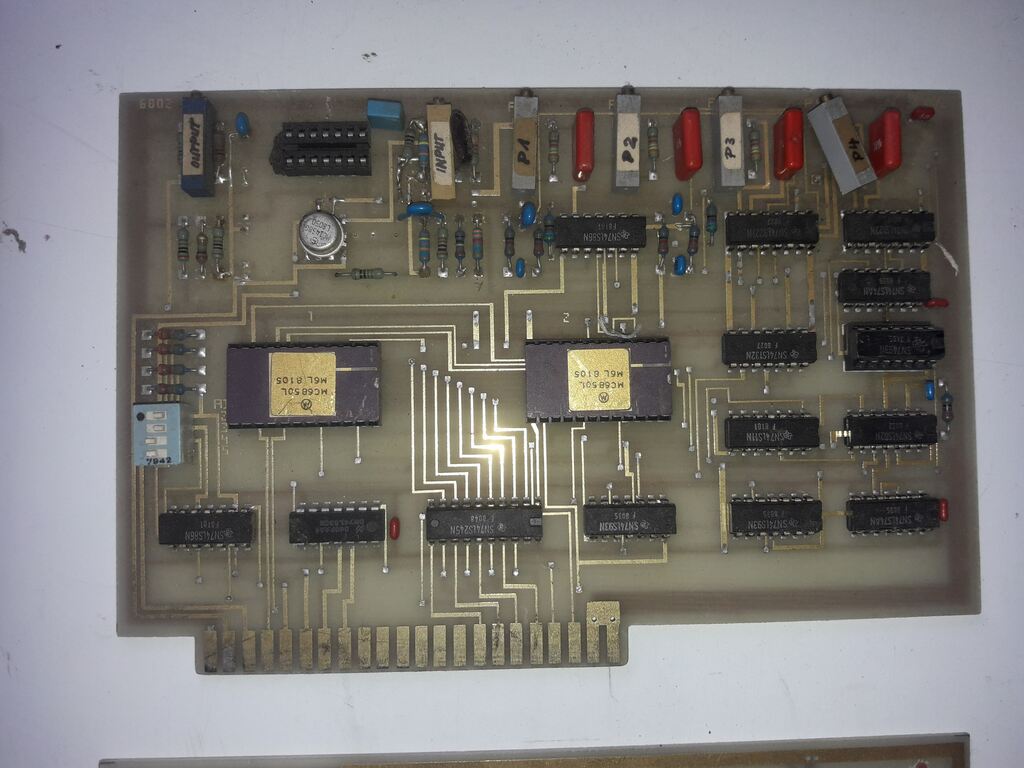

Boards from left to right:

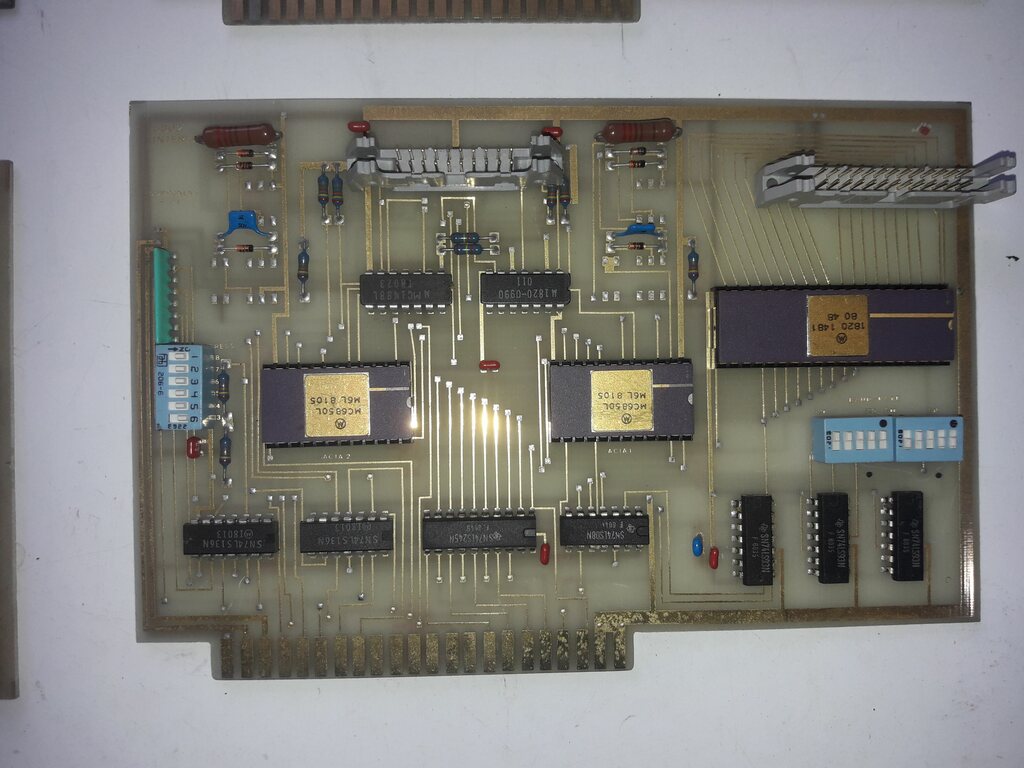

- CPU board

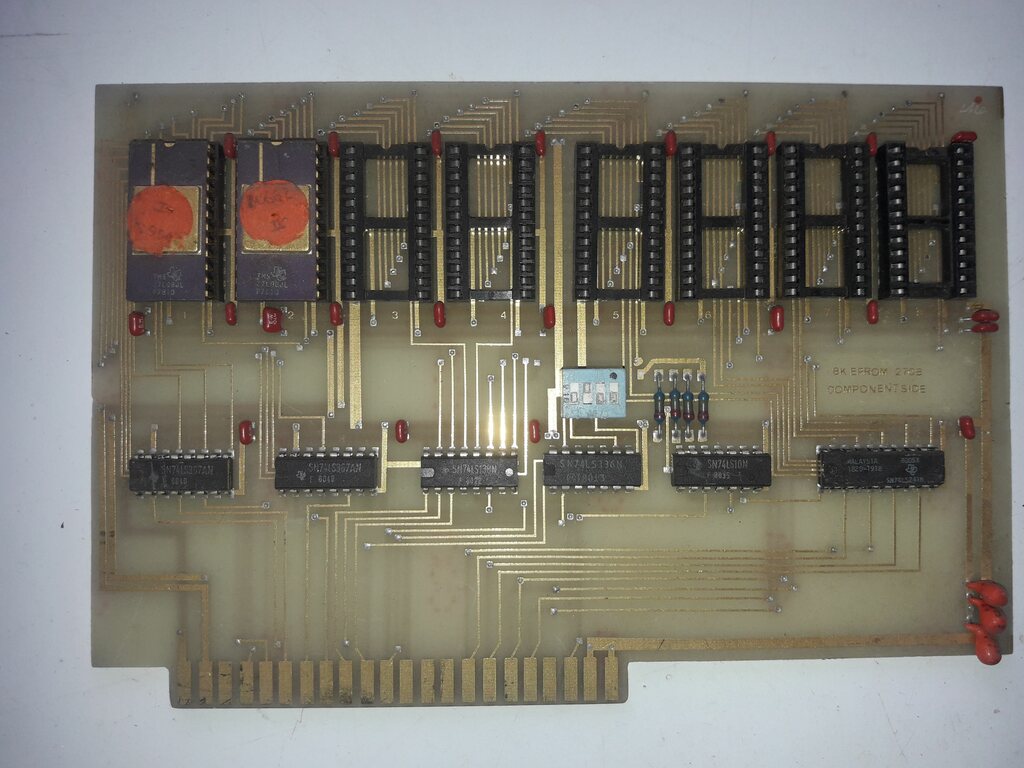

- EProm board
- RAM board
- TV interface board
- Power supply PCB

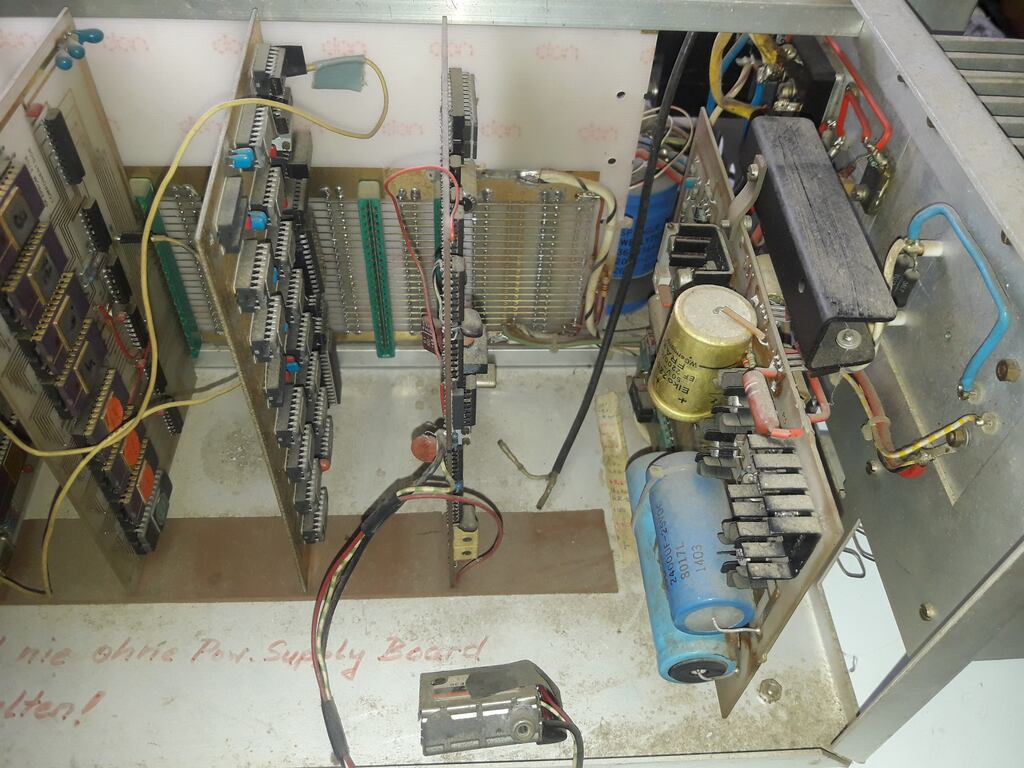

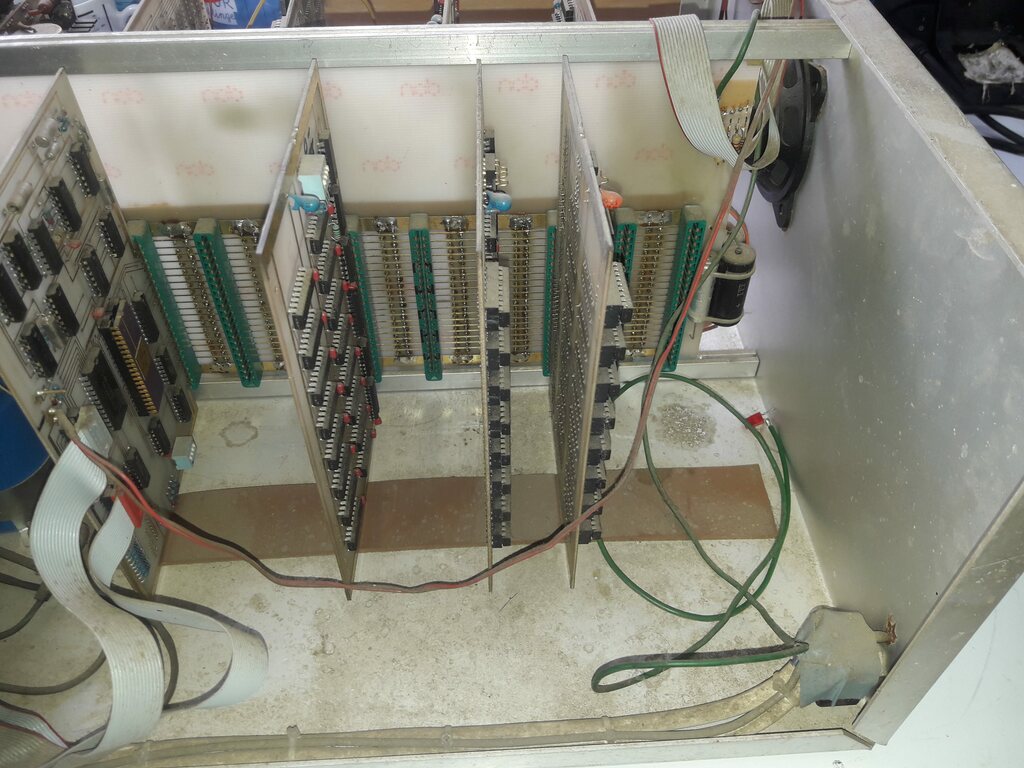

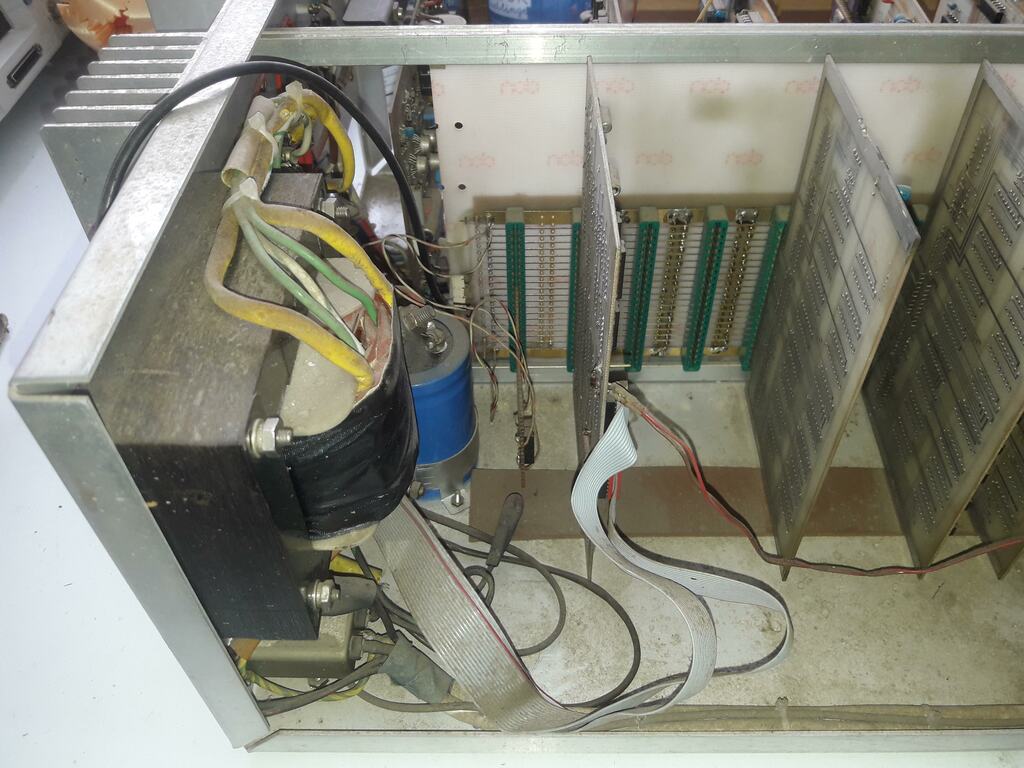

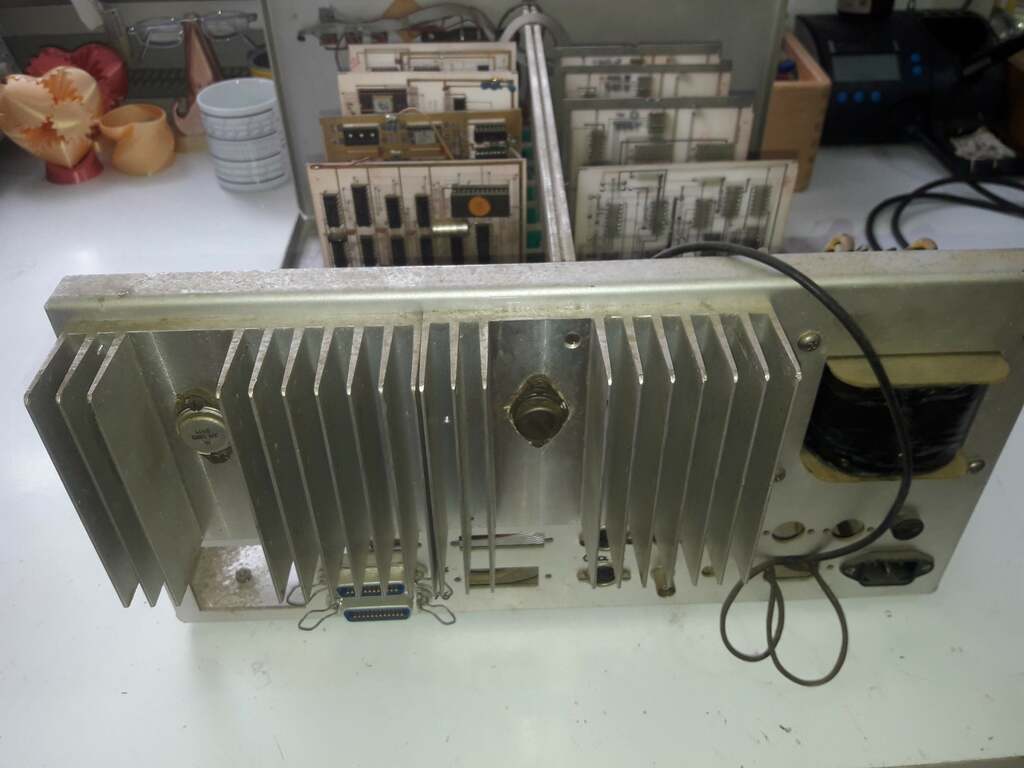

On the other side:

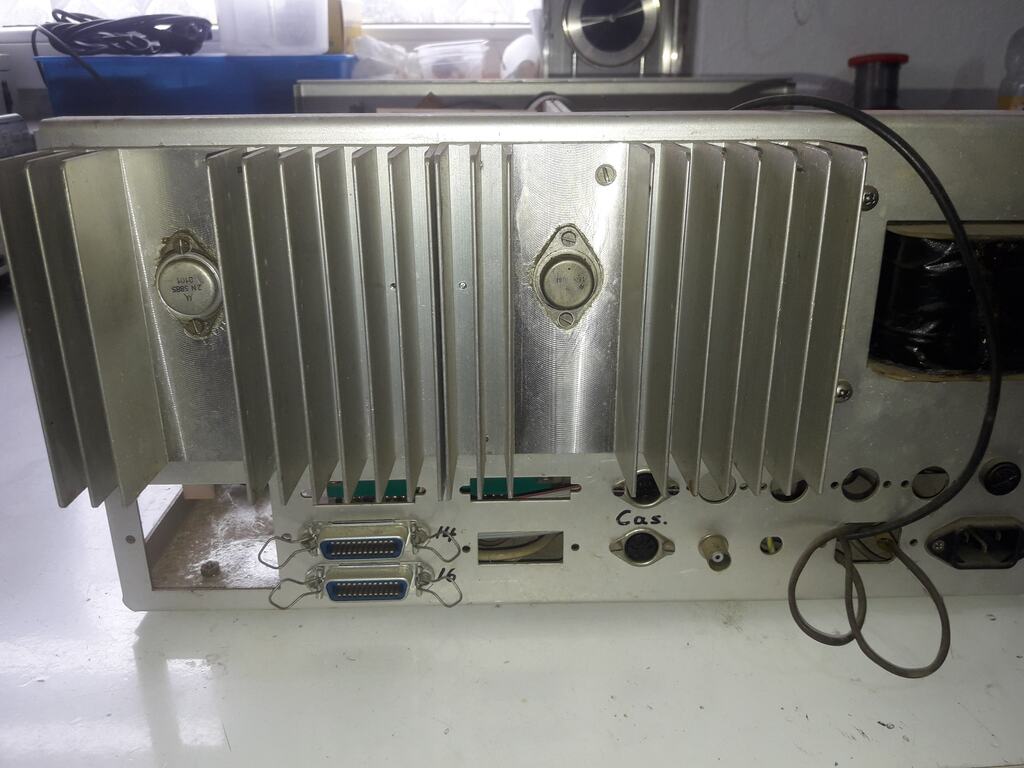

- Power supply transformer and other power supply parts (big cap)
- Keyboard interface board
- Additional ram boards

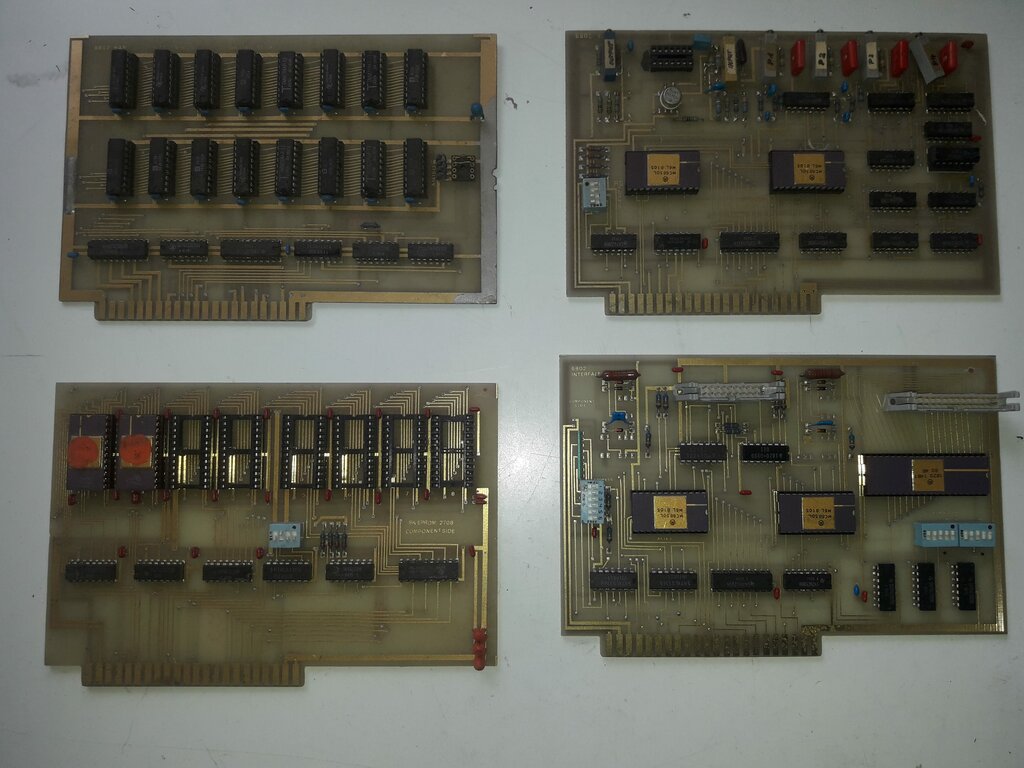

Some additional boards, not installed.

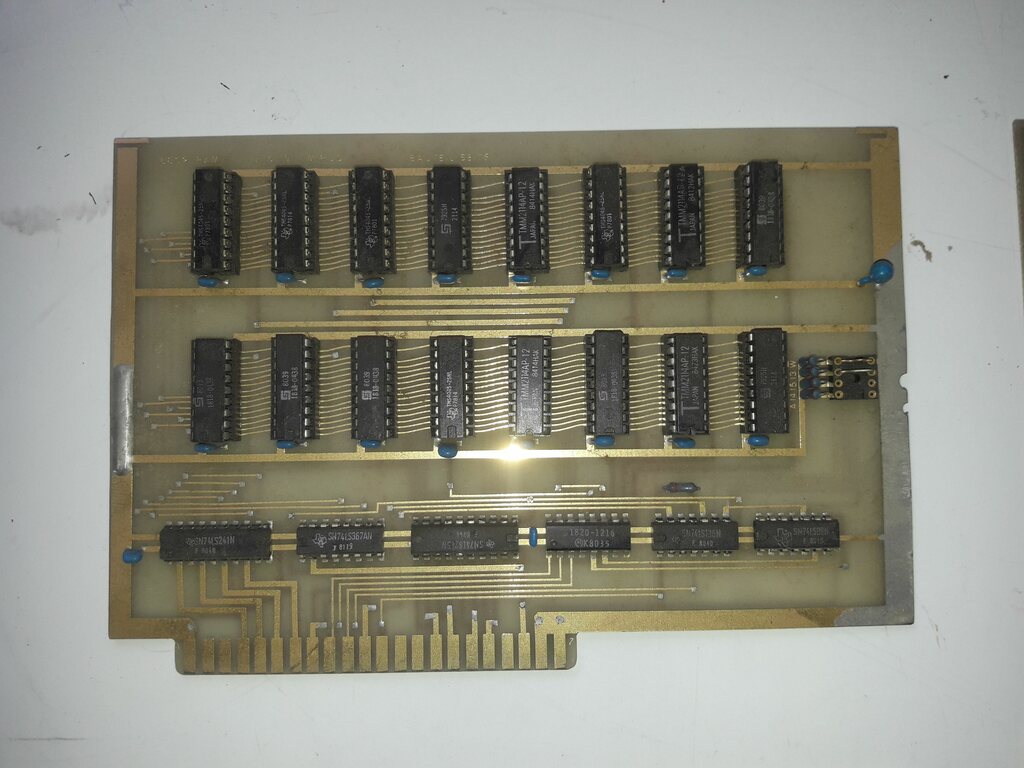

- RAM board
- EPROM board
- Cassette Interface board
- 'General IO' Interface board

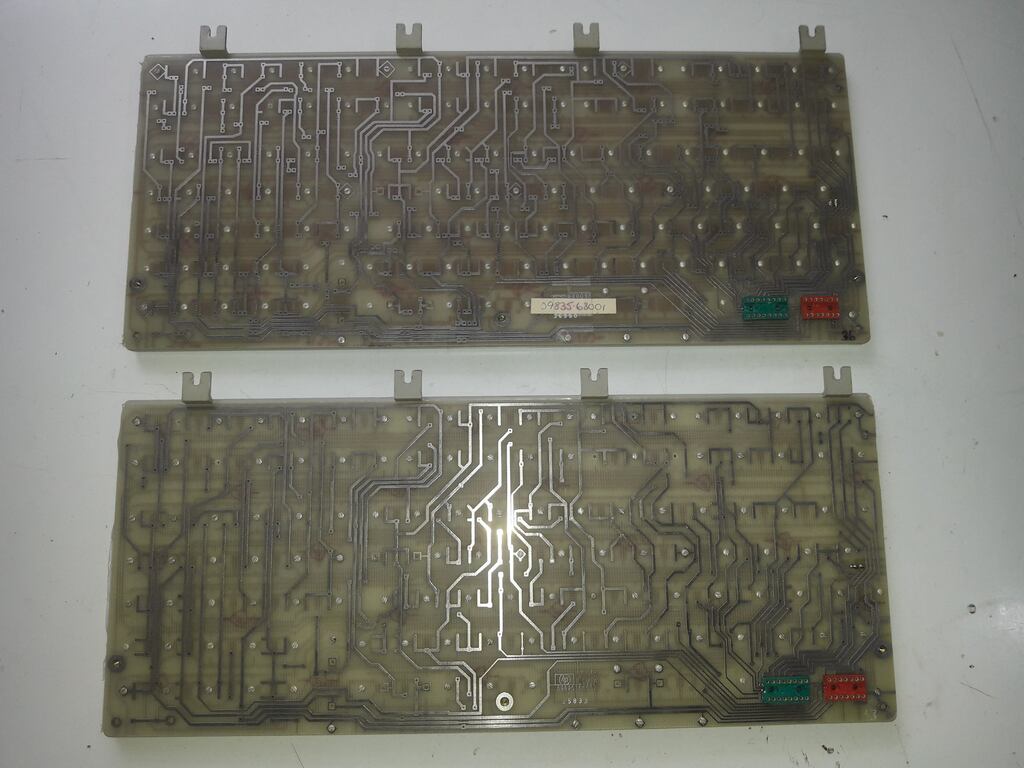

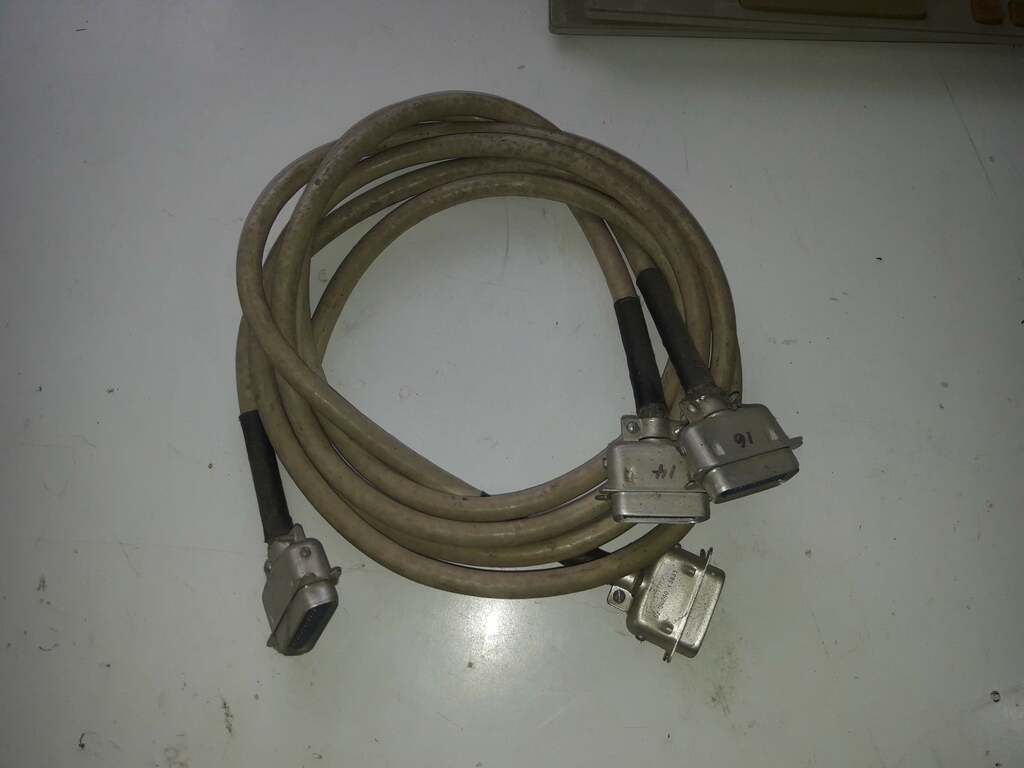

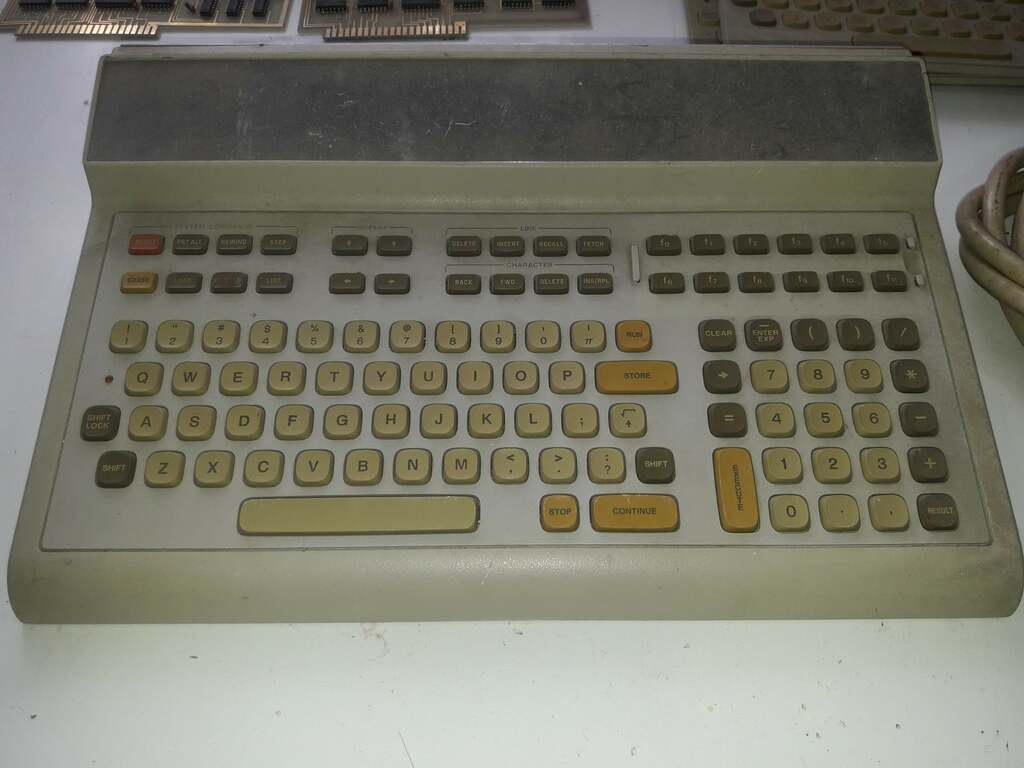

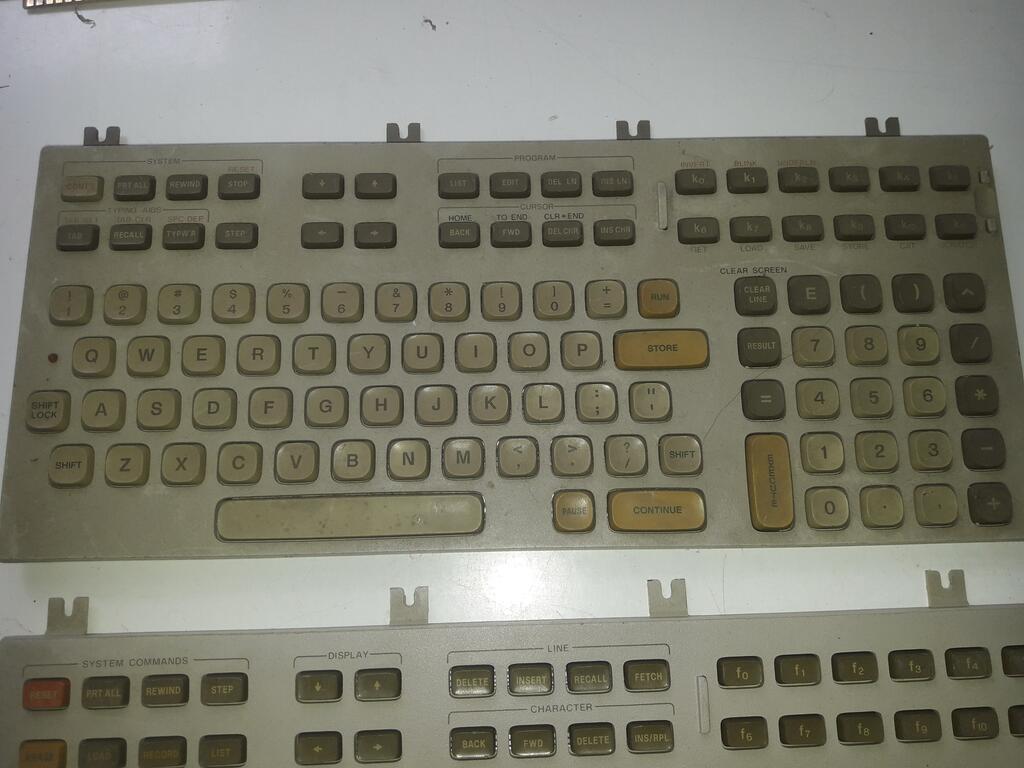

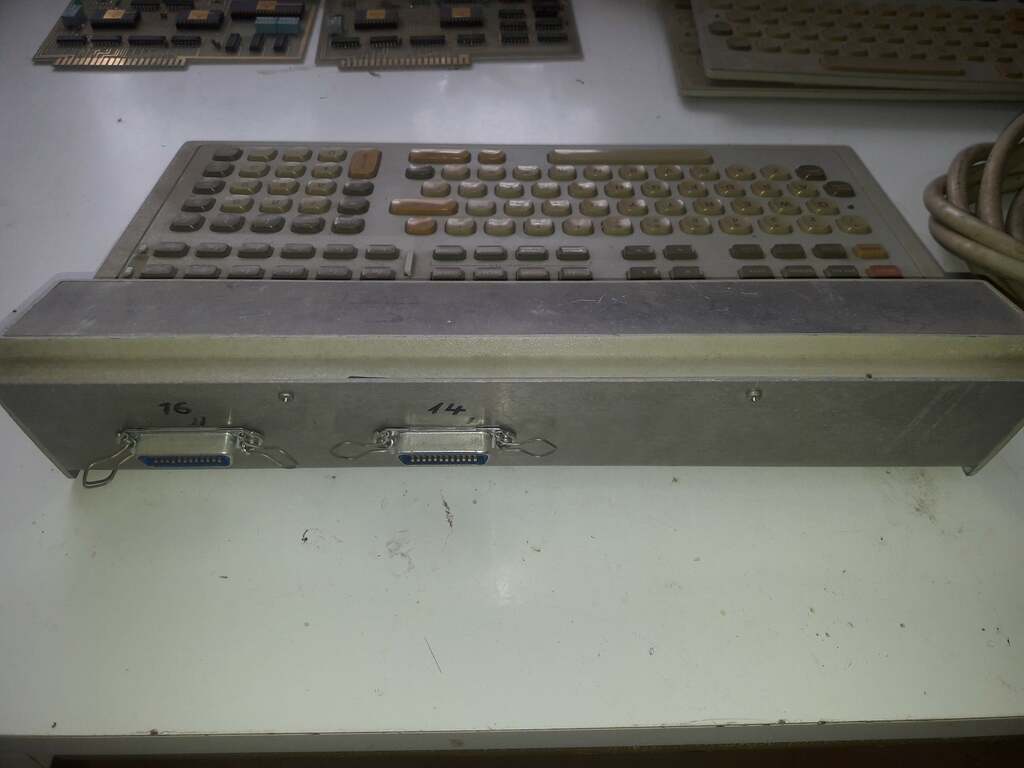

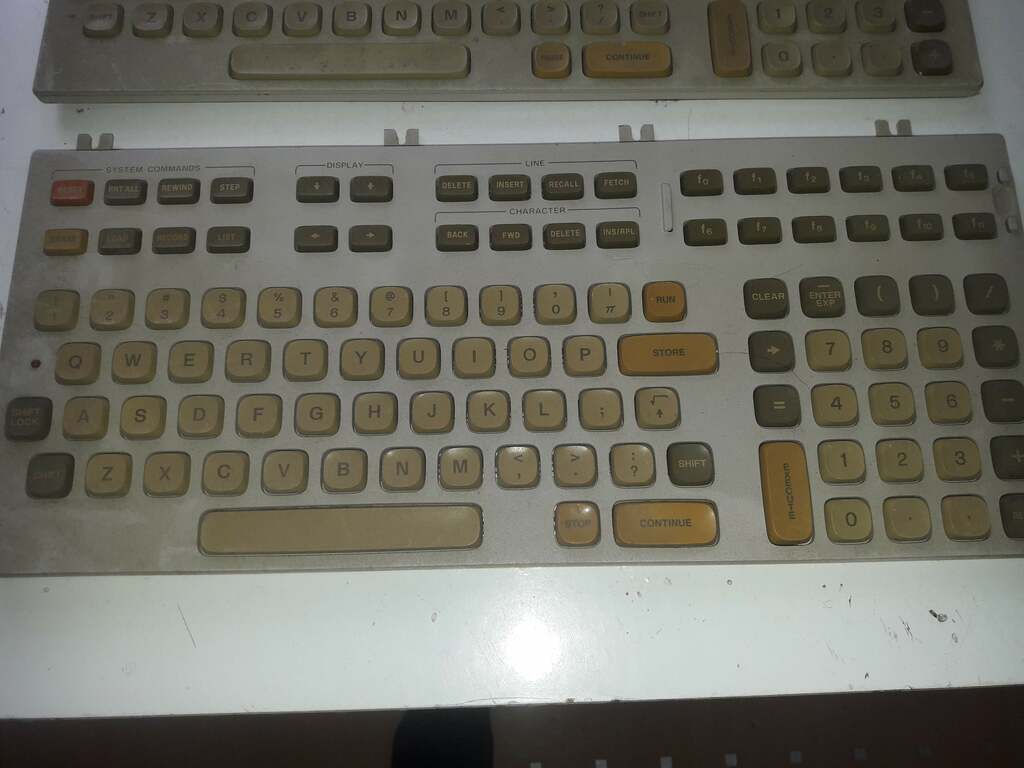

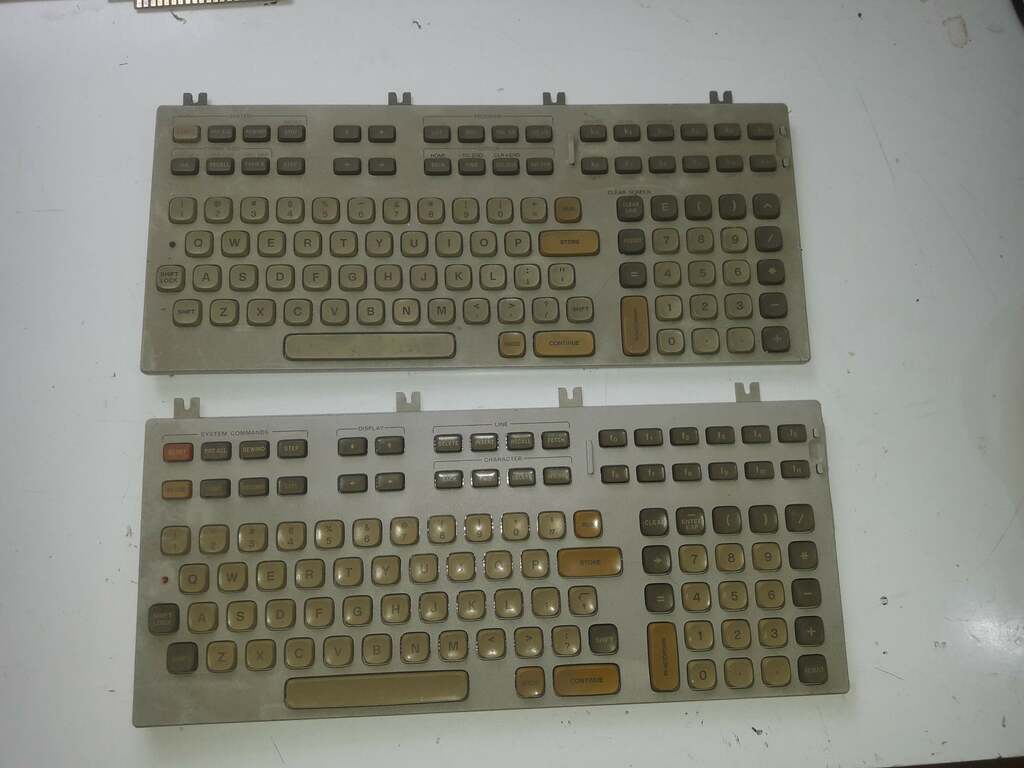

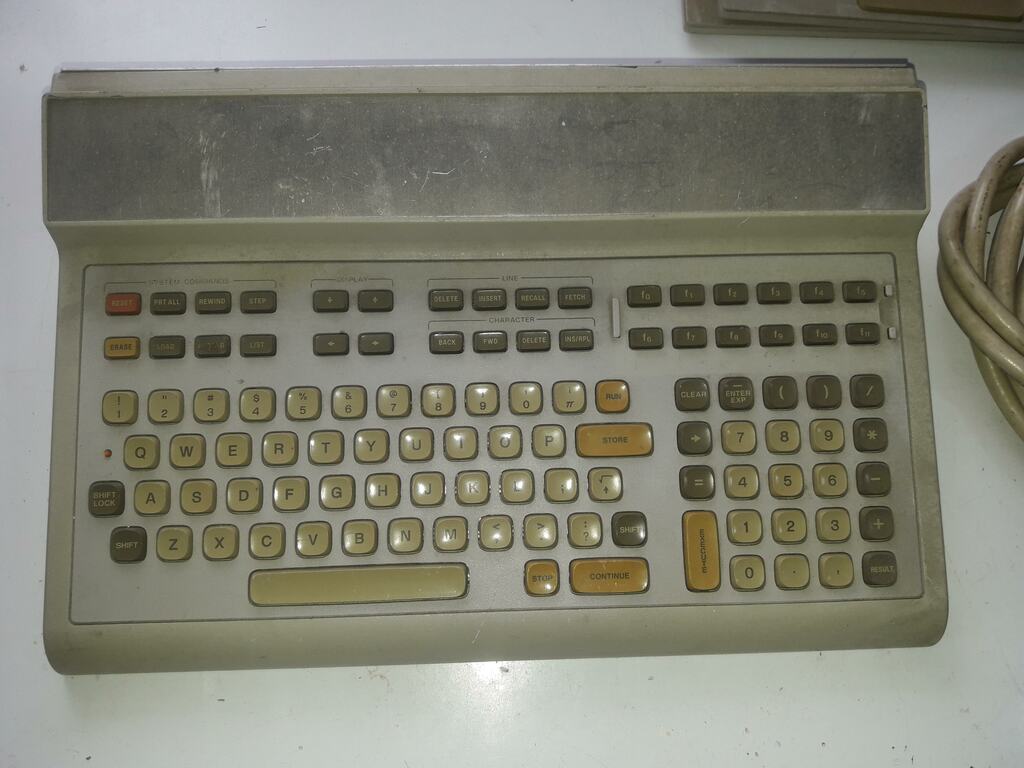

Keyboard is connected with two thick 'Centronics' style cables, two additional keyboard electronics boards.

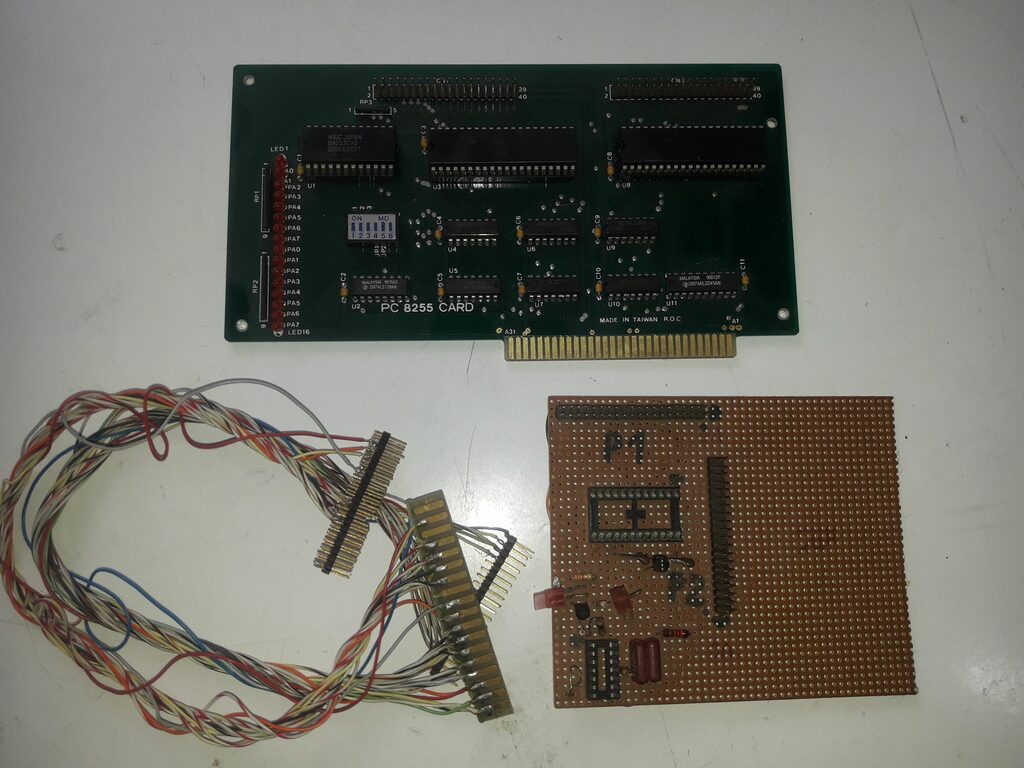

Eprom programmer, DIY style using a ISA PC IO Card. And a cable used to implement a bus-sniffer/logic analyzer.

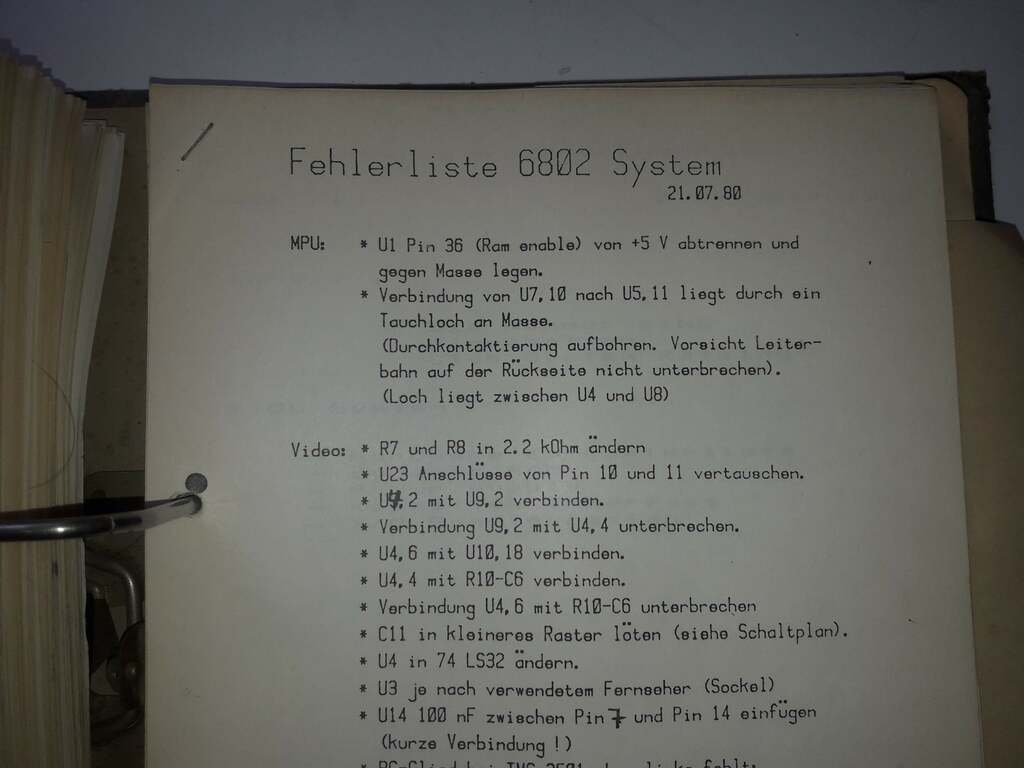

There is extensive documentation, too:

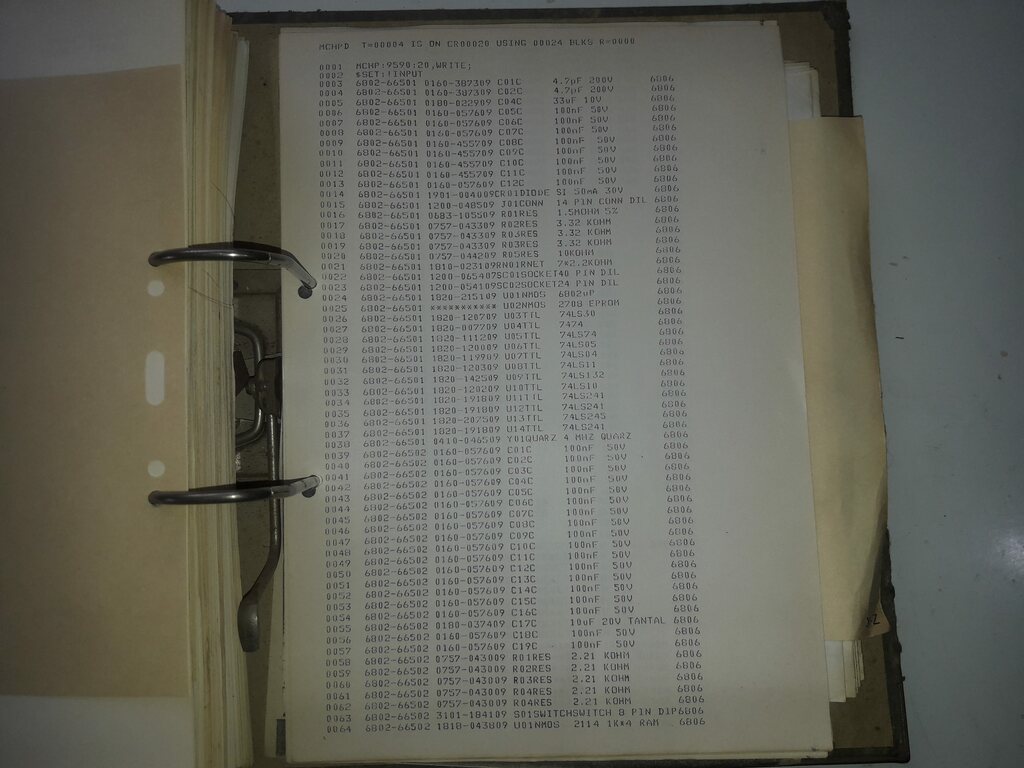

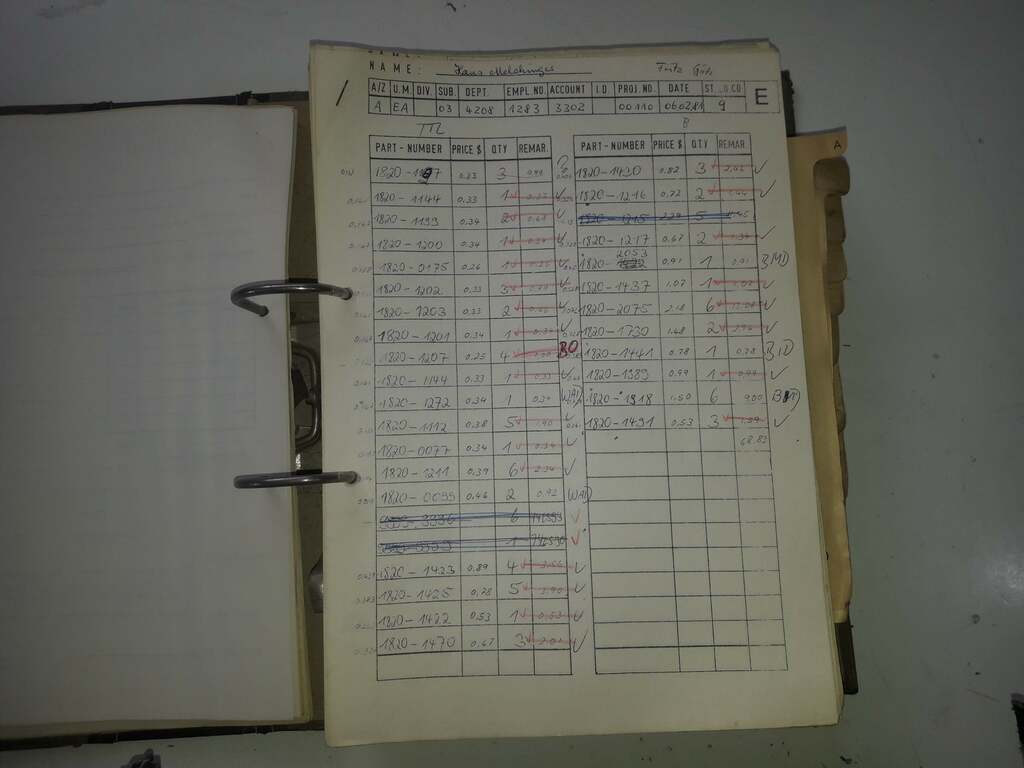

- Parts lists

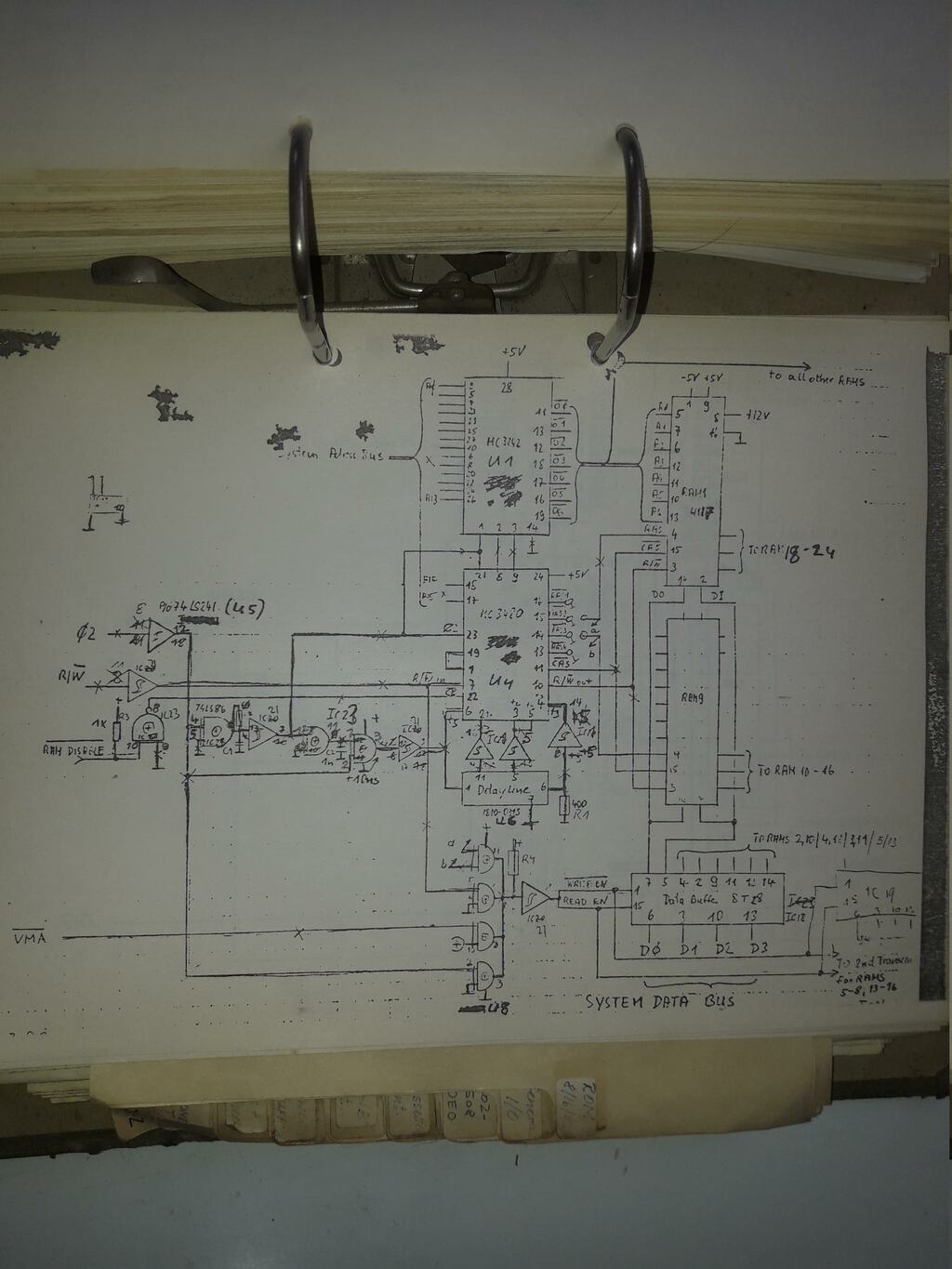

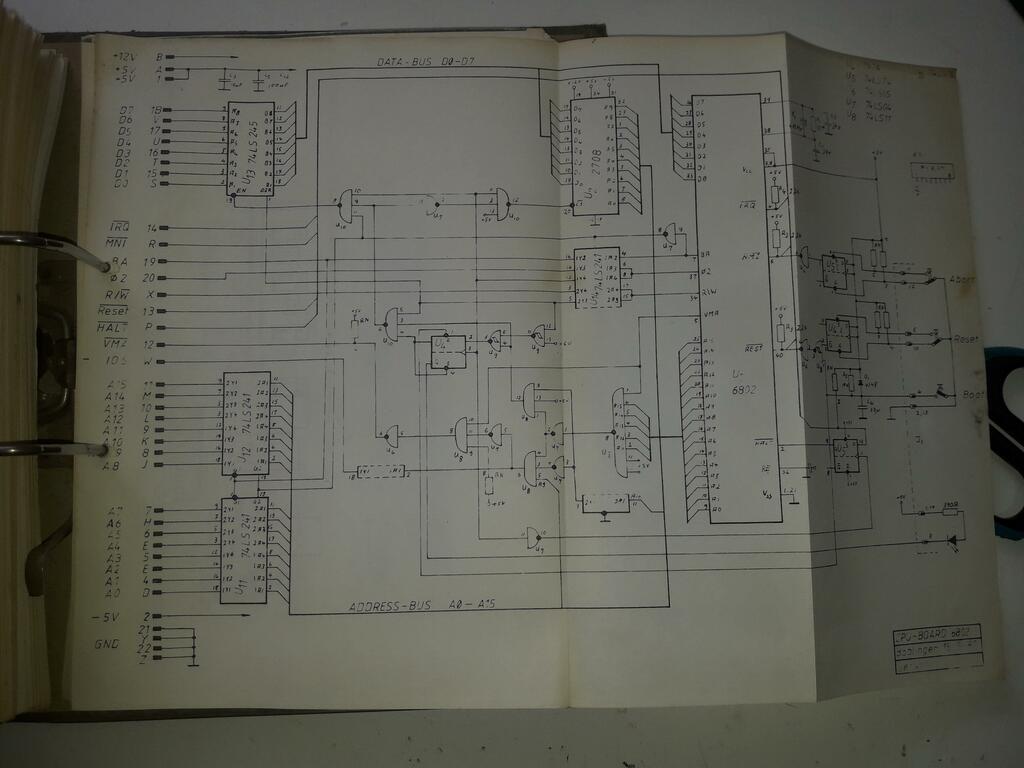

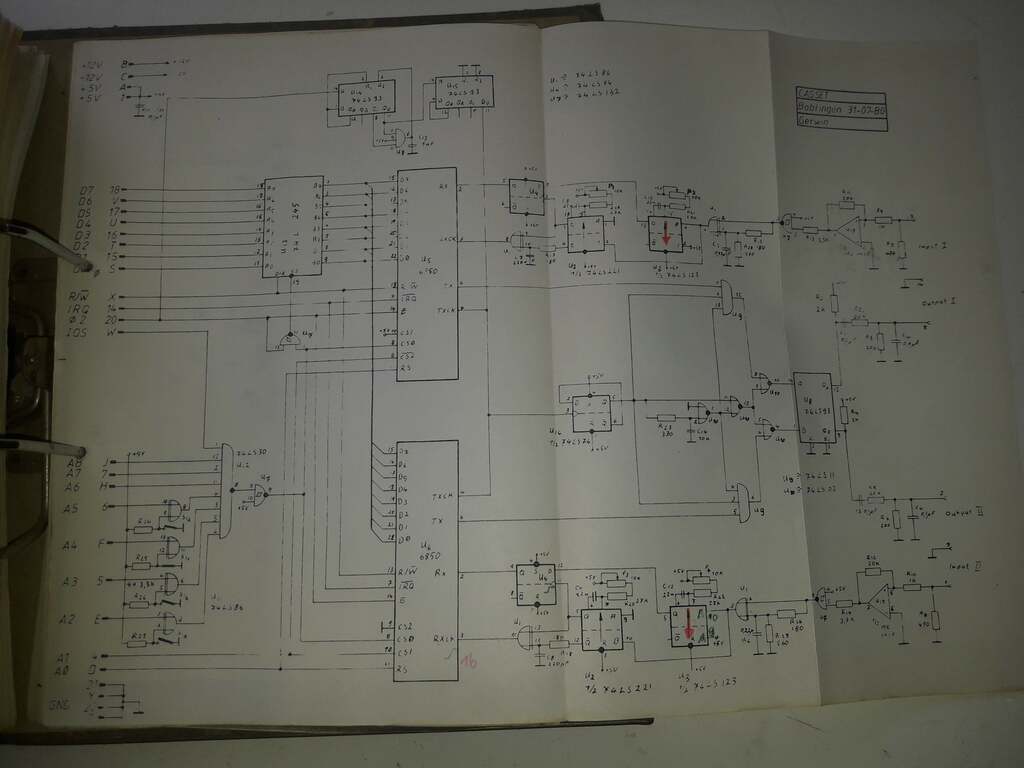

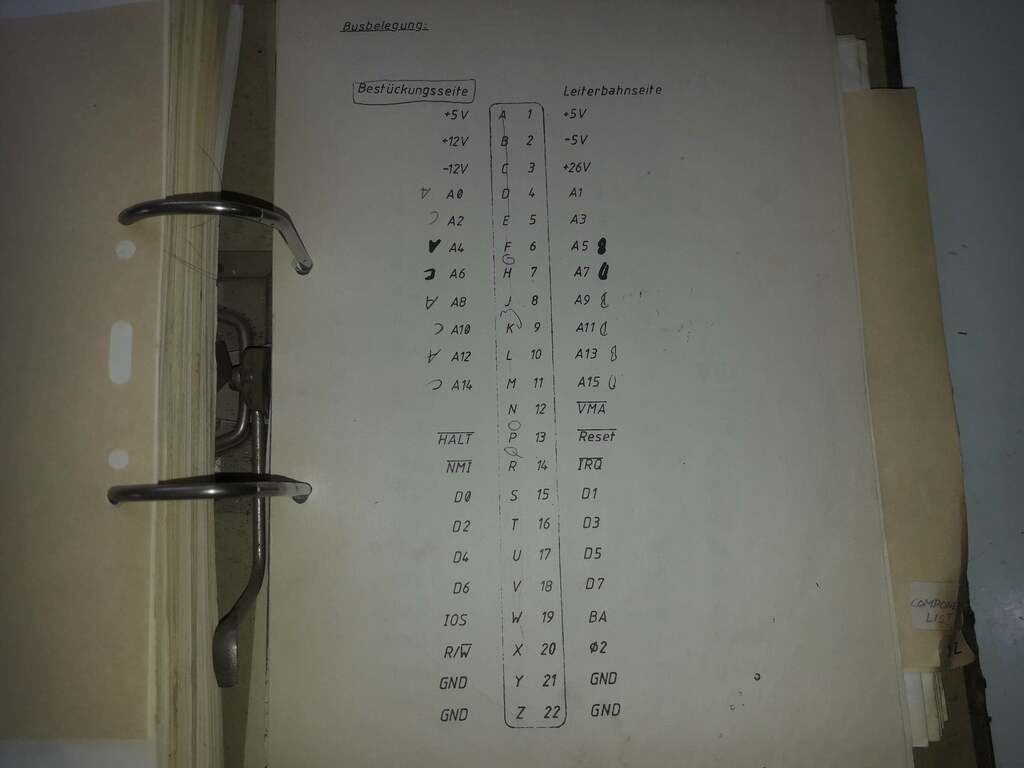

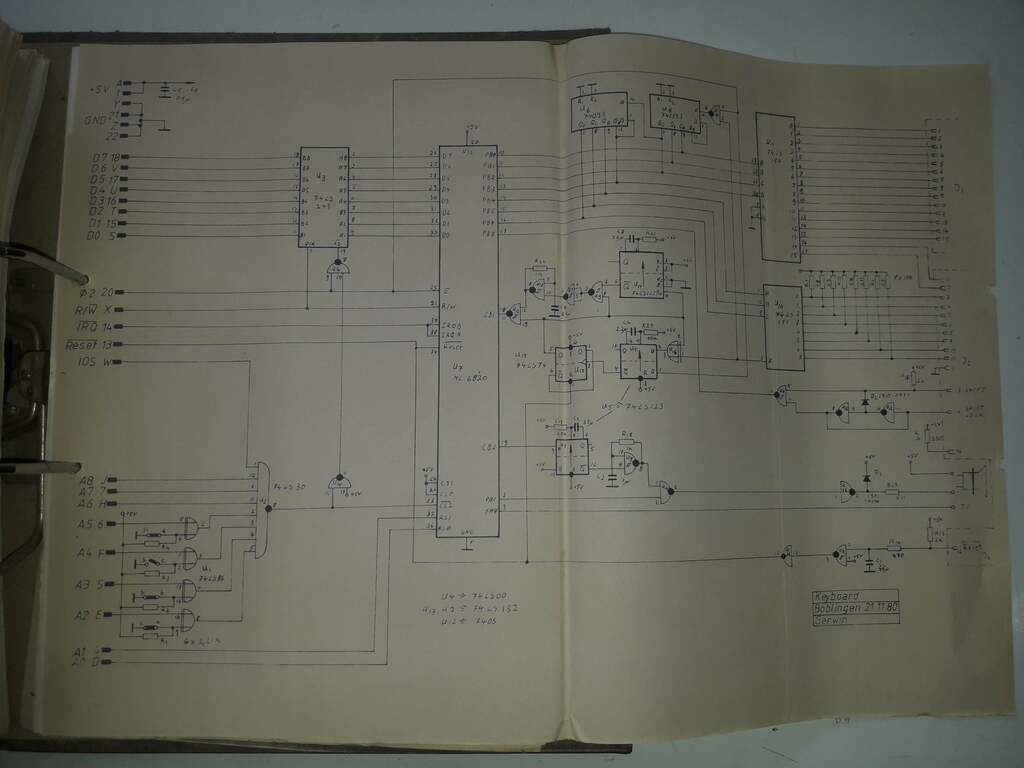

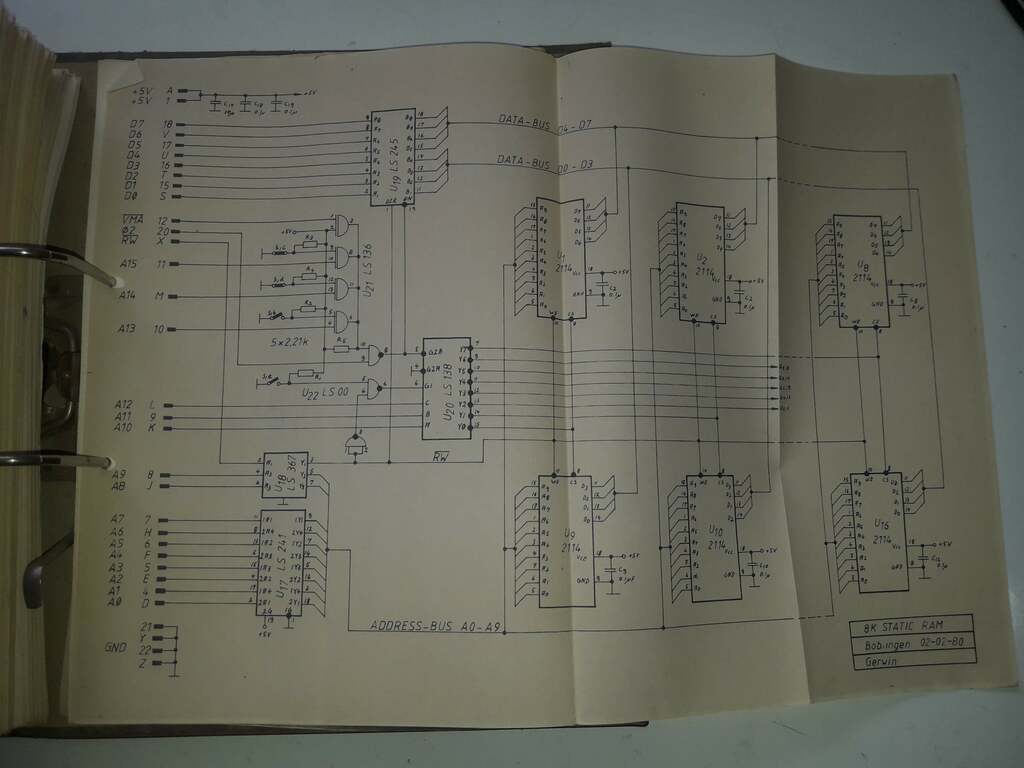

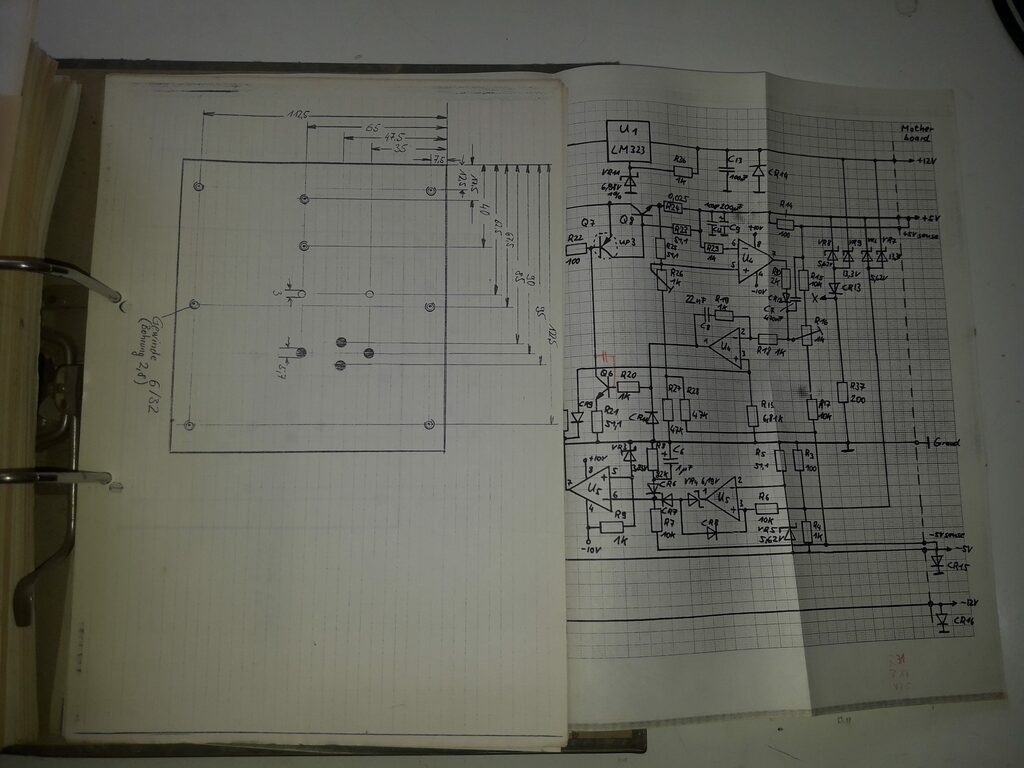

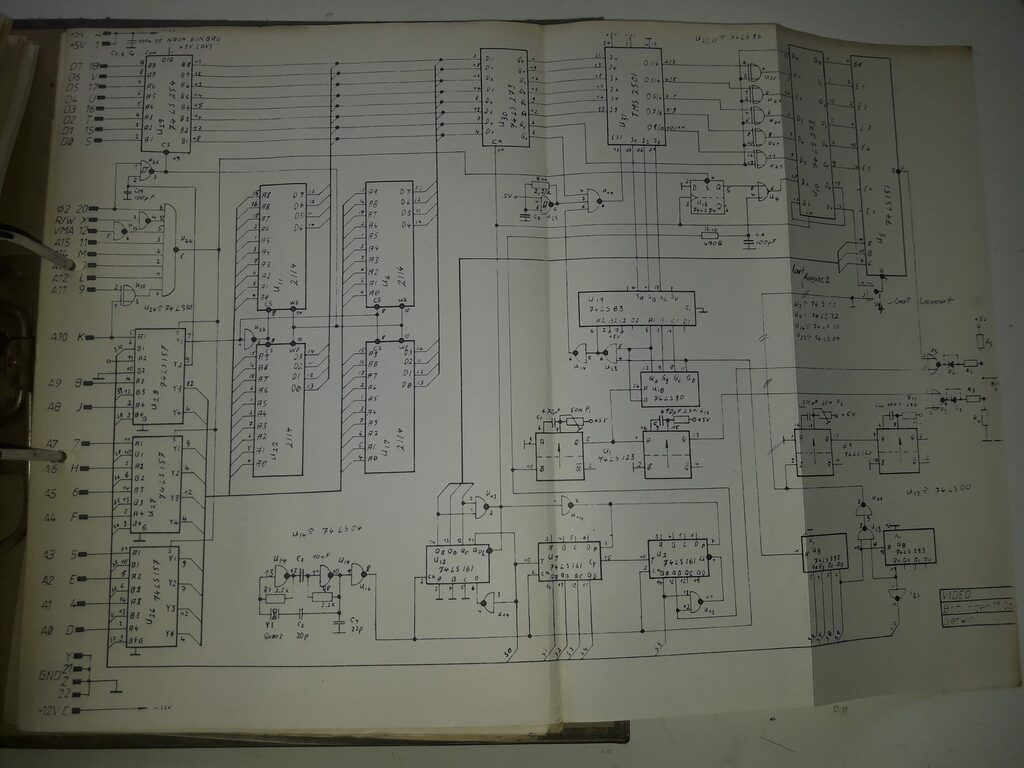

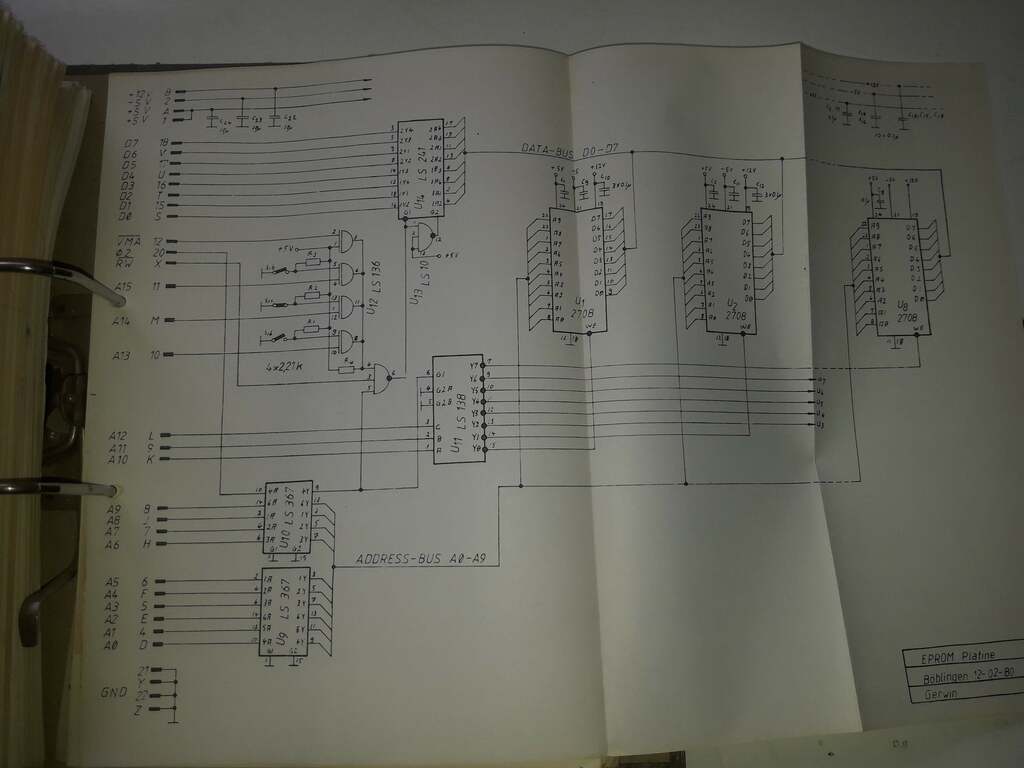

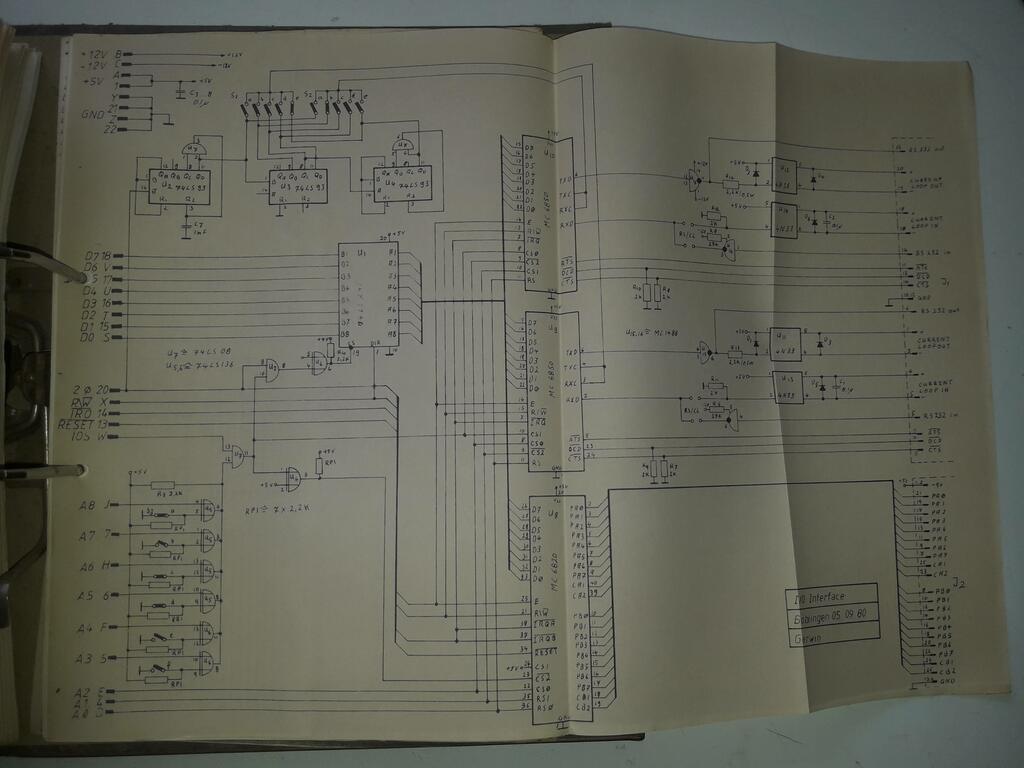

- Board Schematics, BUS pinout

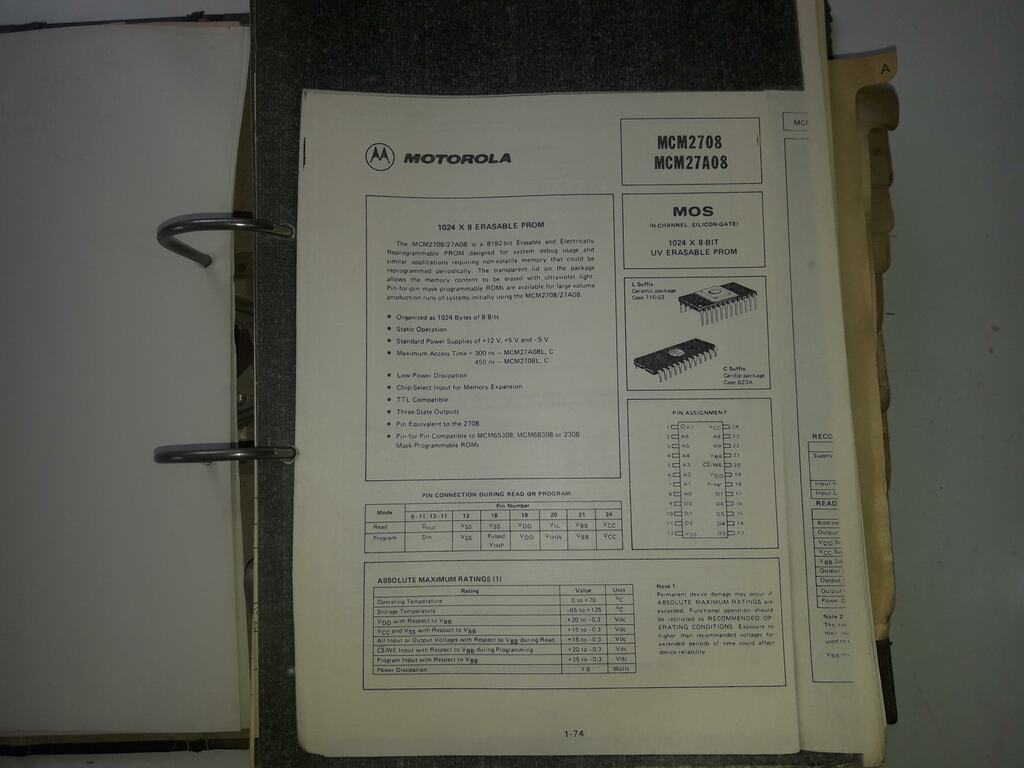

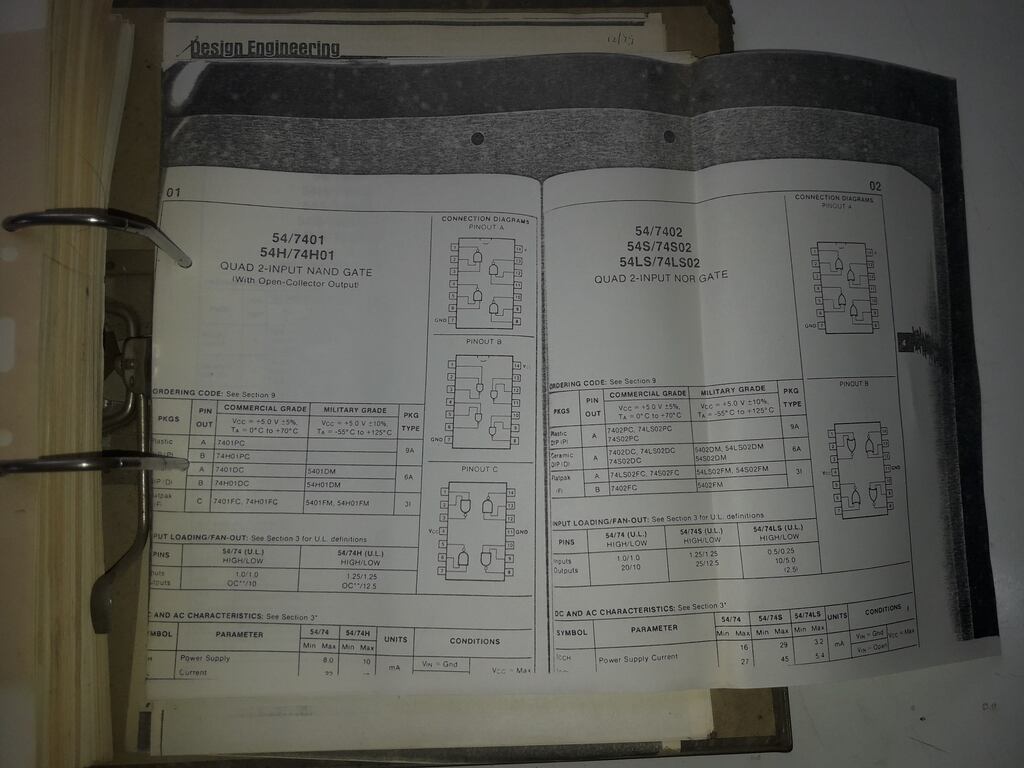

- Chip datasheets

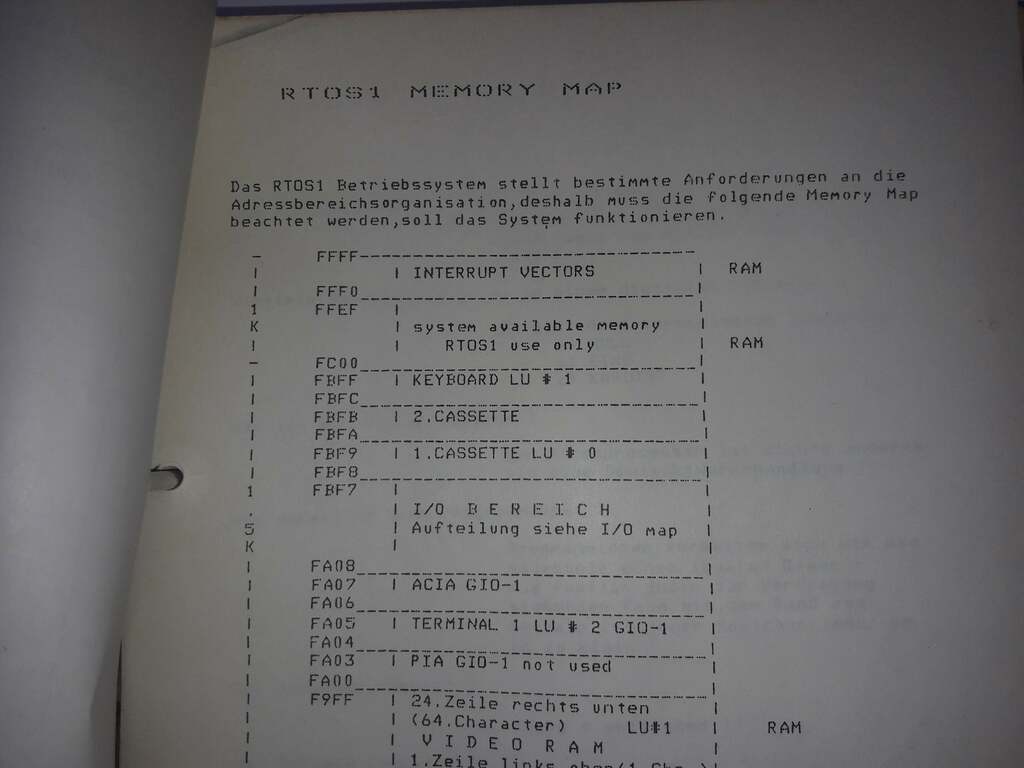

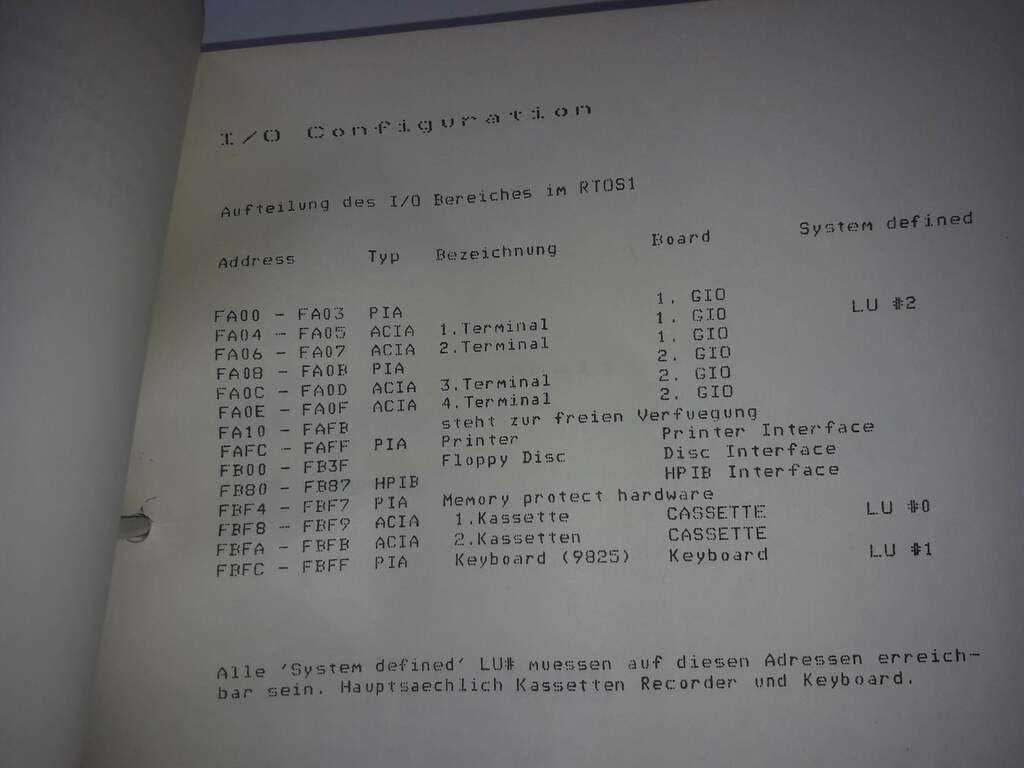

- Memory Maps

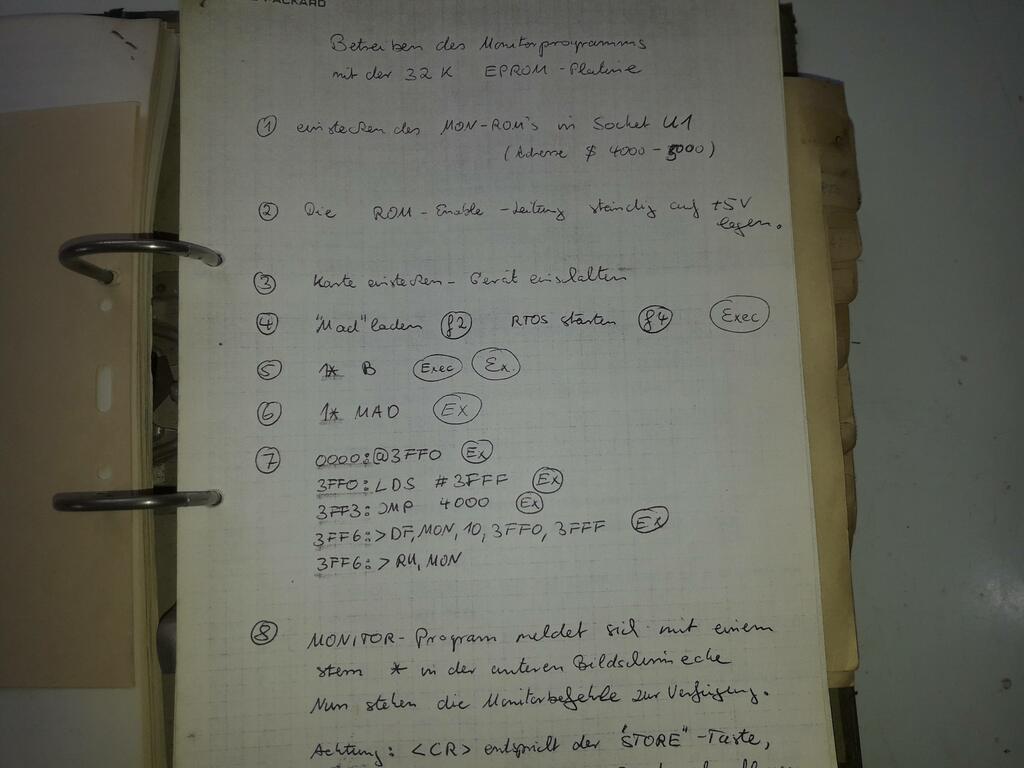

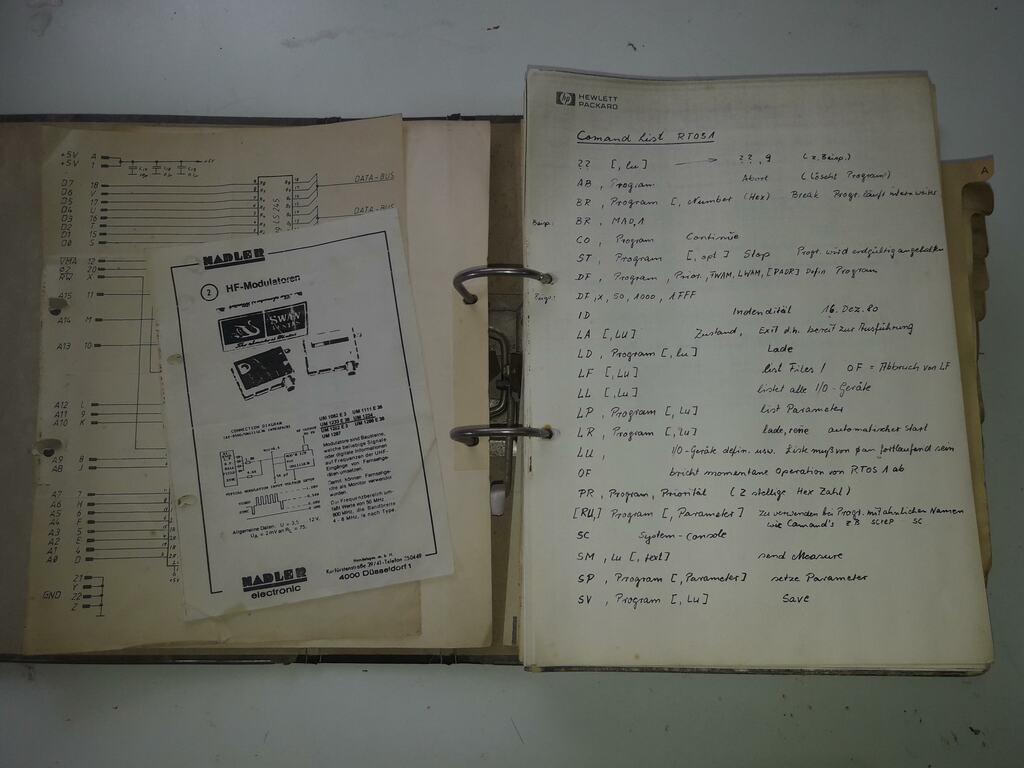

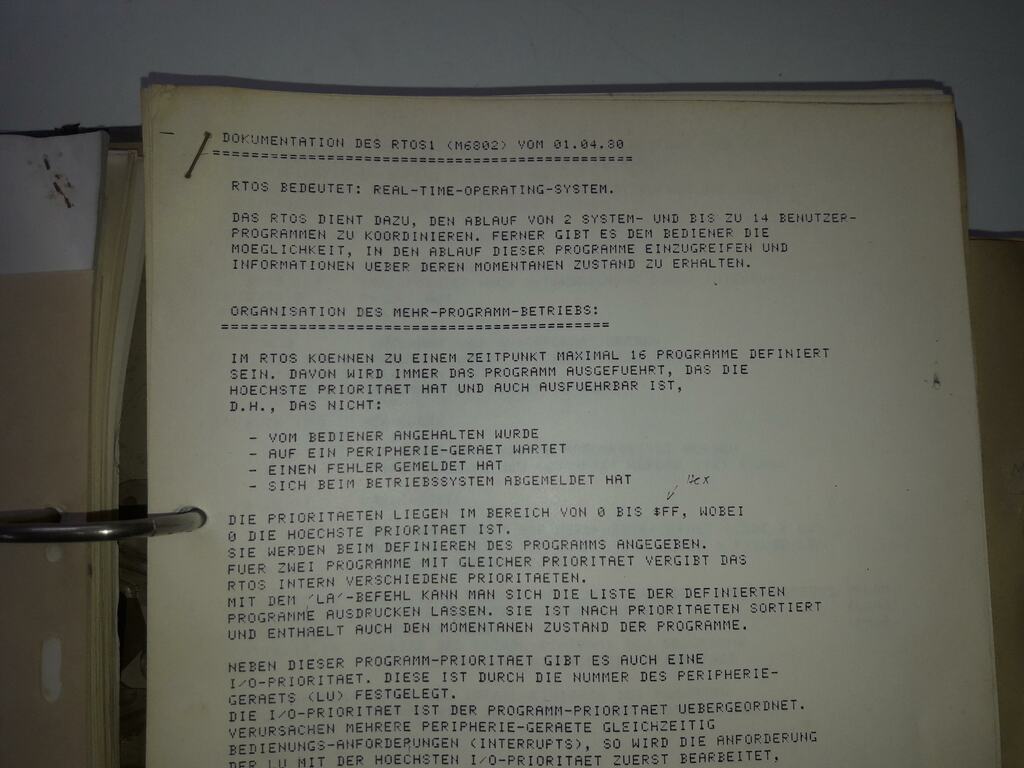

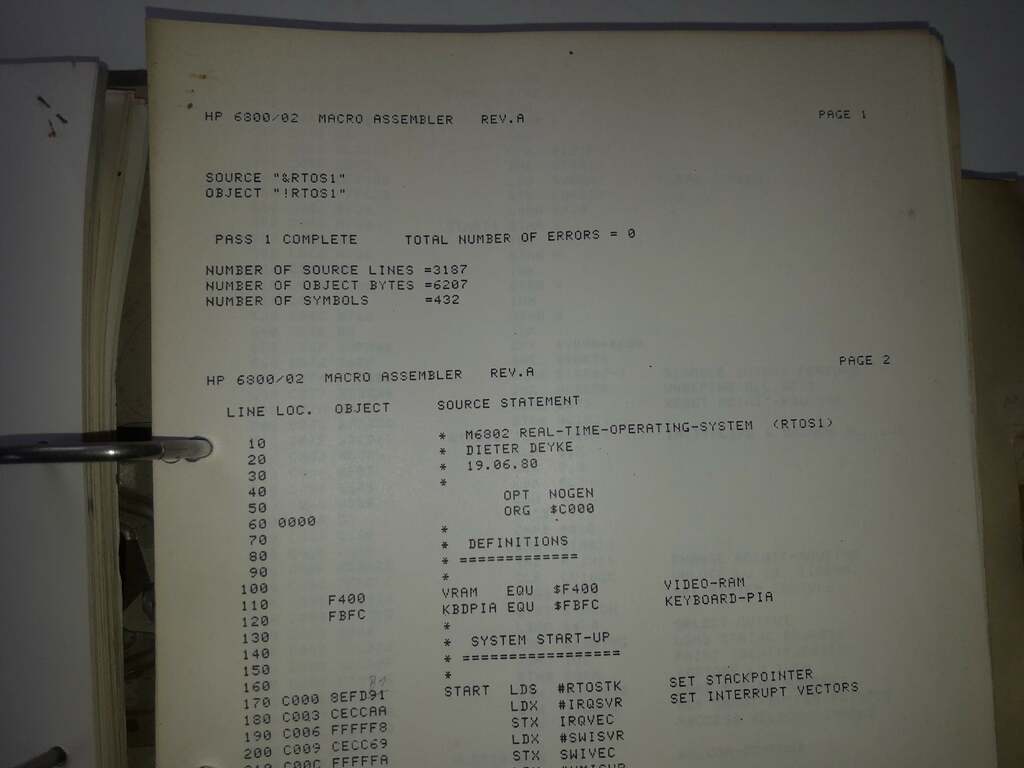

- Operating system 'RTOS1' documentation and listings

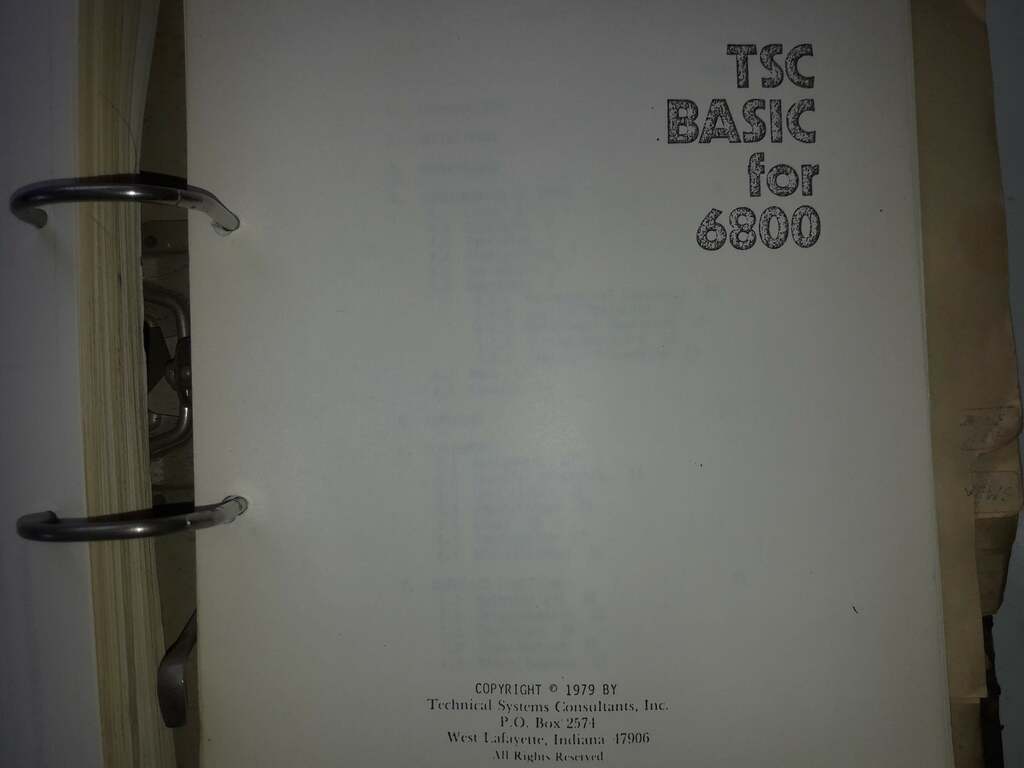

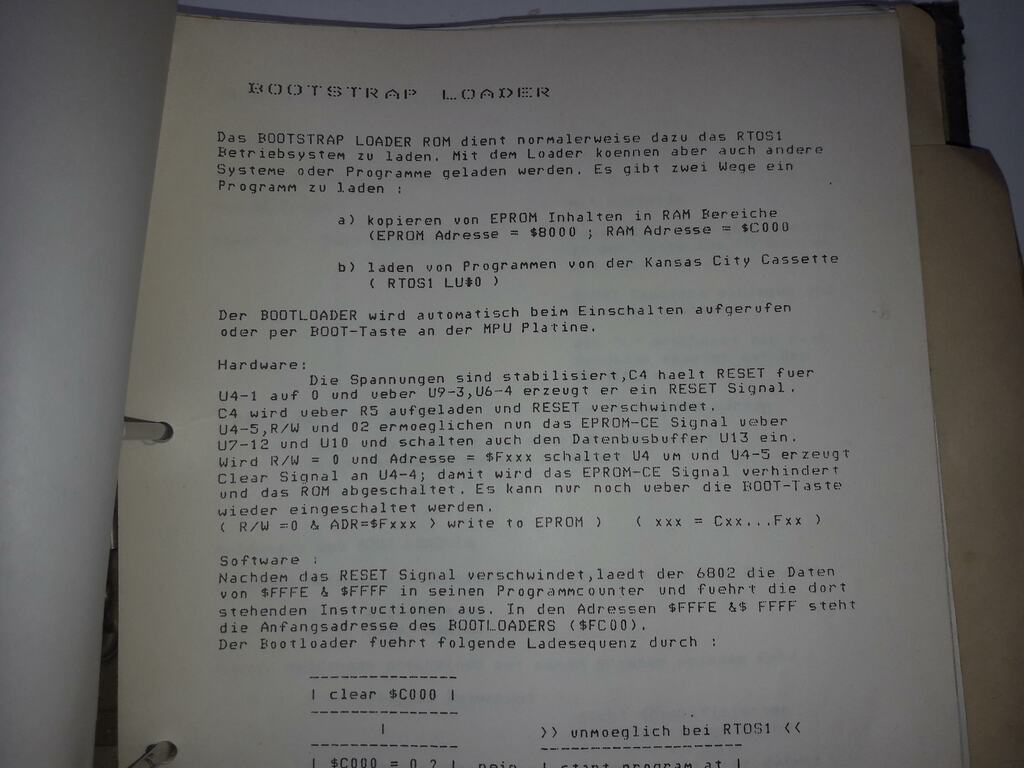

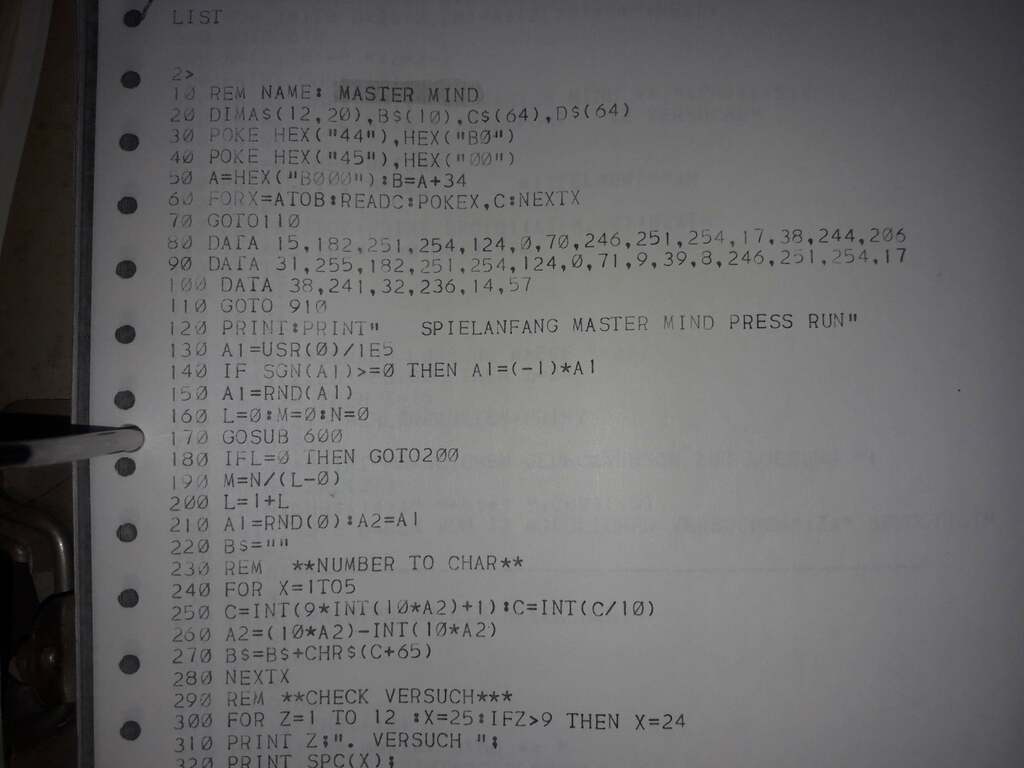

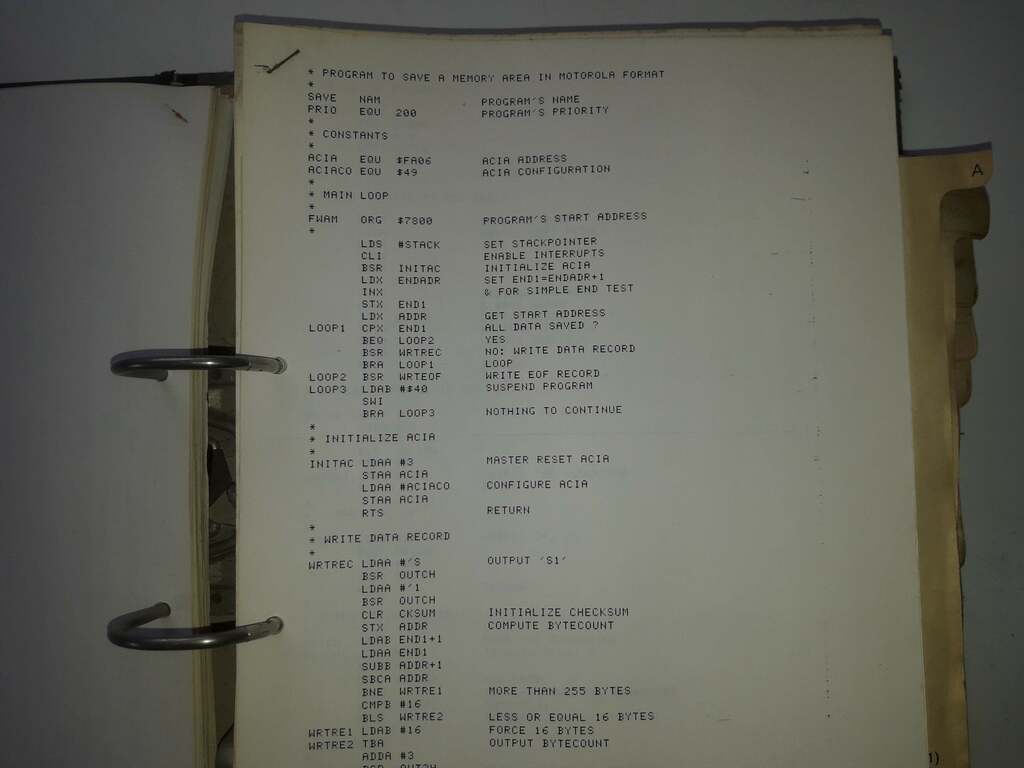

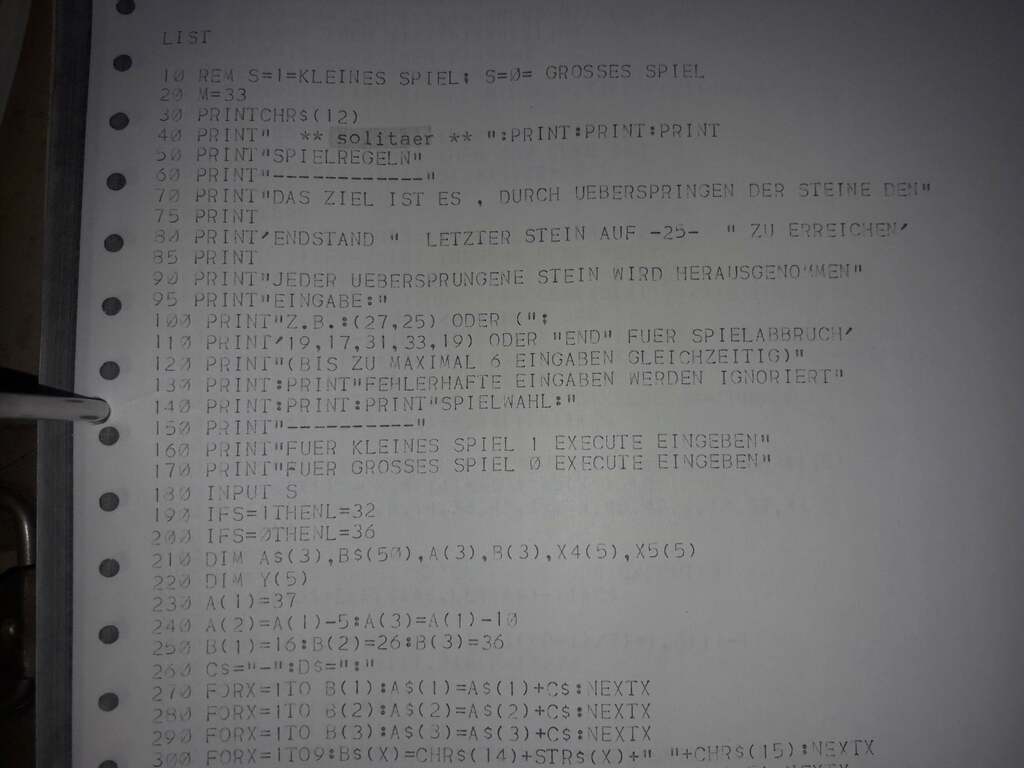

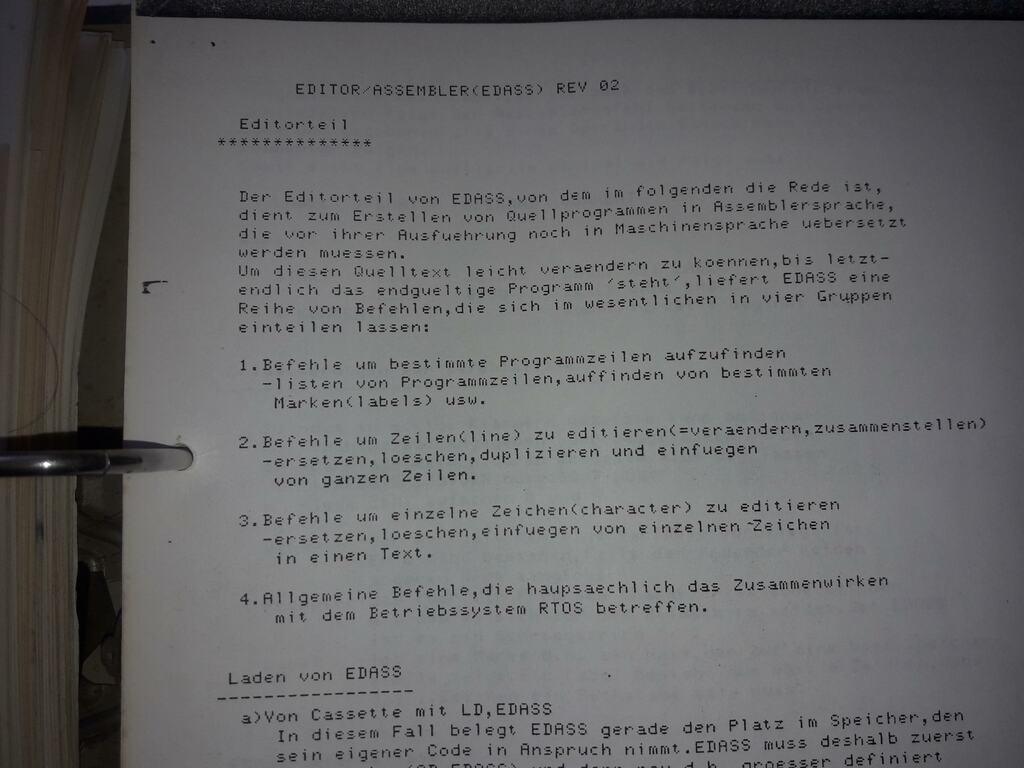

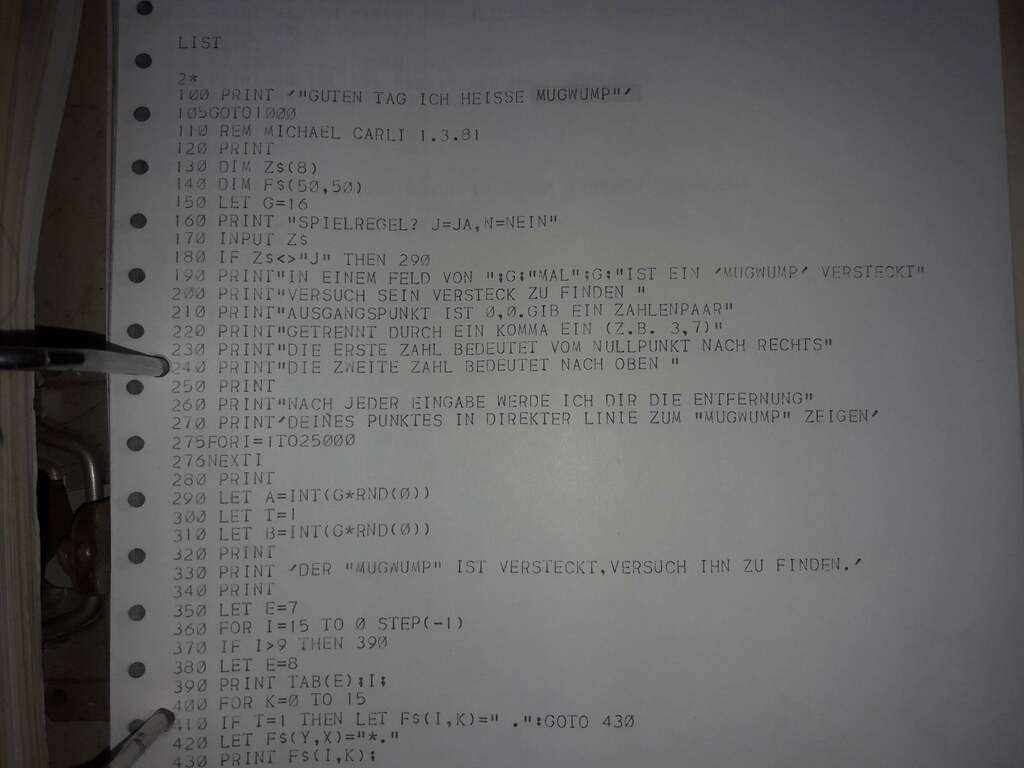

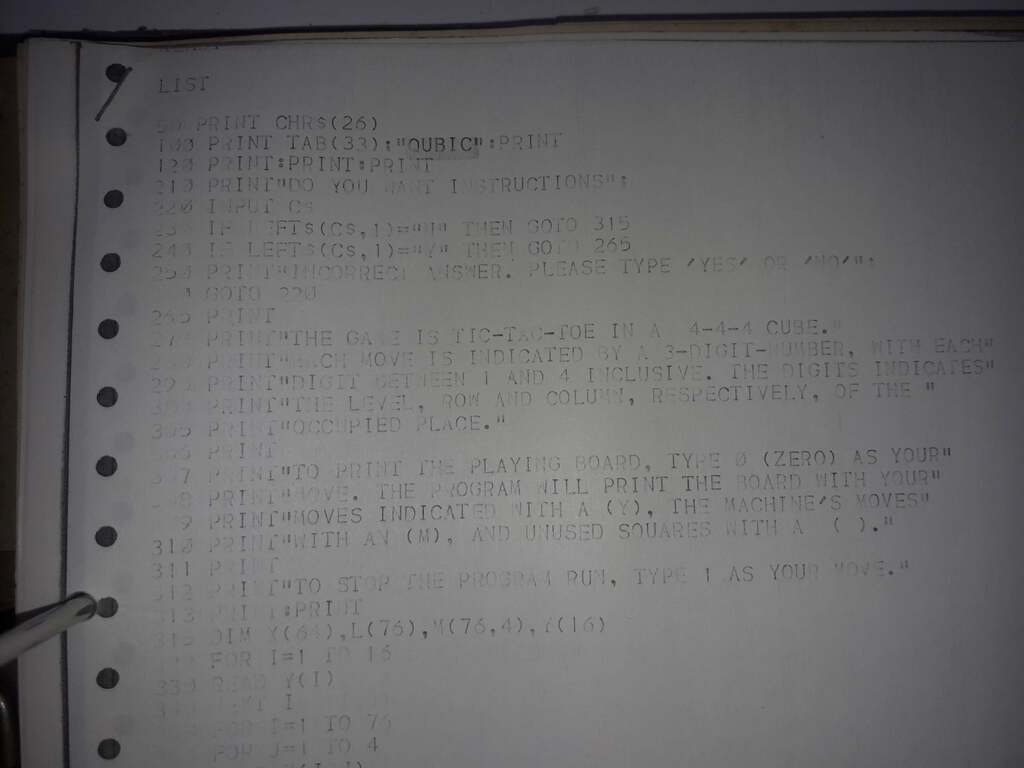

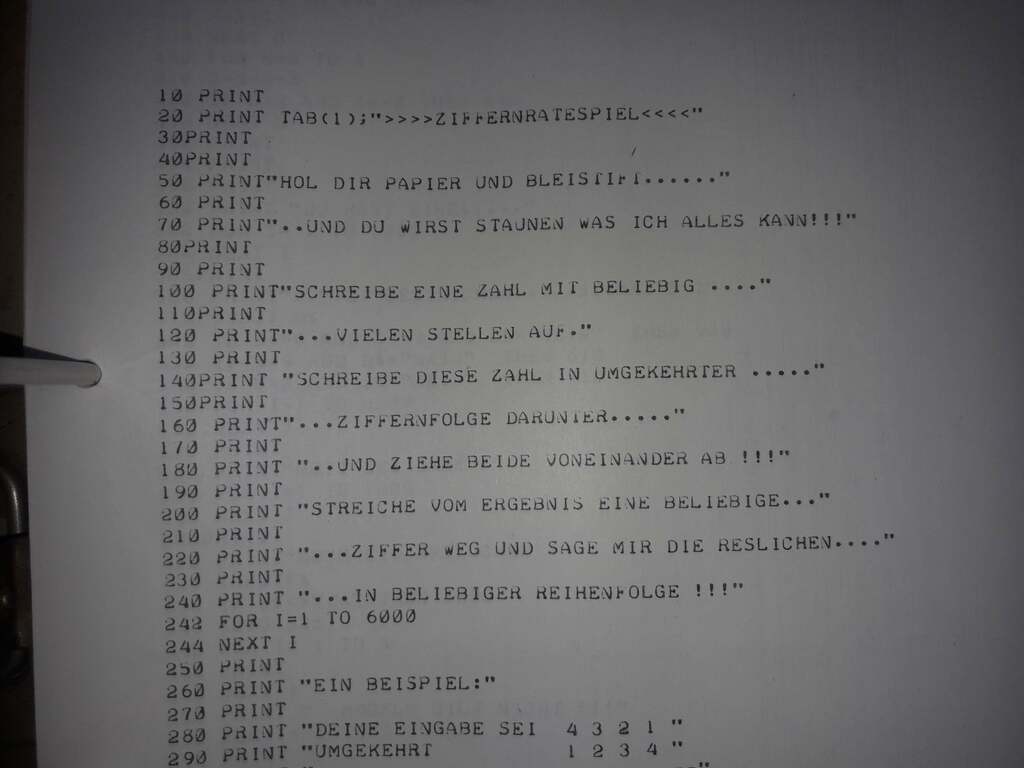

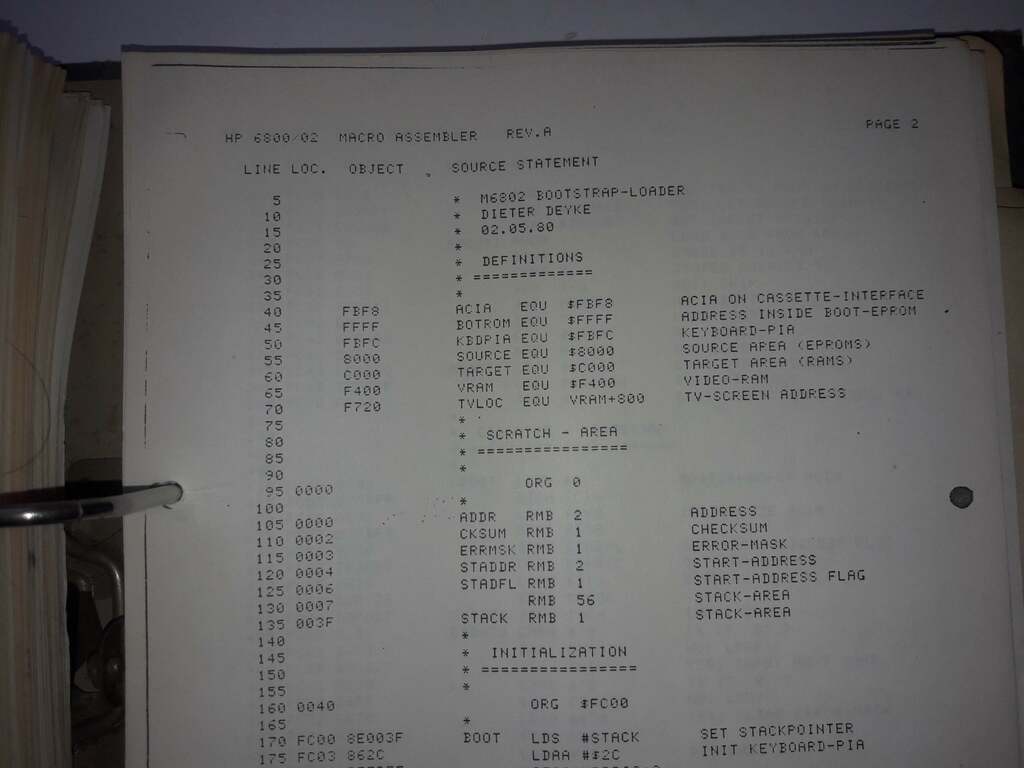

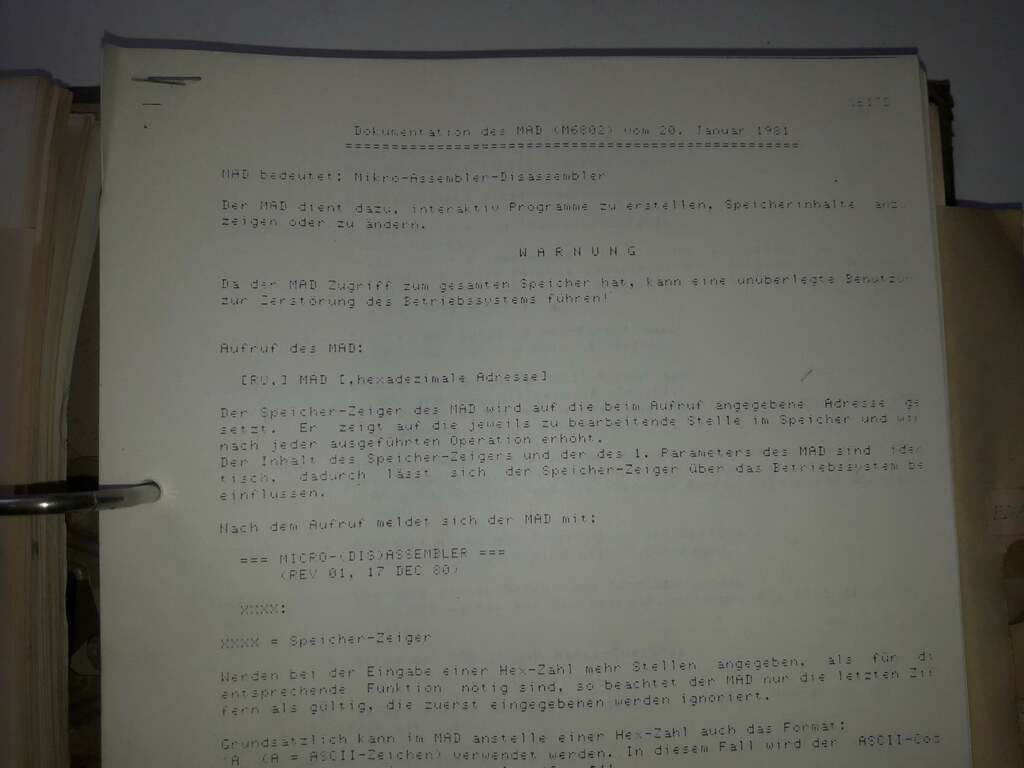

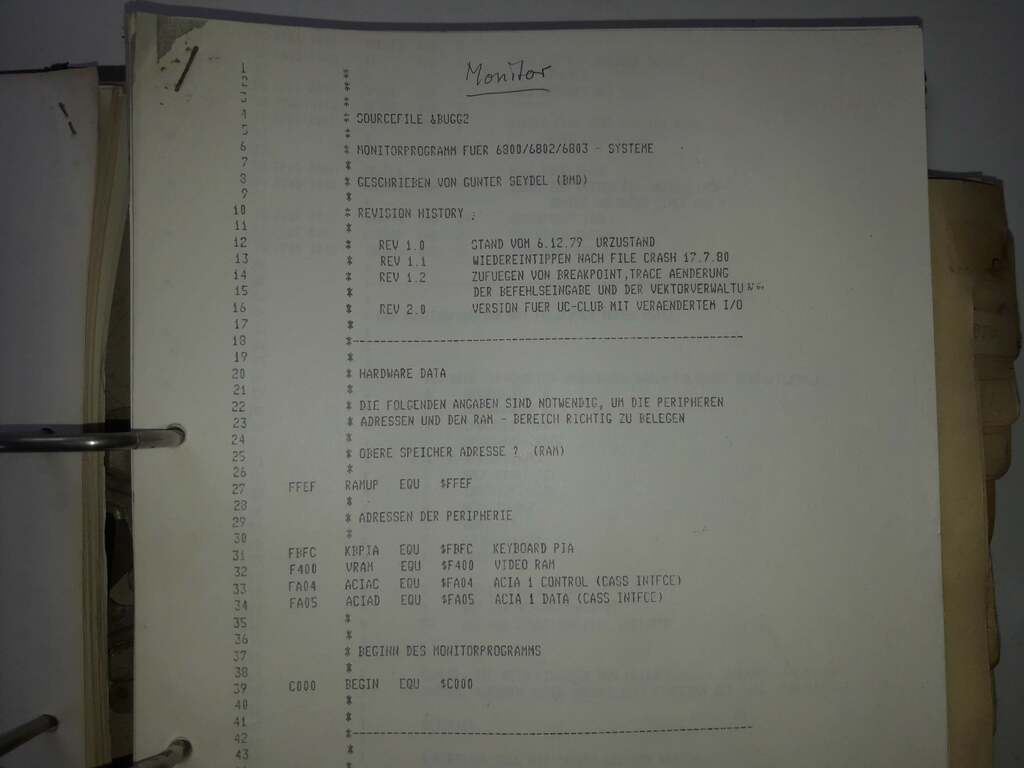

- Documentation and listings of addtional software and tools (Monitor, "Micro-Assembler-Disassembler" MAD, "Editor-Assembler" EDASS, TSC Basic, Bootloader, some computer games)

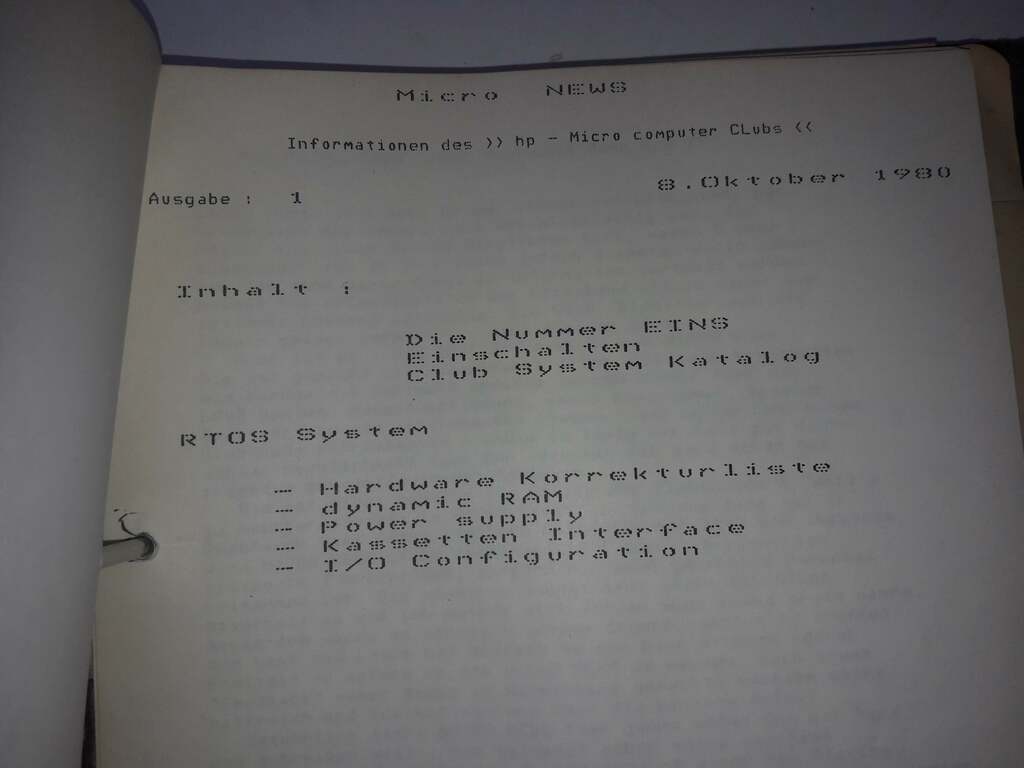

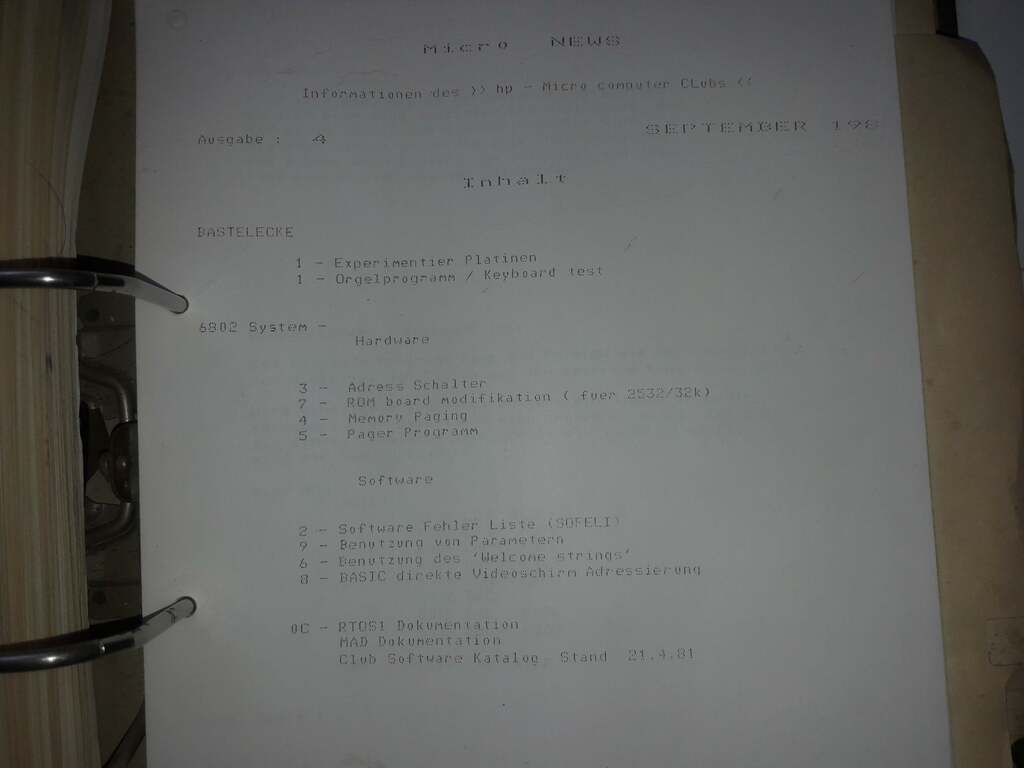

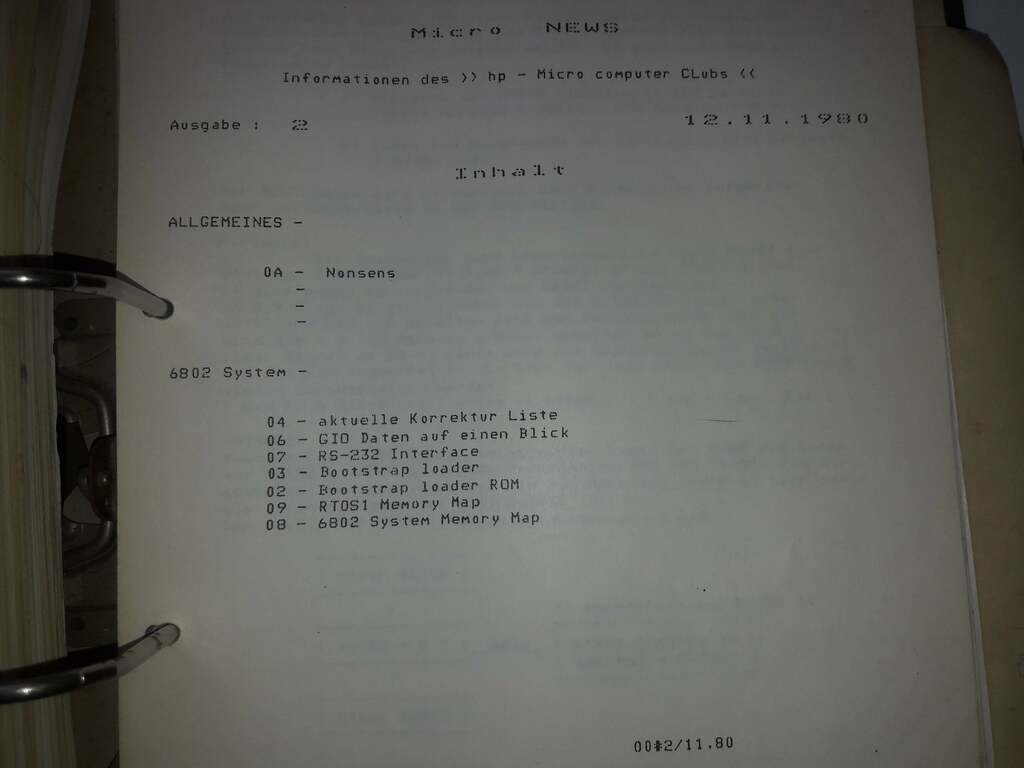

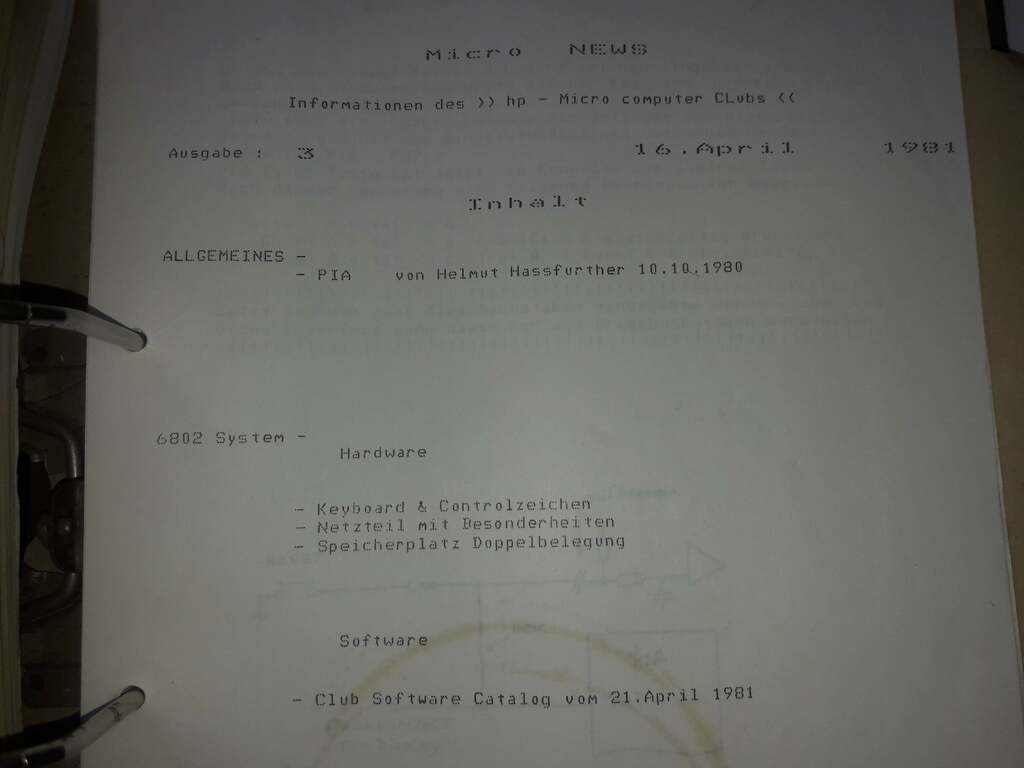

- Some editions of the Micro-Computer-Club Magazine "Micro News"

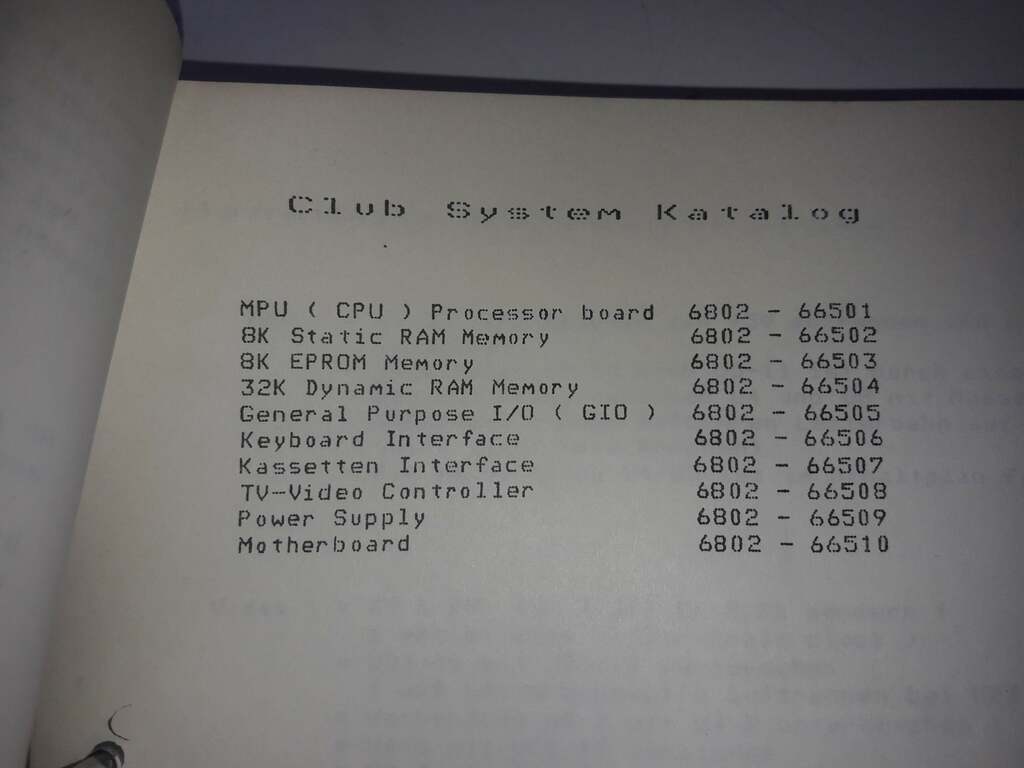

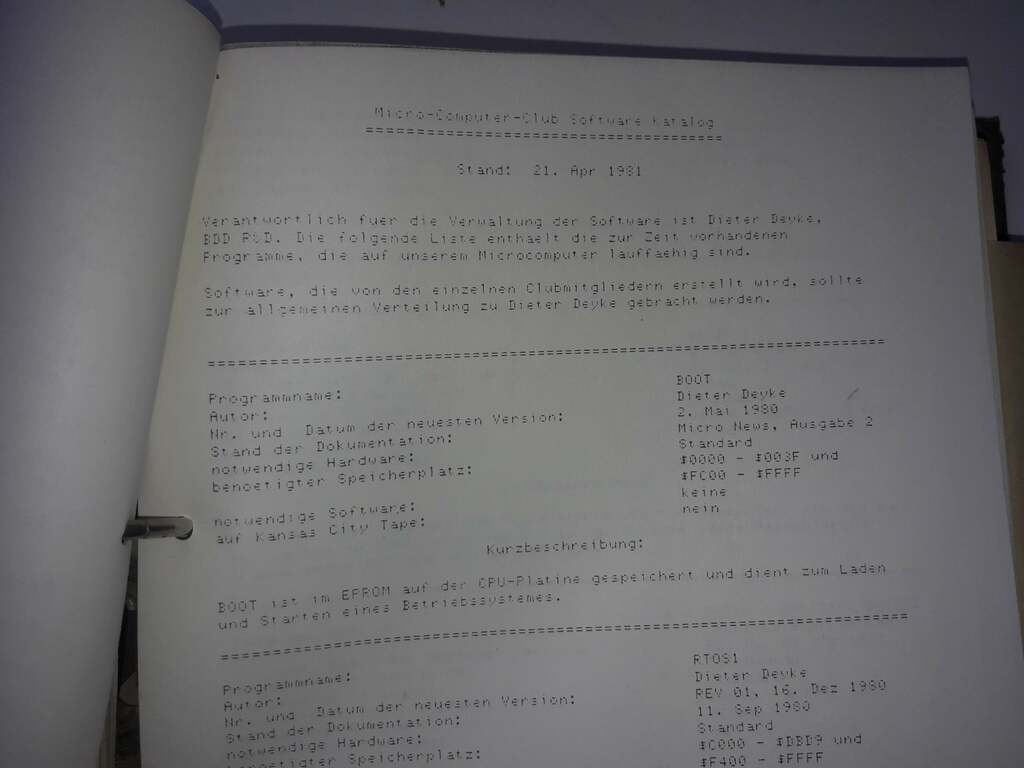

- Micro-Computer-Club Software Catalog
