Some parts printed with ddPrint.

X-Cat robot parts

(click to view large image)Click to close(click to view large image)Click to close

Prototype parts of the X-Cat extinguishing robot remote control. Printed on the Ender5 with a 0.8 mm nozzle, filament is Herz Petg Black.

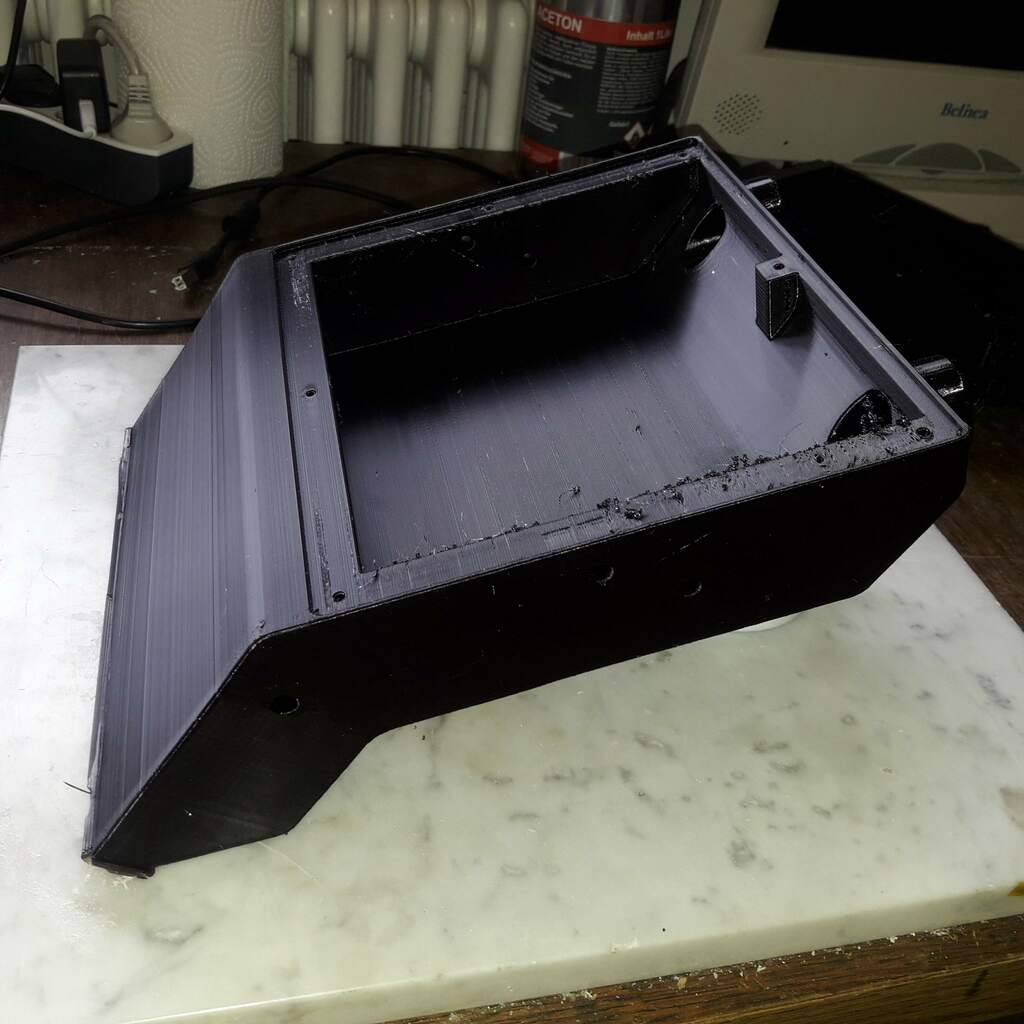

Remote Control housing, printed with 0.8 mm nozzle, 0.25 mm layerheight and 65 mm/s speed (this is a max flowrate of 13 mm³/s).

Print time was 14:46 hours (slicer-estimated build time: 11:56 hours).

Weight of the printed part is 524 g, this is 95 % of the slicer-estimated weight (550 g, density 1.29 g/cm³).

(click to view large image)Click to close

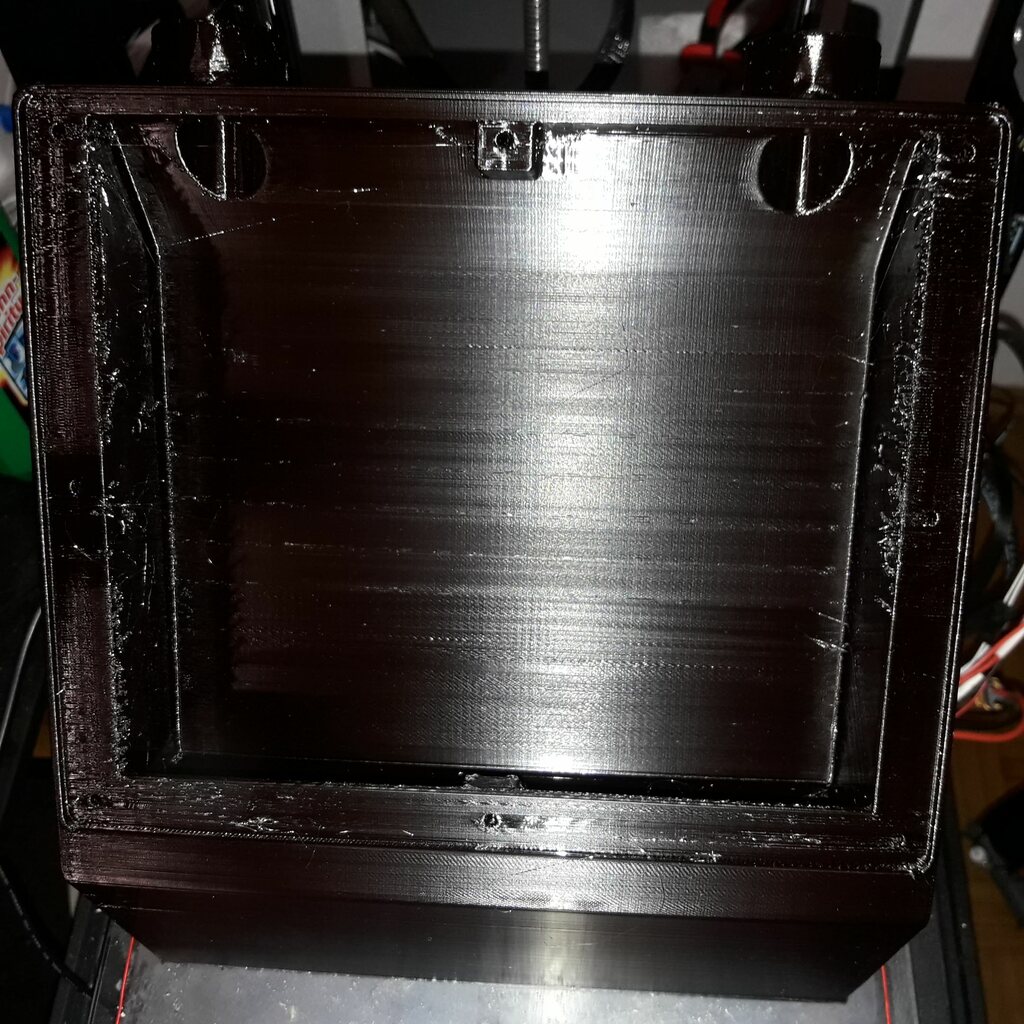

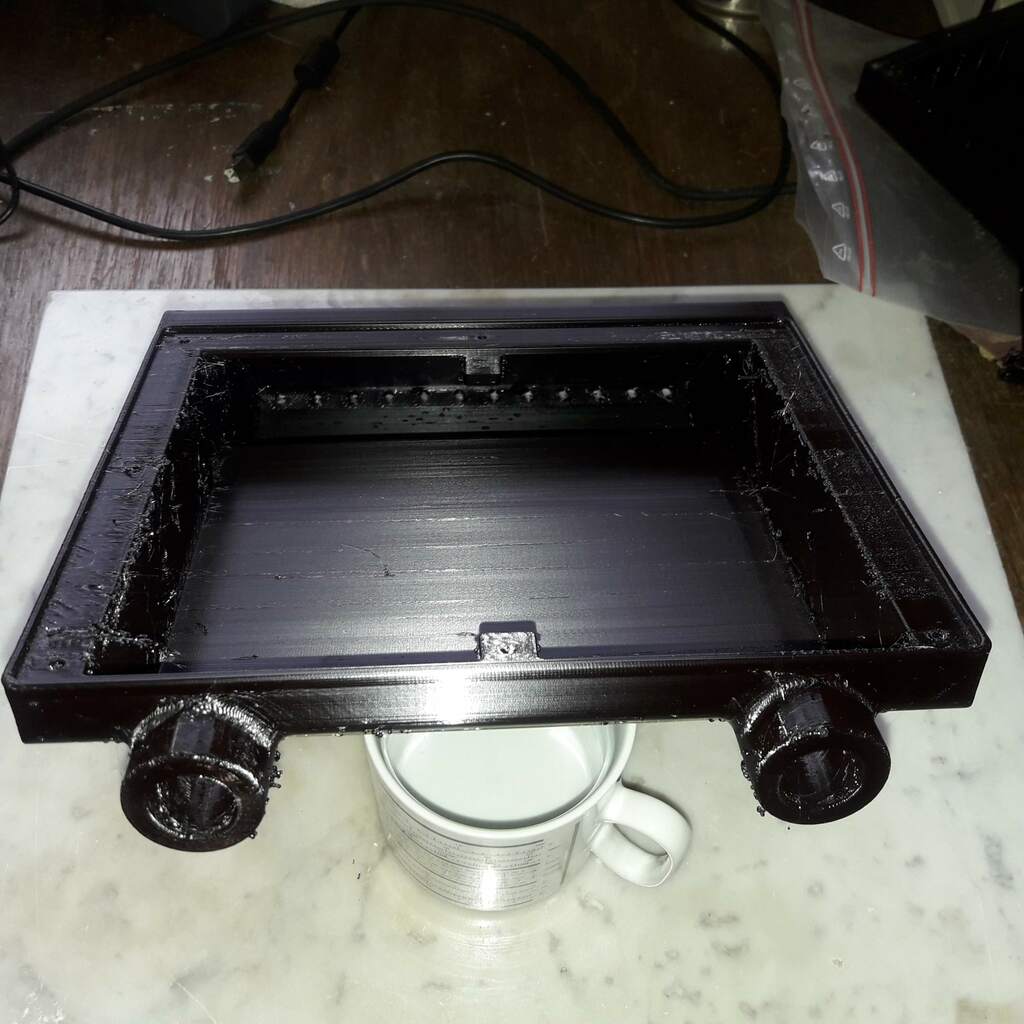

RC housing directly after print, still on printbed.

(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close

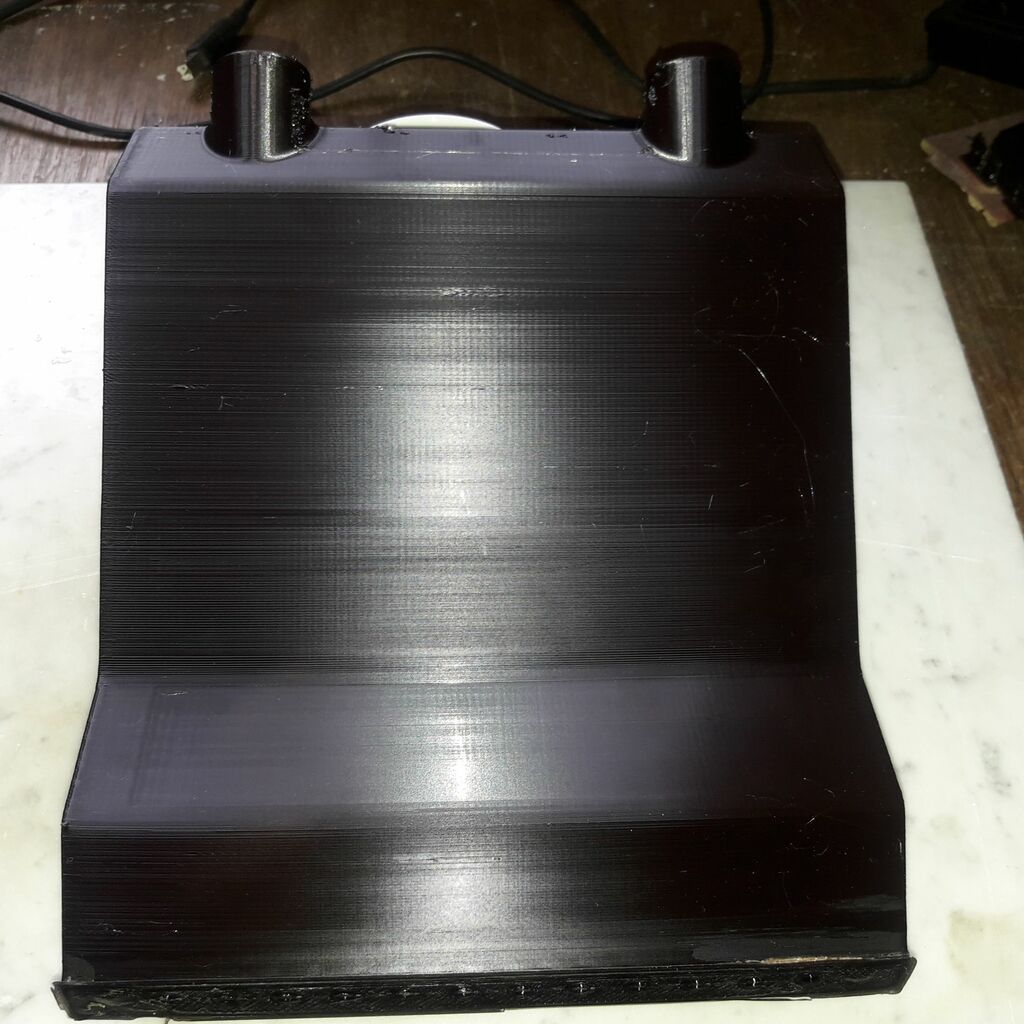

No cleanup, yet.

(click to view large image)Click to close

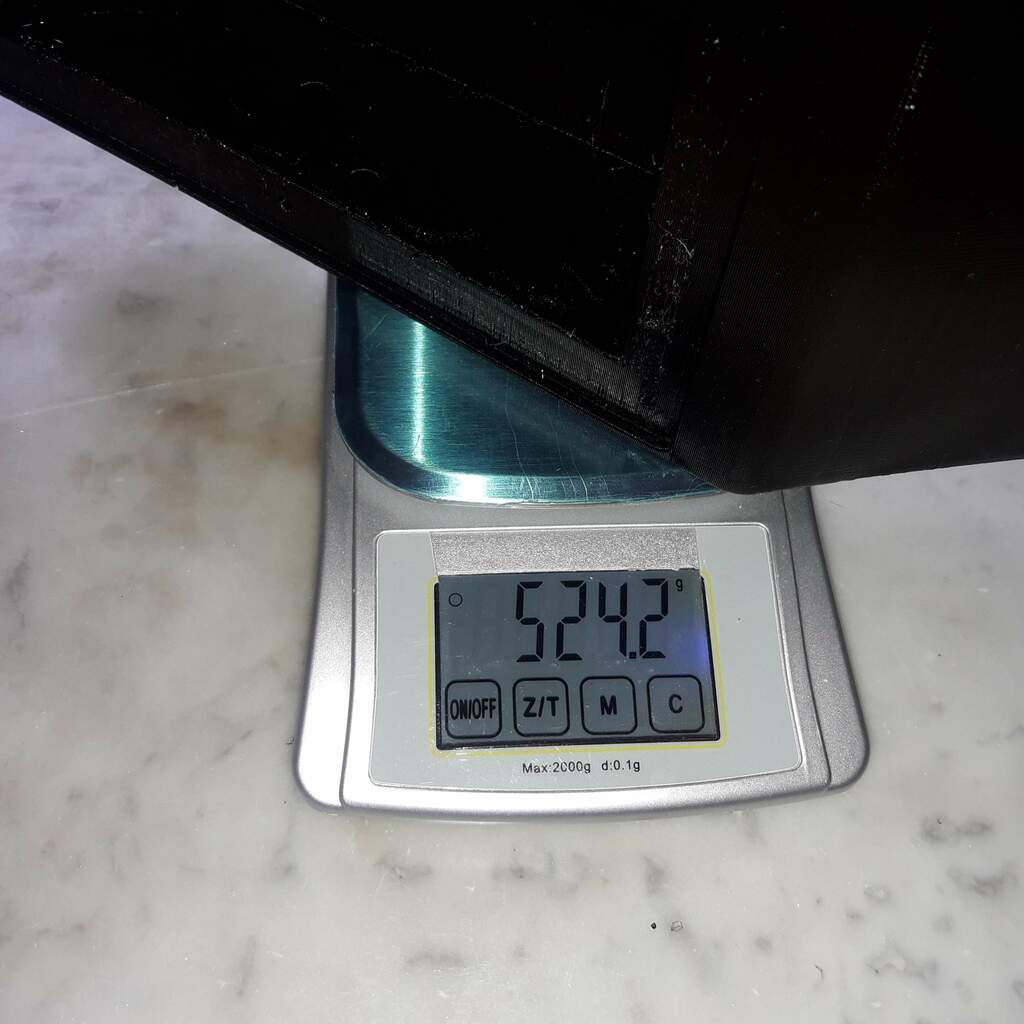

Measuring weight.

(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close

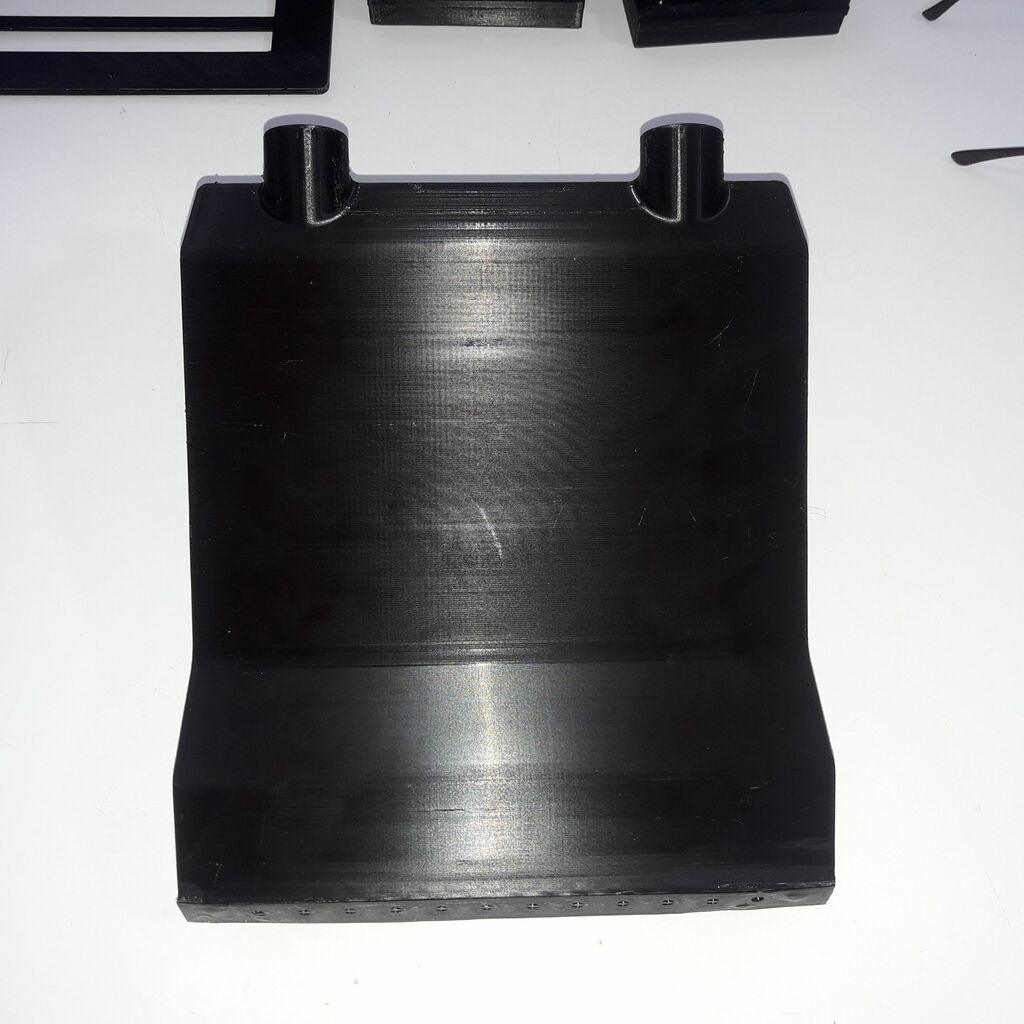

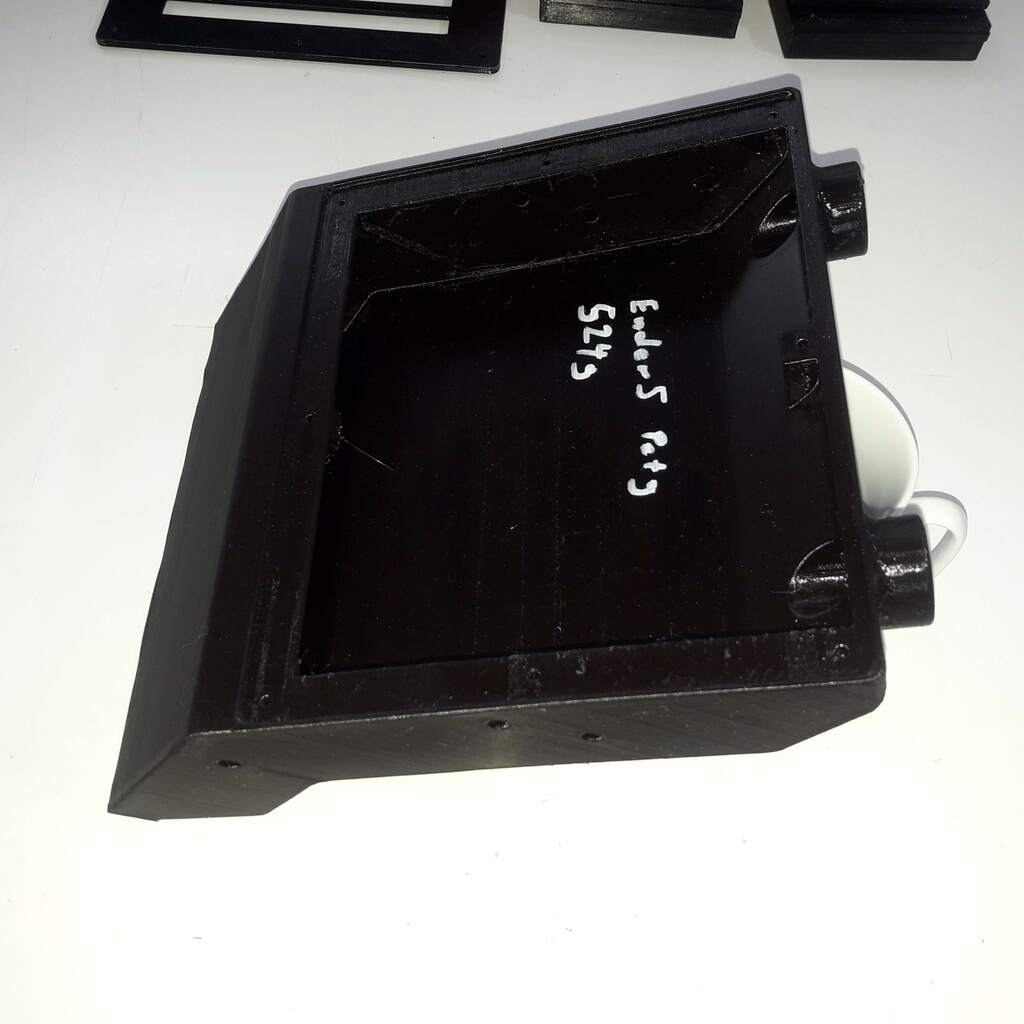

Some cleanup done.

(click to view large image)Click to close(click to view large image)Click to close

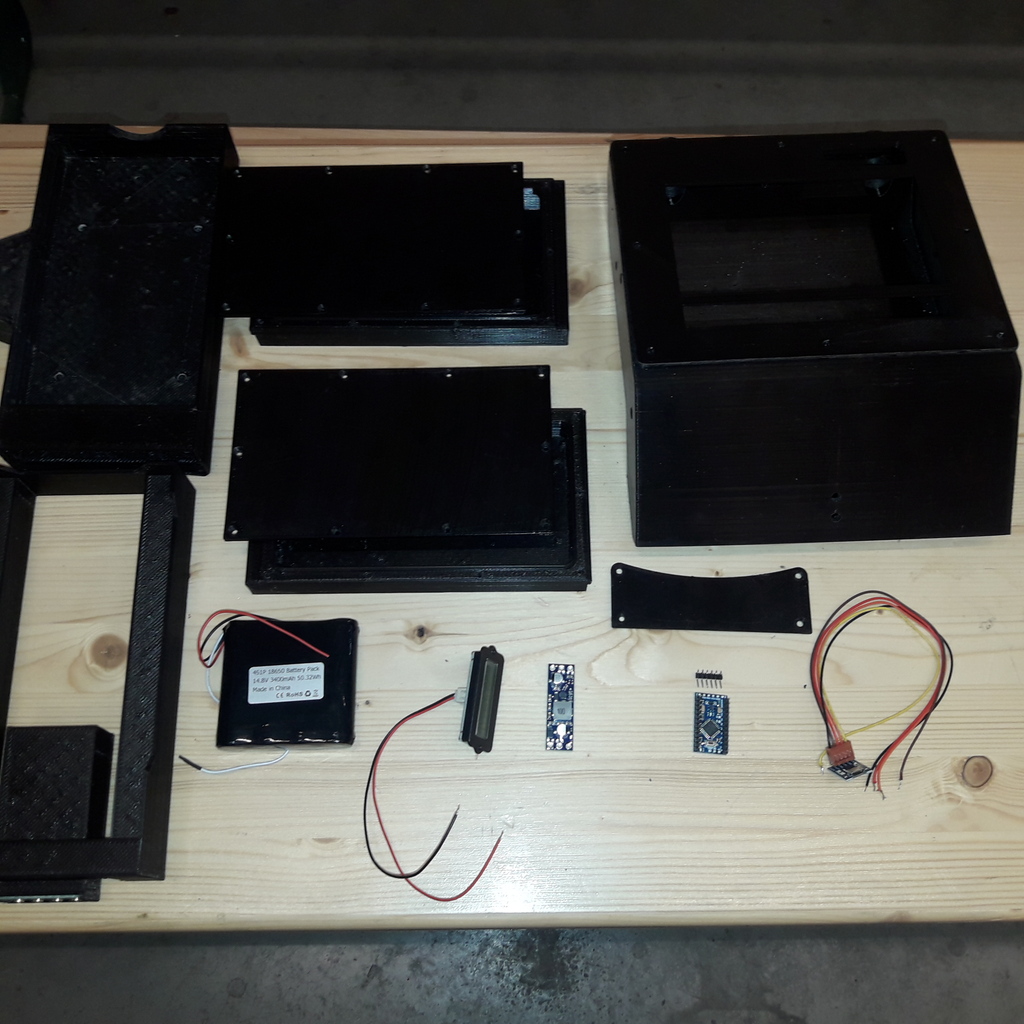

More X-Cat parts, lid, pedestal, battery housing and charging adapter.

Todo:show assembled parts

Other functional parts

Kettcar rim

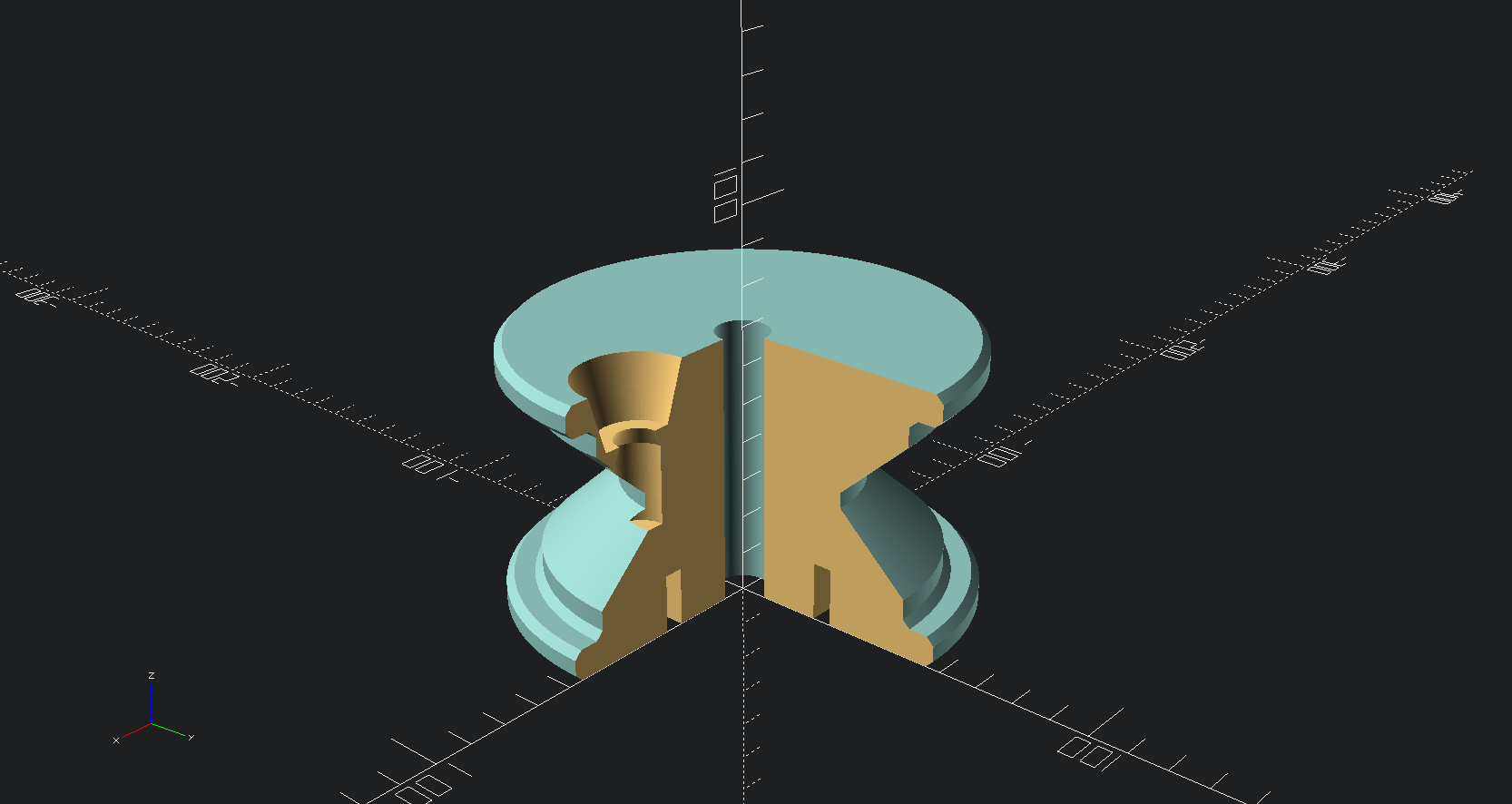

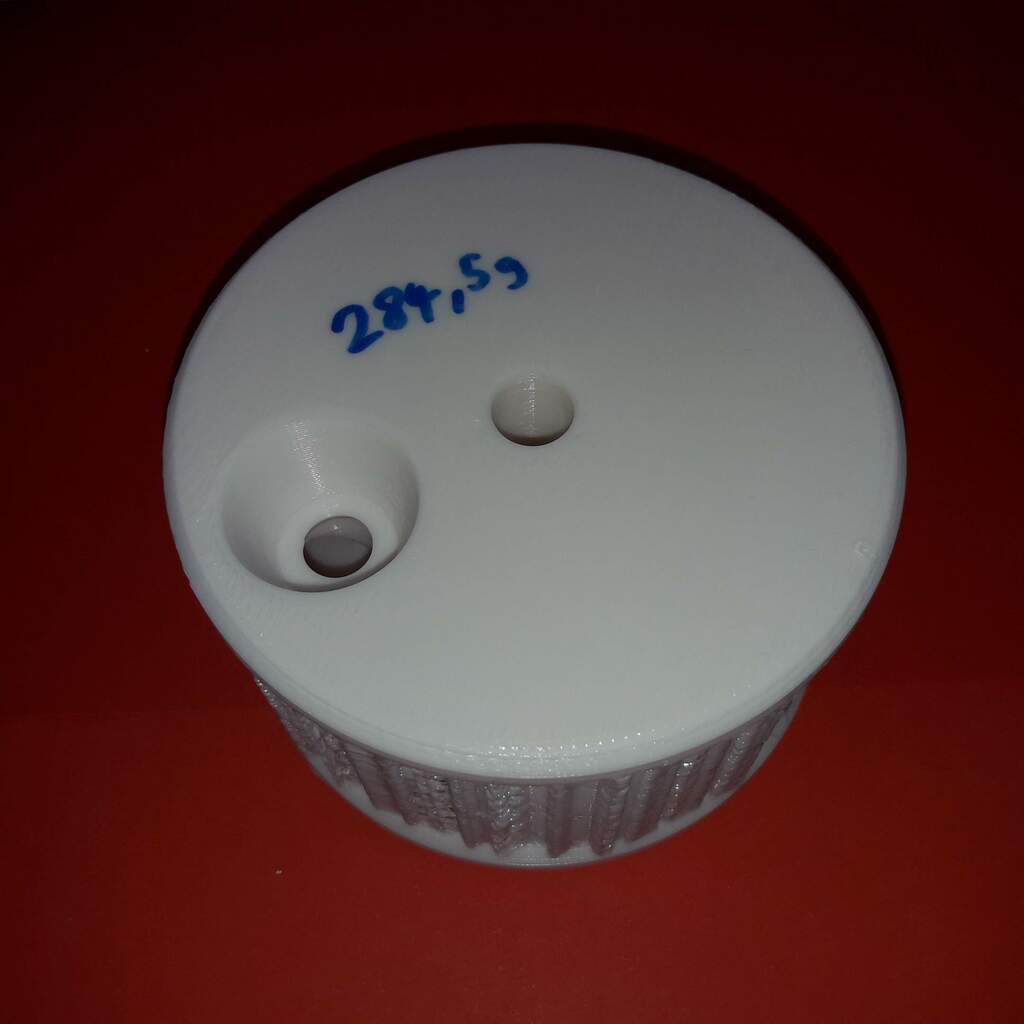

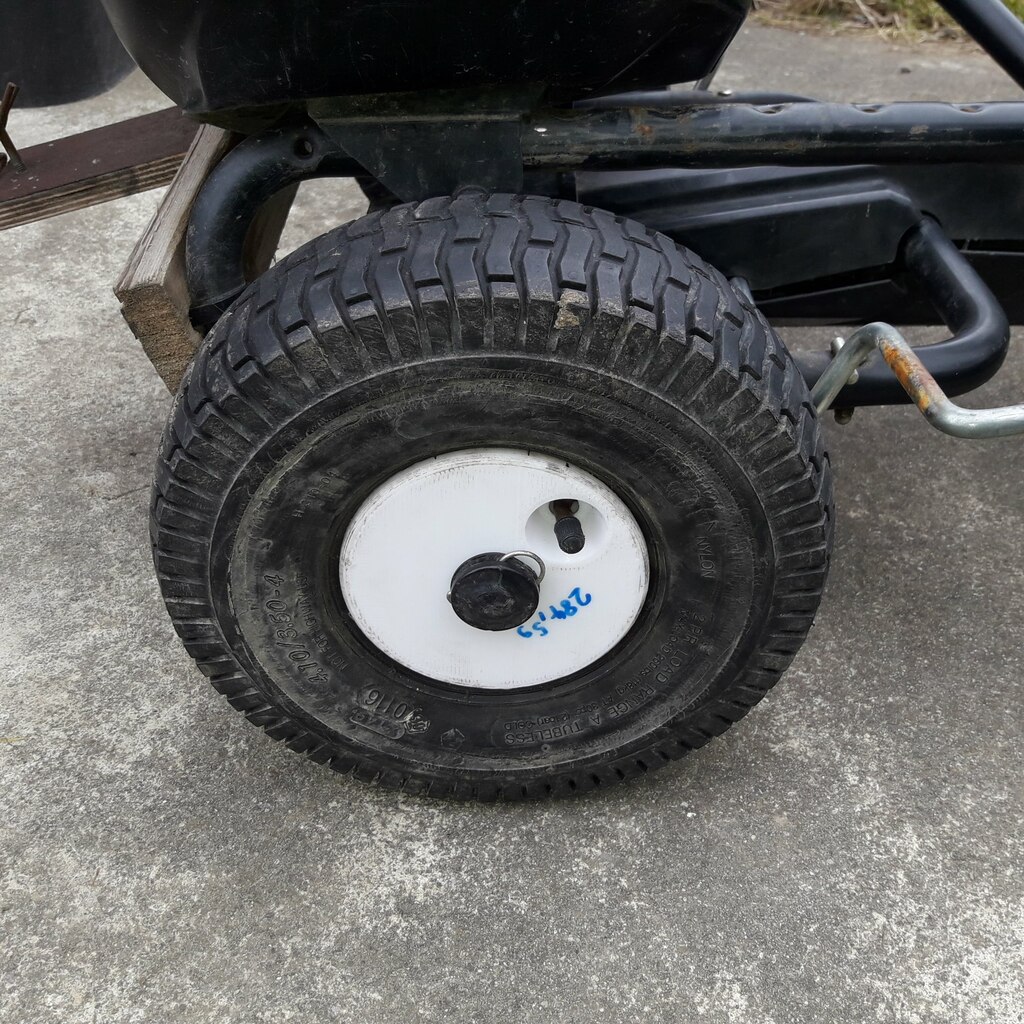

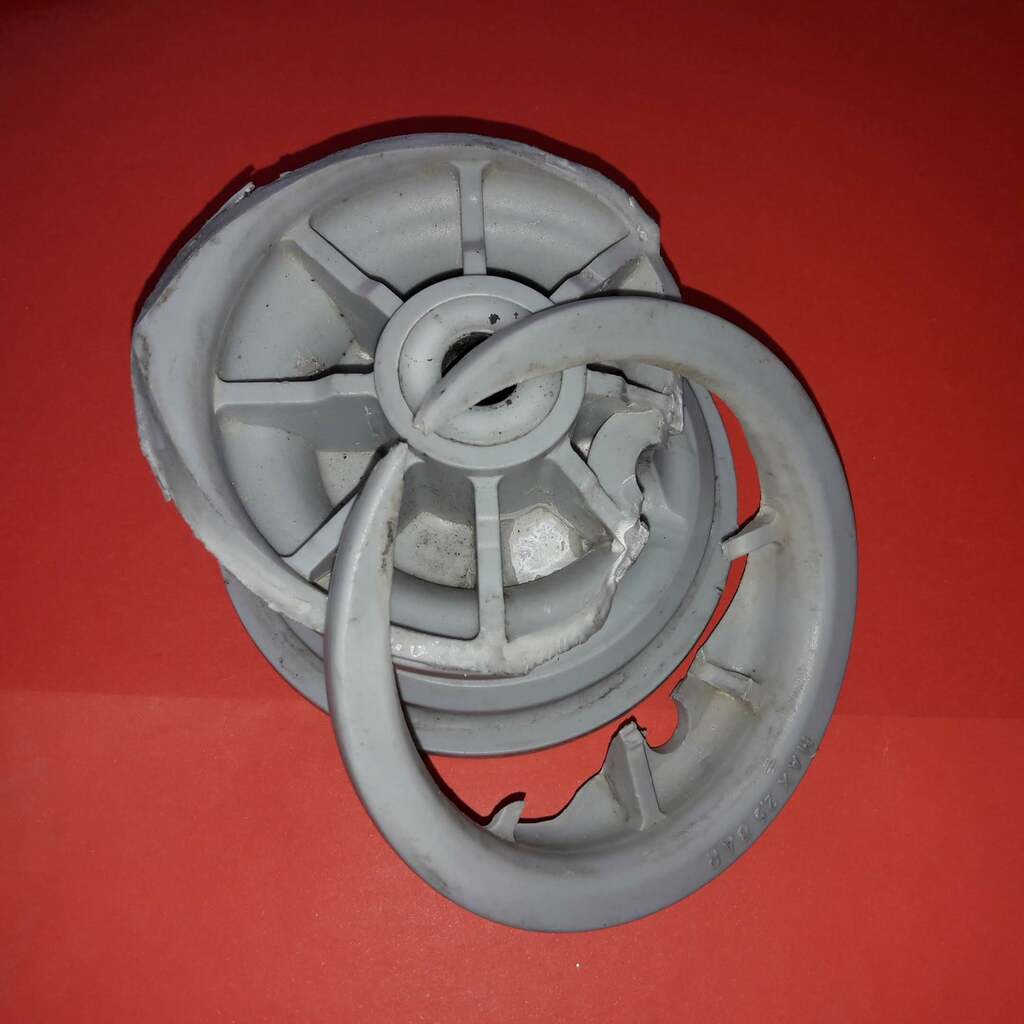

Experimental prototype fix of a broken "kettcar" (pedal car) rim.

(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close

Printing parameters:

ddPrinter:          Ender5
Slicer:             S3D
Nozzle|layer|speed: 0.8 mm | 0.4 mm | 60 mm/s
Flowrate (sliced):  19.2 mm³/s
Filament:           AW-3D PLA White
Weight (expected):  284 g (284 g)
Time (expected):    6:20 h (4:27 h)

Testing ddPrint with PrusaSlicer

First prints on the Ender5 ddPrinter using PrusaSlicer. Parts shown directly after printing it, no cleanup done.

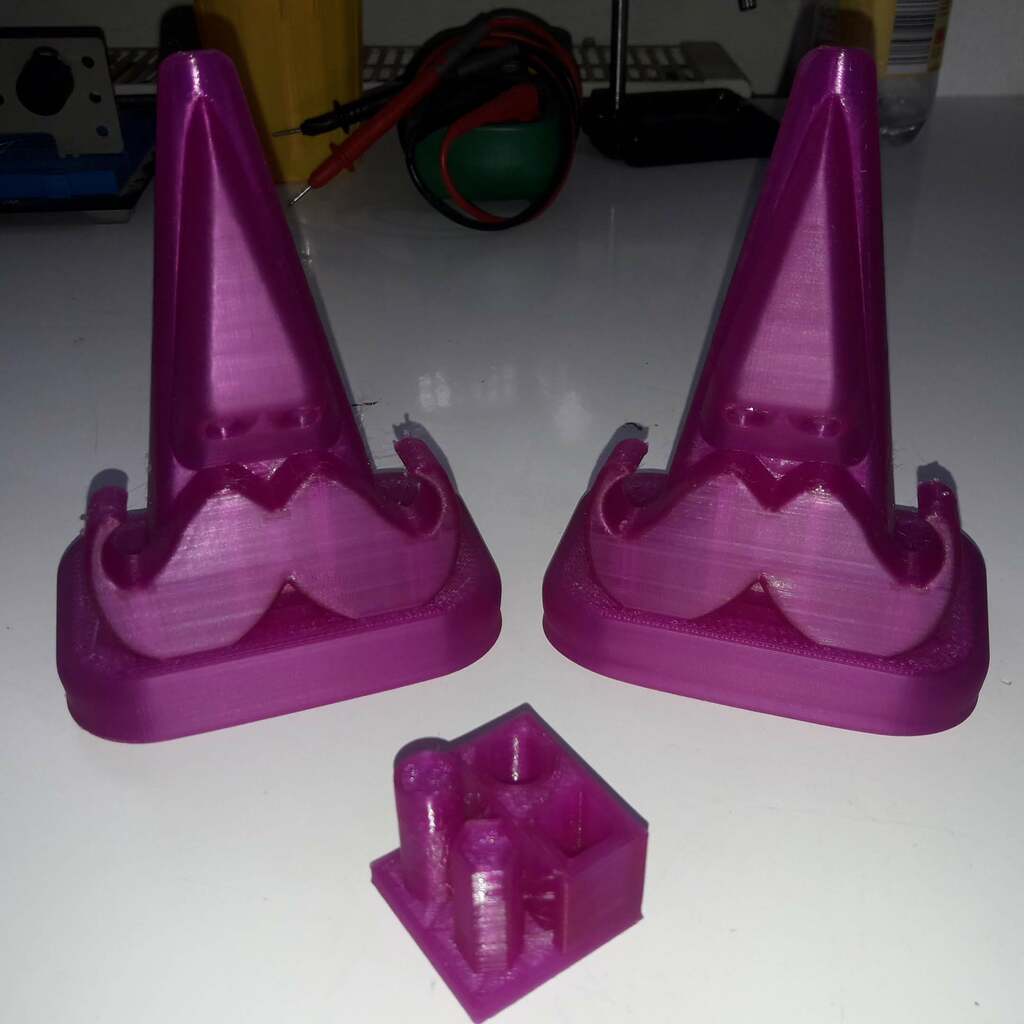

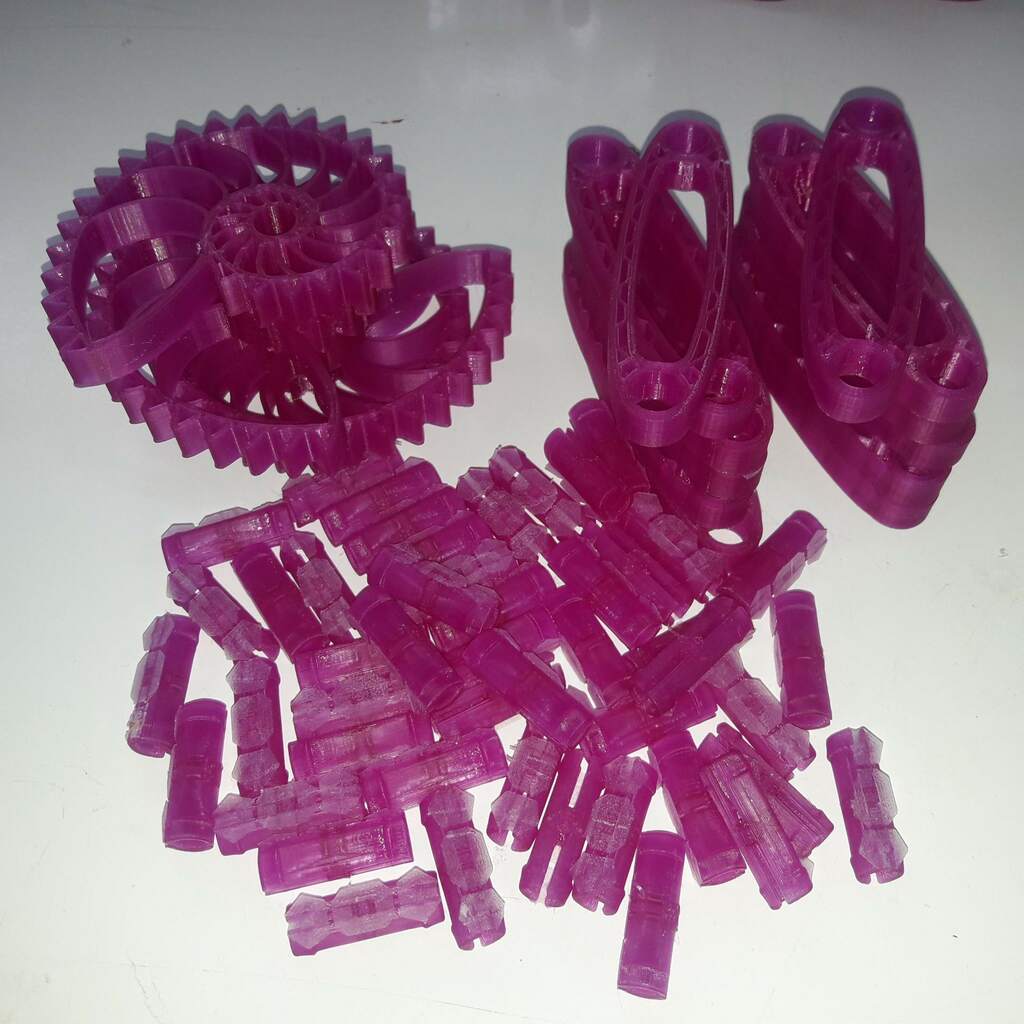

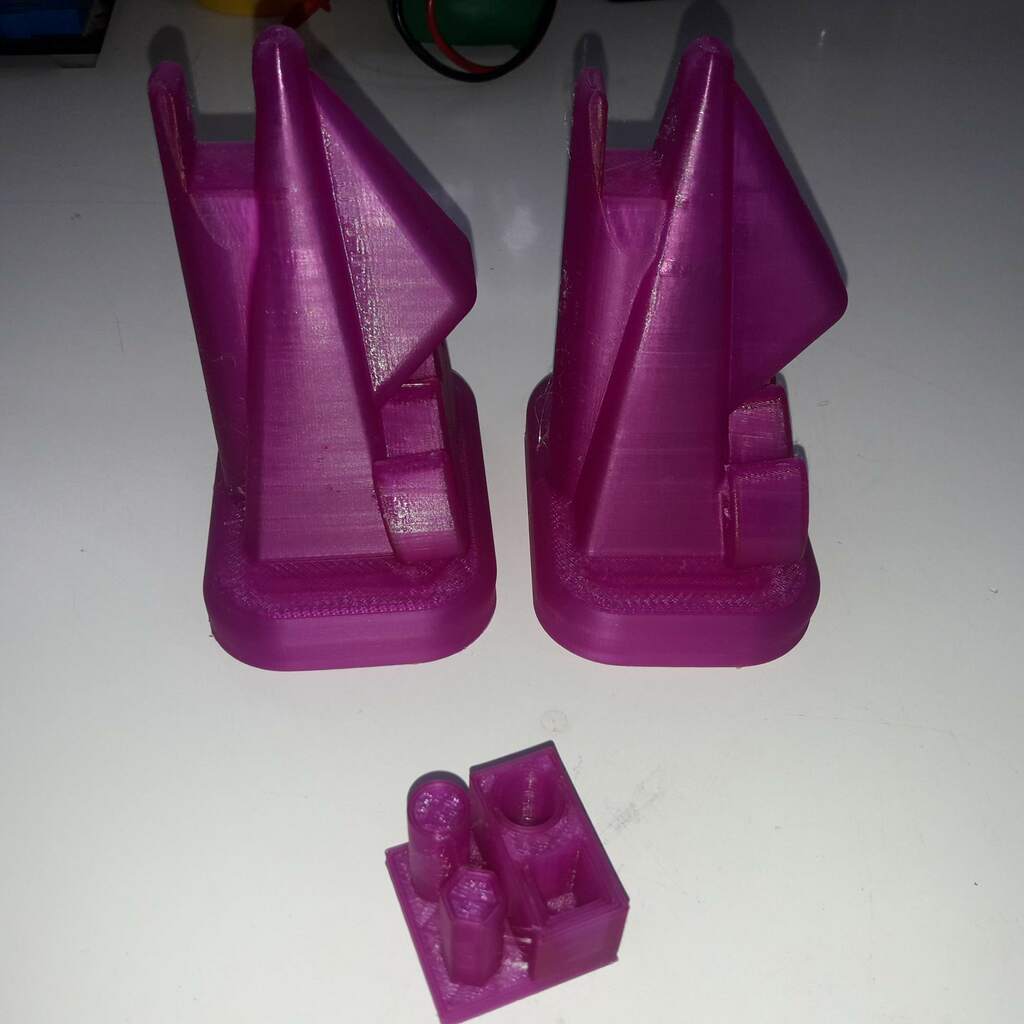

Sir Nigel Squintsworth Glasses Holder (http://www.thingiverse.com/thing:4887621) and Nautilus Gears parts (http://www.thingiverse.com/thing:27233).

(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close

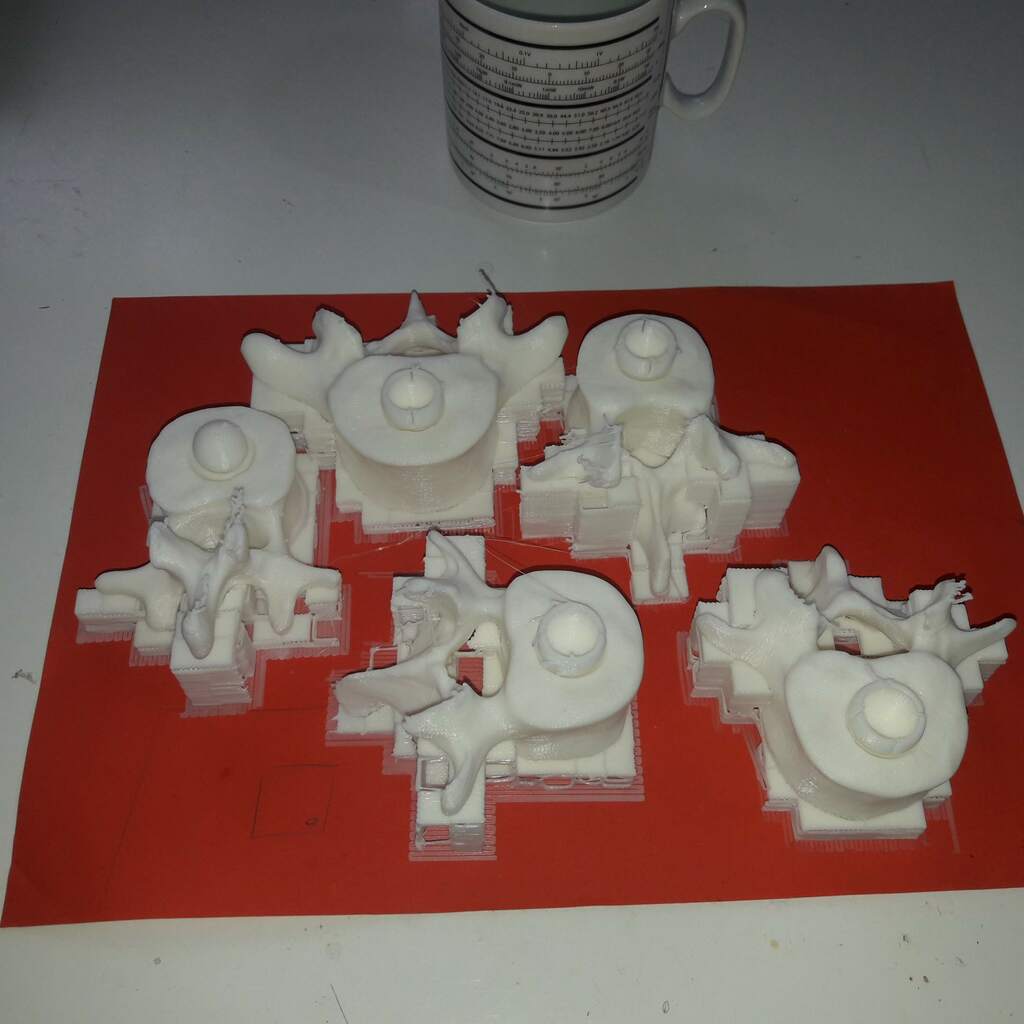

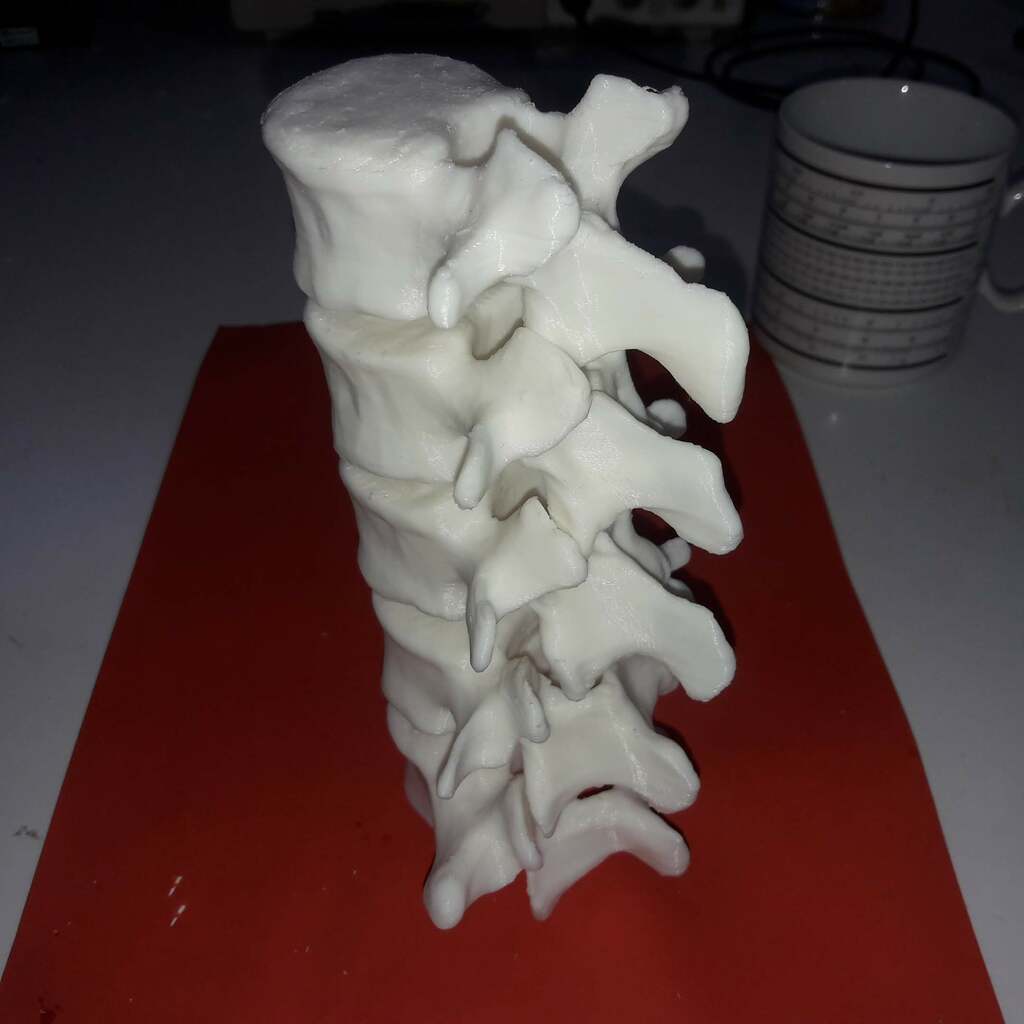

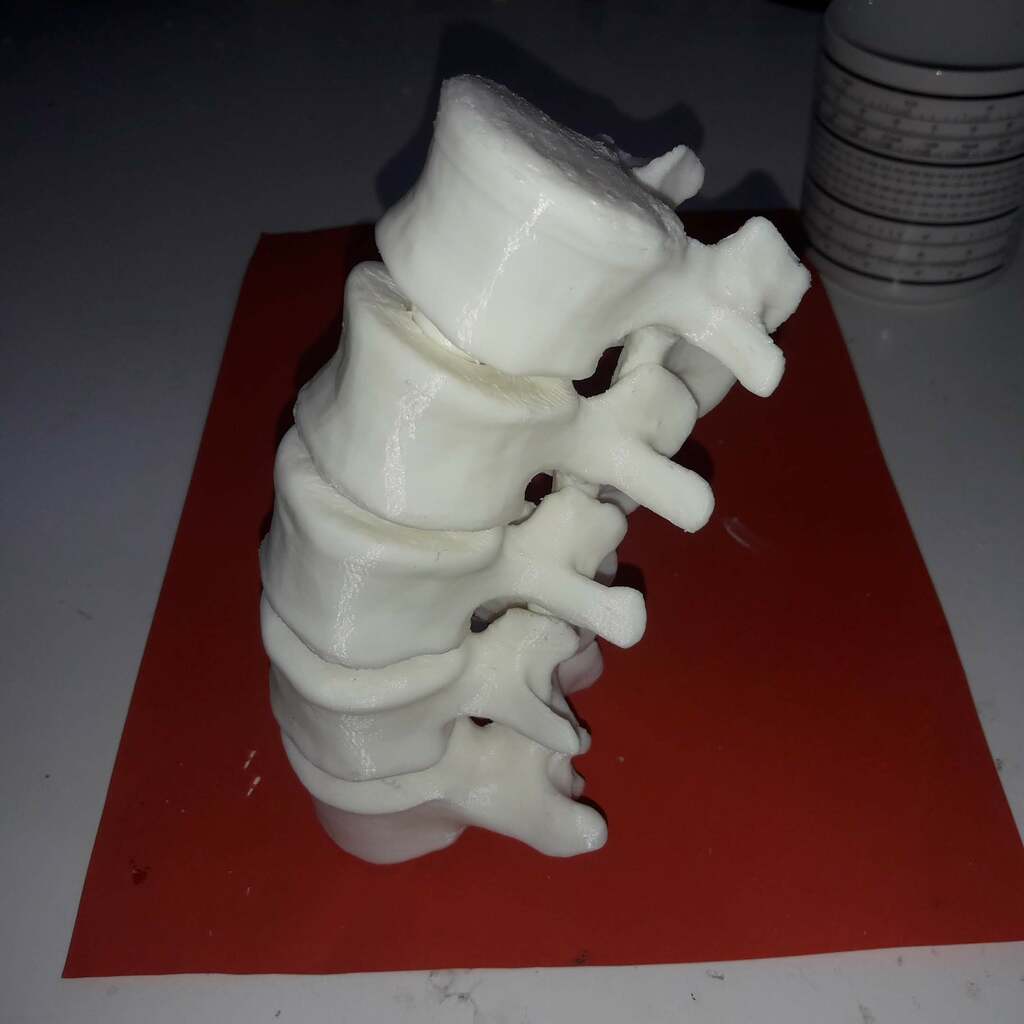

Lumbar Vertebrae, anatomic model

Model:              http://www.thingiverse.com/thing:4637241
ddPrinter:          UM2
Slicer:             PrusaSlicer
Nozzle|layer|speed: 0.8 mm | 0.2 mm | 75 mm/s
Filament:           Kaisertech PLA white
(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close

Misc parts

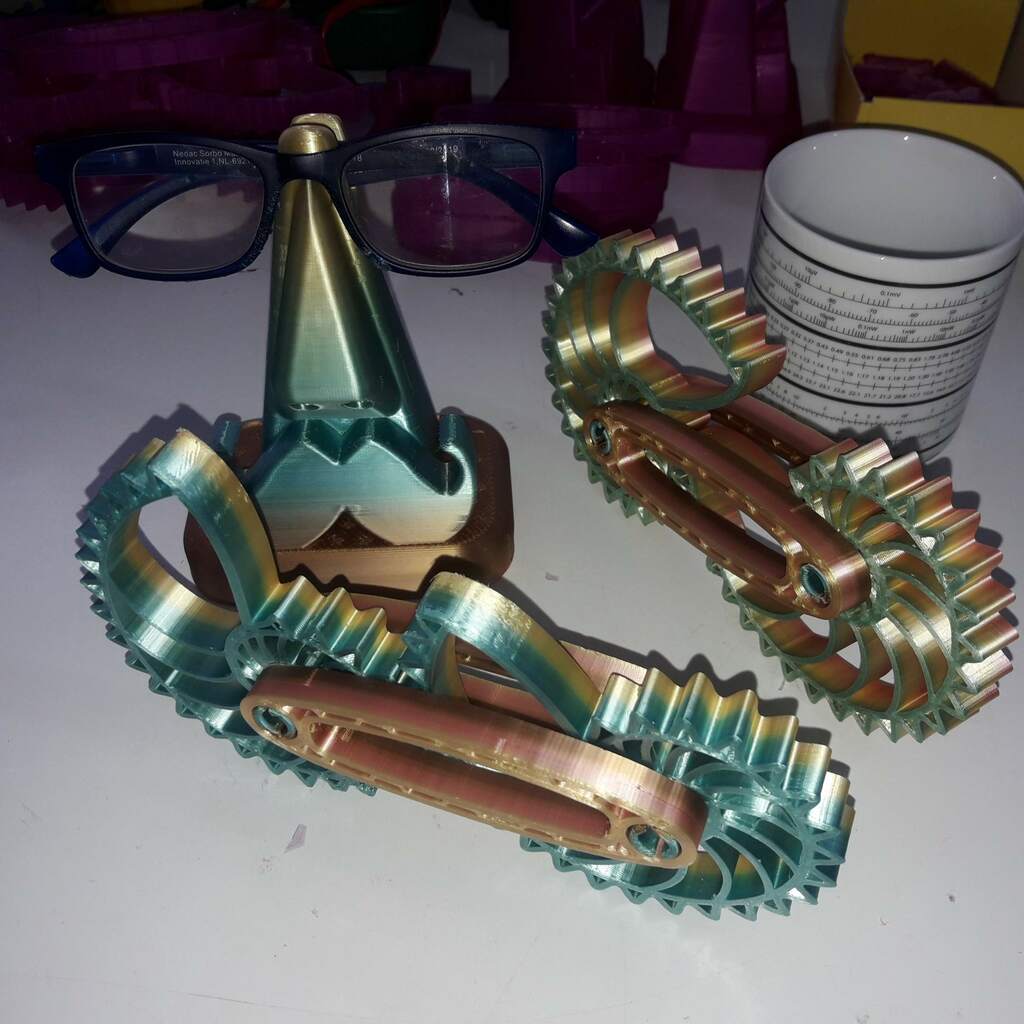

Assembled Nautilus Gears (http://www.thingiverse.com/thing:27233). For better fit to the used 0.8mm nozzle the parts are scaled to 150% in X/Y direction, height of gears and connecting bar is scaled by 312.5% to give 12.5mm respecive 10mm height. The pins are my own design.

(click to view large image)Click to close

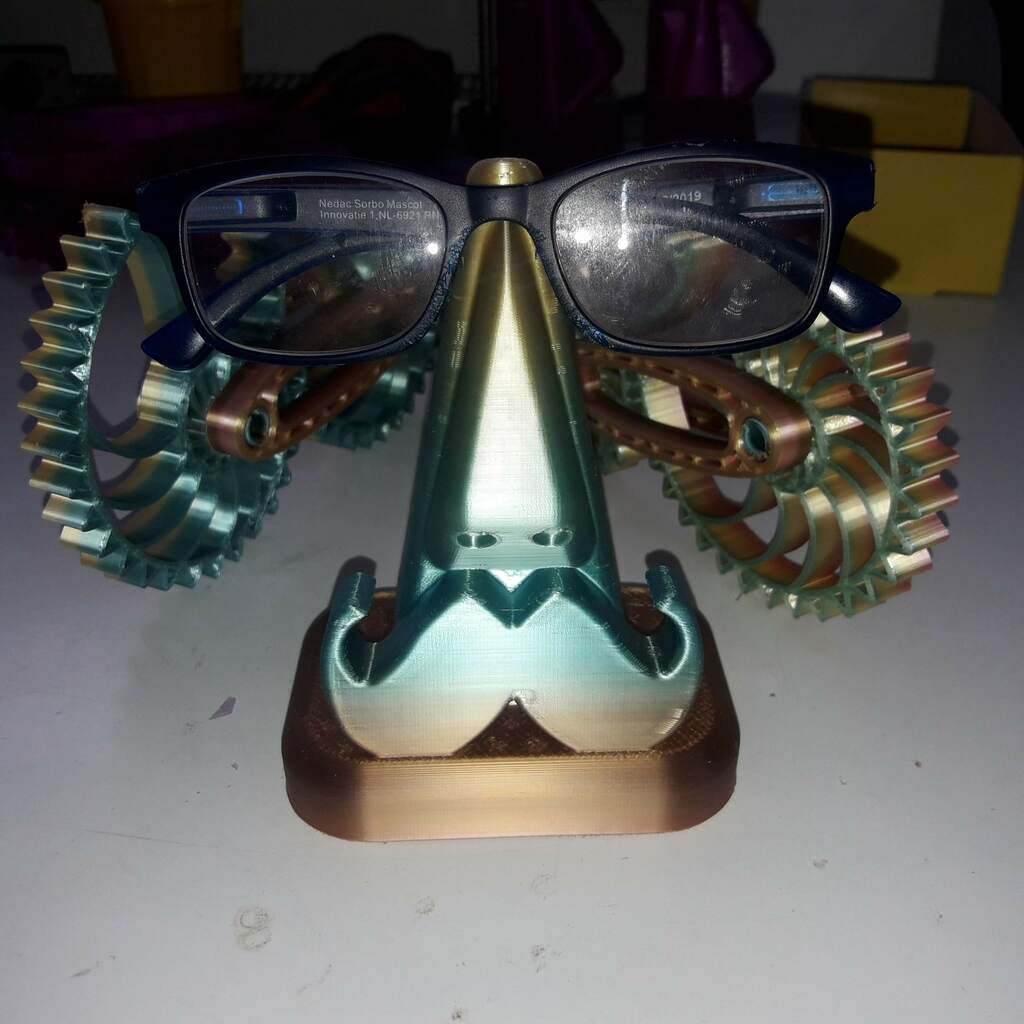

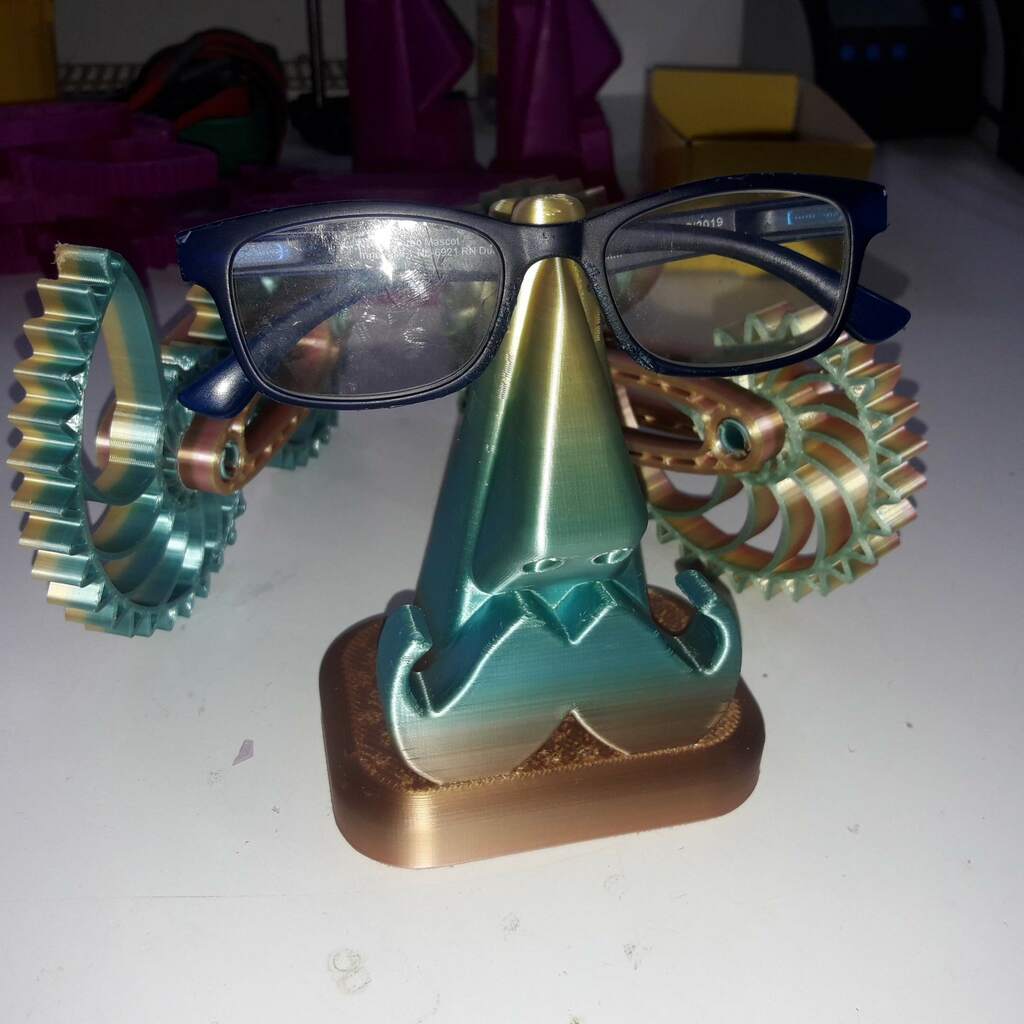

More Sir Nigel Squintsworth Glasses Holders (http://www.thingiverse.com/thing:4887621) and nautilus gears.

(click to view large image)Click to close(click to view large image)Click to close(click to view large image)Click to close

Bicycle business card (http://www.thingiverse.com/thing:1366876), printed on a Anycubic I3M ddPrinter with 0.4 nozzle, 0.2mm layerheight and 60mm/s feedrate:

(click to view large image)Click to close

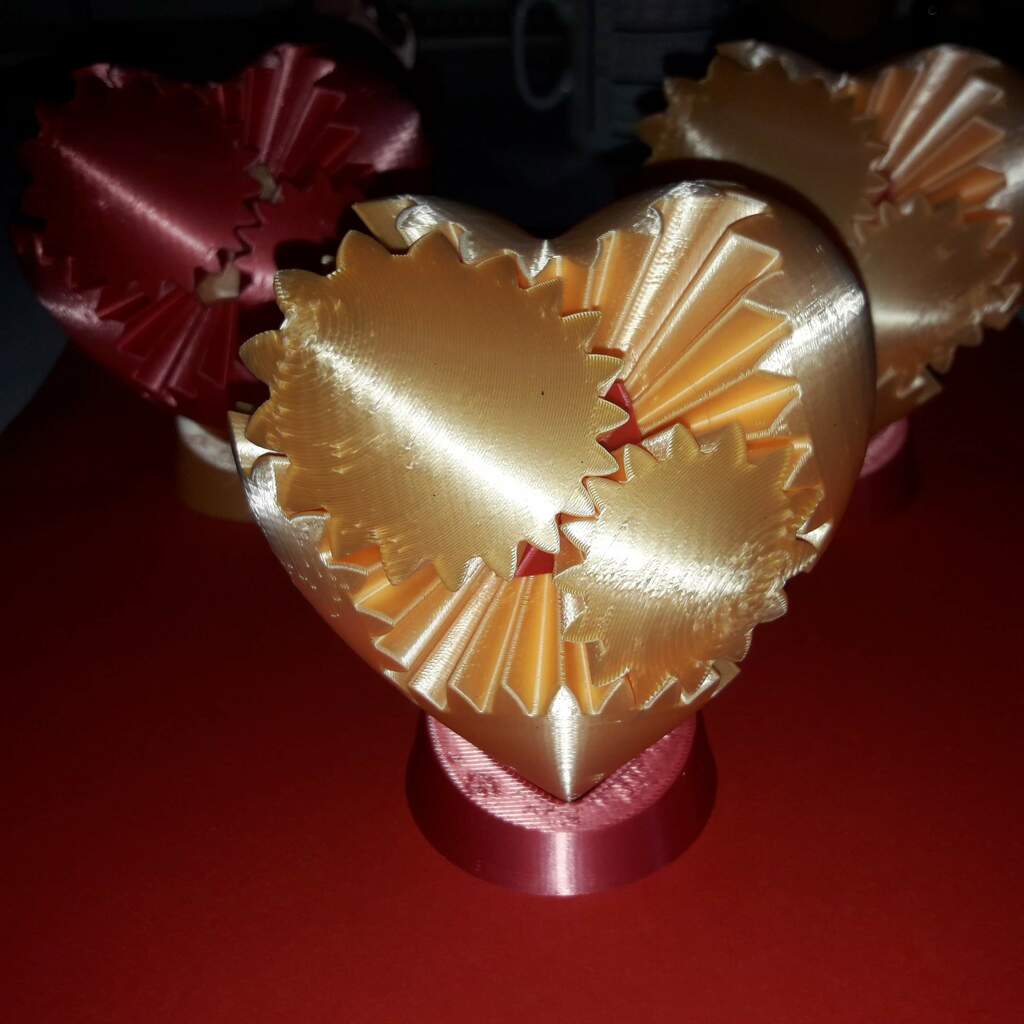

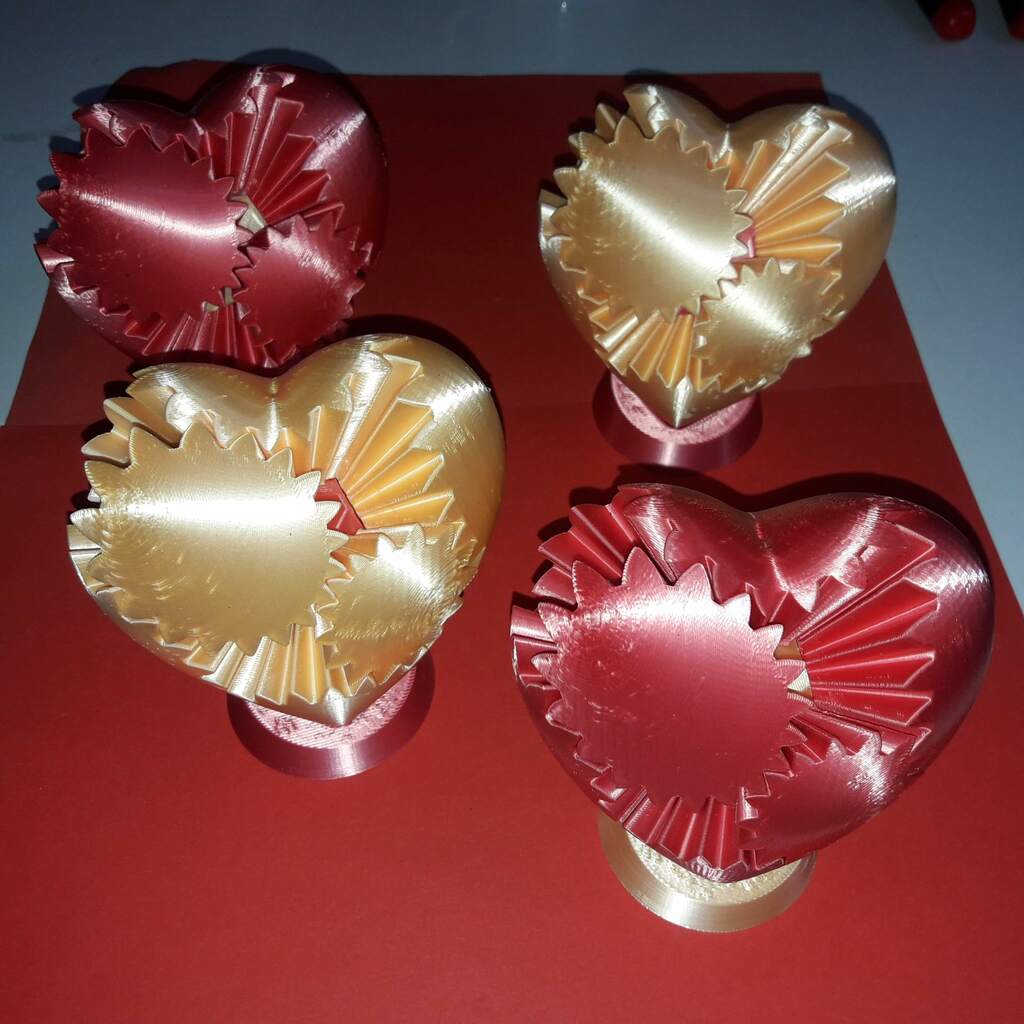

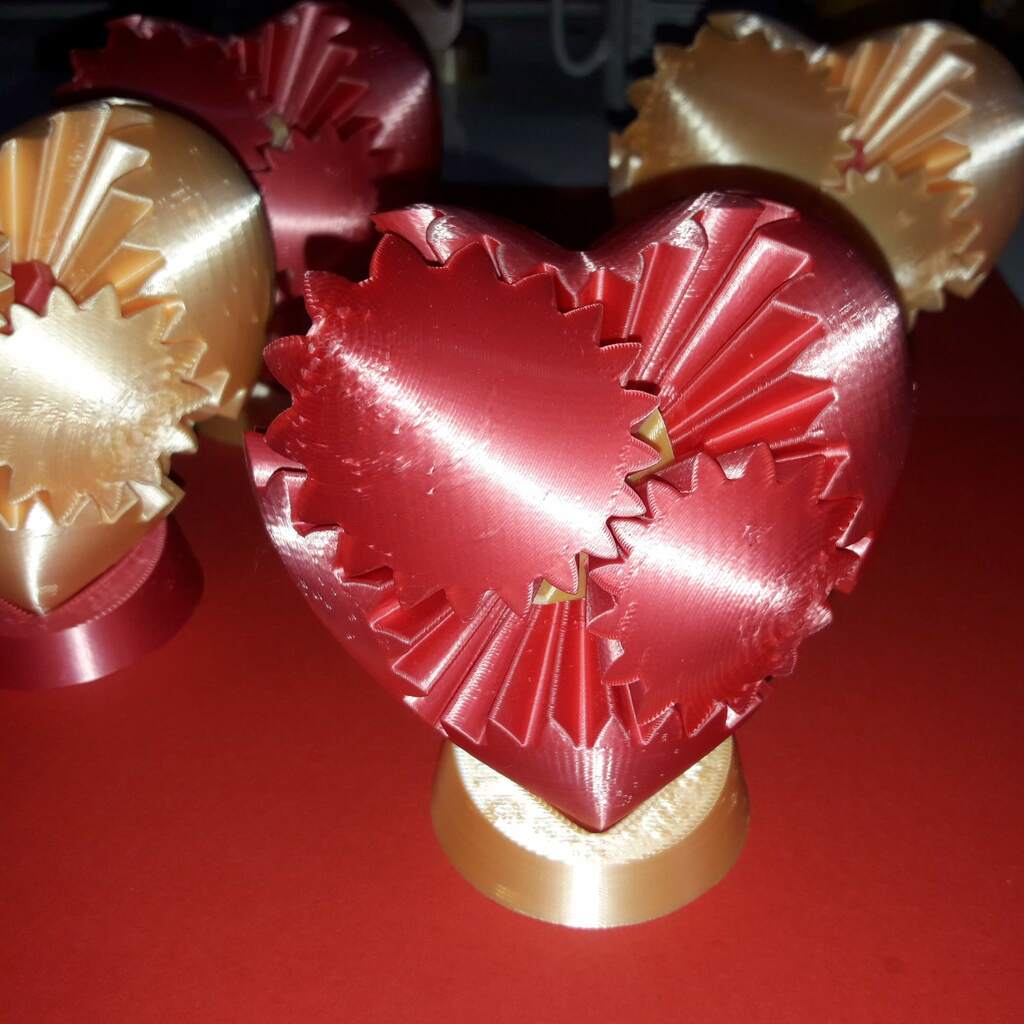

Heart-gears (http://www.thingiverse.com/thing:243278) and stand for it (http://www.prusaprinters.org/prints/8462-heart-gear-stand):
